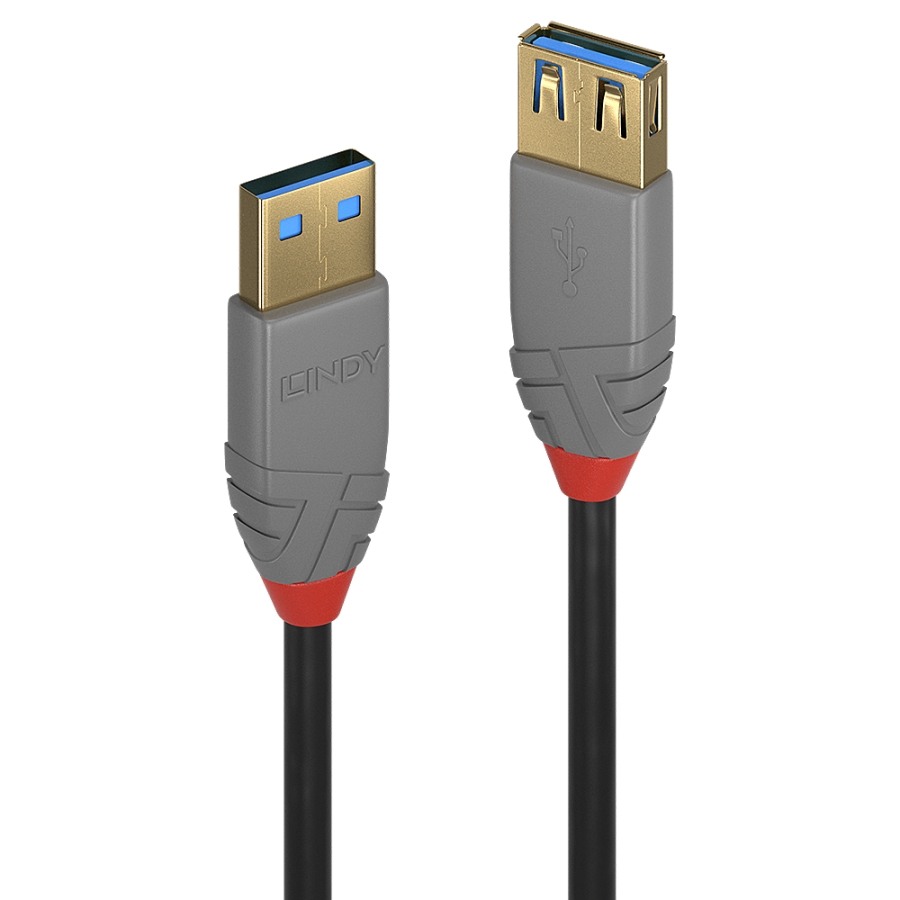

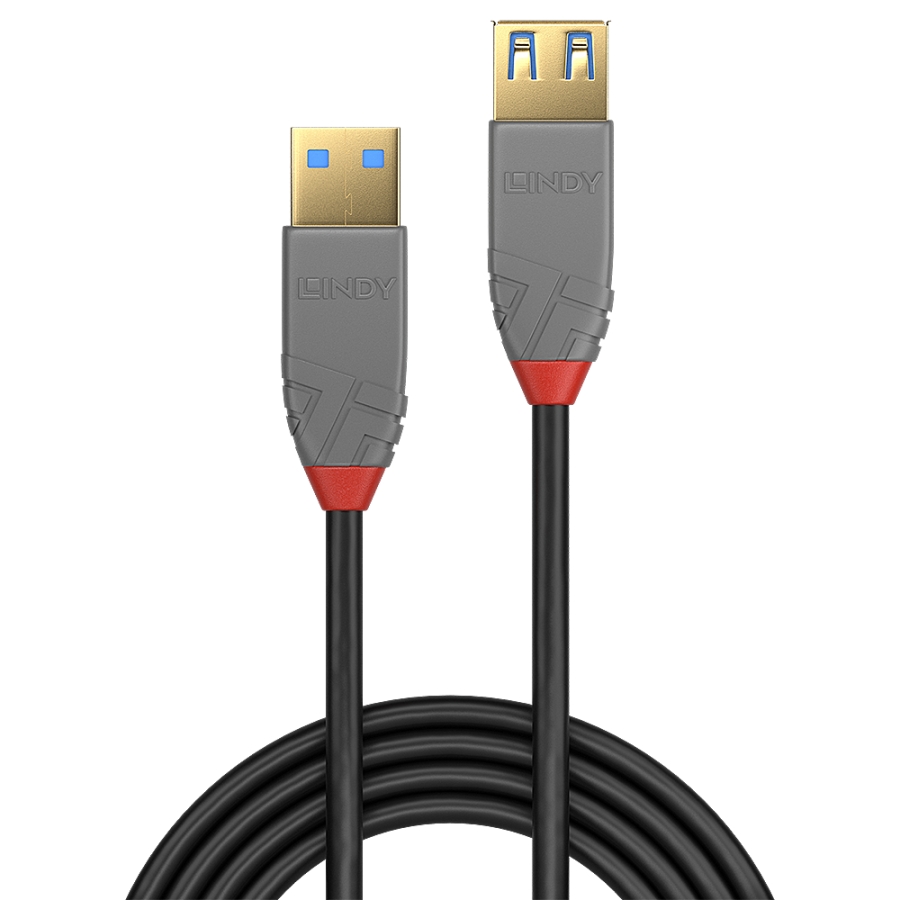

LINDY USB 3.0 Verlängerung Typ A/A Anthra Line M/F 1m

Lindy

36761

New

Professional choice USB 3.2 Gen 1 Type A to A Extension cable for commercial and high performance AV and IT installations SuperSpeed USB - supports data transfer speeds up to 5Gbps (USB 3.0, USB 3.1 Gen 1) Robust PVC housing, gold plated connectors and contacts Triple shielded cable, corrosion resistant tinned copper conductors 10 year warrantyThe Anthra Line USB 3.2 Type A to A Extension cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.Anthra Line USB 3.2 Type A to A Extension cables are available in the following lengths: 0.5m, 1m, 2m and 3m.We have adapted the naming of our USB 3 cables to follow the updated USB specification.USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5GbpsUSB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 GbpsUSB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 GbpsUSB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

Cable length1 m
USB versionUSB 3.2 Gen 1 (3.1 Gen 1)
Connector 1USB A
Connector 2USB A
Connector 1 genderMale
Connector 2 genderFemale
Product colourBlack
Connector 1 form factorStraight
Connector 2 form factorStraight
AWG wire size24/28/30
Connector materialGold
Contact materialCopper
Connector contacts platingGold
Cable jacket materialPolyvinyl chloride (PVC)
Conductor materialTinned copper
Connector shieldingY
Connector shield materialAluminium
Connector housing materialPolyvinyl chloride (PVC)
Maximum data transfer rate5000 Mbit/s
Cable typeRound cable
Nominal attenuation0.5-5m: 0.5MHz-7.5GHz
CertificationRoHS, REACH, UL
Cable diameter5.5 mm
Bend radius (min)4.8 cm
Connector 1 dimensions (WxDxH)15.5 x 35 x 7.8 mm
Connector 2 dimensions (WxDxH)17 x 35 x 9.8 mm
Quantity per pack1 pc(s)
Package typePolybag
Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)0 - 60 °C
Harmonized System (HS) code84733080

USB 2.0
