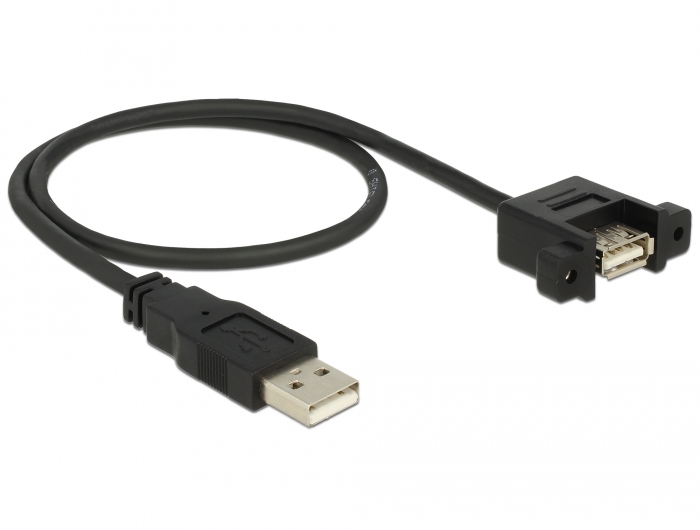

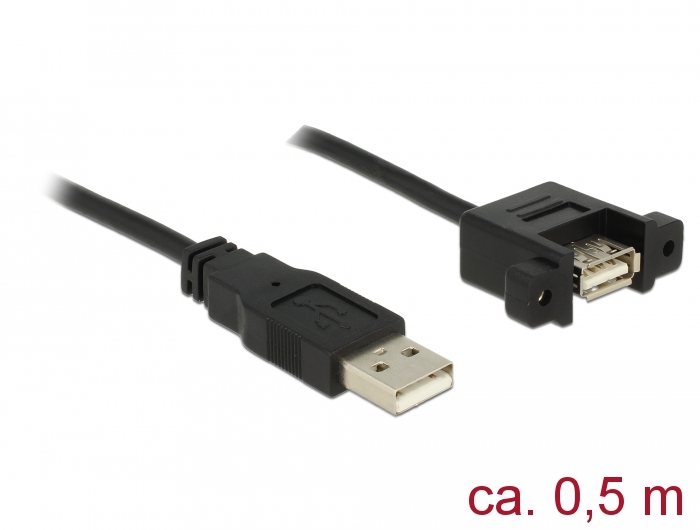

Delock Cable USB 2.0 Type-A male > USB 2.0 Type-A female panel-mount 0.5 m

Reference 85461

Condition: New

More info

This cable by Delock can be used to extend an USB connection and to connect various devices. The female port can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. In this way, it is possible to install a USB connector in an easily accessible position.

System requirements:
• A free USB interface

Specification:
• Connectors:
1 x USB 2.0 Type-A male >
1 x USB 2.0 Type-A female with nuts for installation
• Screw type: #4-40 UNC
• Mounting hole: ca. 15 x 8 mm, screw hole pitch ca. 30 mm
• Cable gauge:
28 AWG data line
24 AWG power line
• Cable diameter: ca. 4.5 mm
• Gold-plated connectors
• Data transfer rate up to 480 Mb/s
• Colour: black
• Length incl. connectors: ca. 0.5 m

Package content:
• USB panel-mount cable
• 2 screws

Data sheet:
http://www.delock.de/produkt/85461/pdf.html?sprache=en
