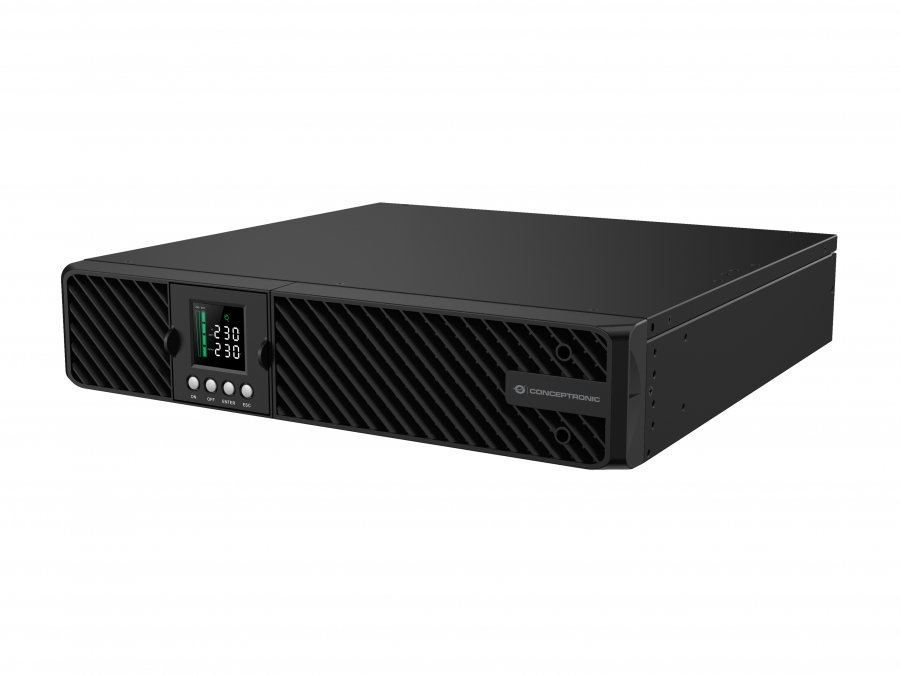

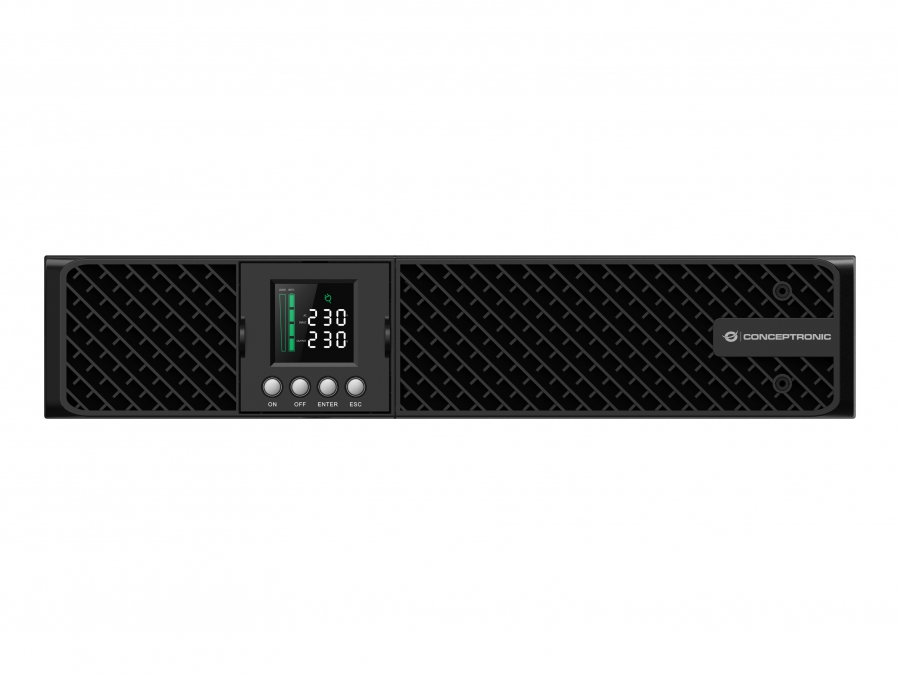

CONCEPTRONIC ZEUS USV 3000VA 3000W Online UPS,IEC,EPO Port

Conceptronic

ZEUS51E3K

New

The Conceptronic Online UPS is the ultimate solution for reliable battery backup in your home or office. With an output power factor of 1.0, this UPS ensures maximum efficiency and performance. The ECO mode feature helps save energy, making it an environmentally friendly choice. Designed for compatibility with generators, it provides continuous power even during extended outages.

The Conceptronic Online UPS includes a HID-compatible USB connection for seamless communication with your devices and an Emergency Power Off (EPO) port for added safety during emergencies. The easy battery replacement feature allows for convenient maintenance. Additionally, the outlet programmable management feature enables you to customize power distribution according to your needs.

Simple to install and operate, the Conceptronic Online UPS offers a dependable and efficient way to protect your systems from power surges and failures, ensuring the smooth operation of your critical equipment.

UPS topologyDouble-conversion (Online)
Output power capacity3 kVA
Output power3000 W
WaveformSine
Input operation voltage (min)220 V
Input operation voltage (max)240 V
Input frequency50/60 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Maximum current16 A
Output power factor1
ECO mode
Emergency Power Off (EPO)
Input current Total Harmonic Distortion (THD)5%
Audible alarm modesAlarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm
Country of originChina

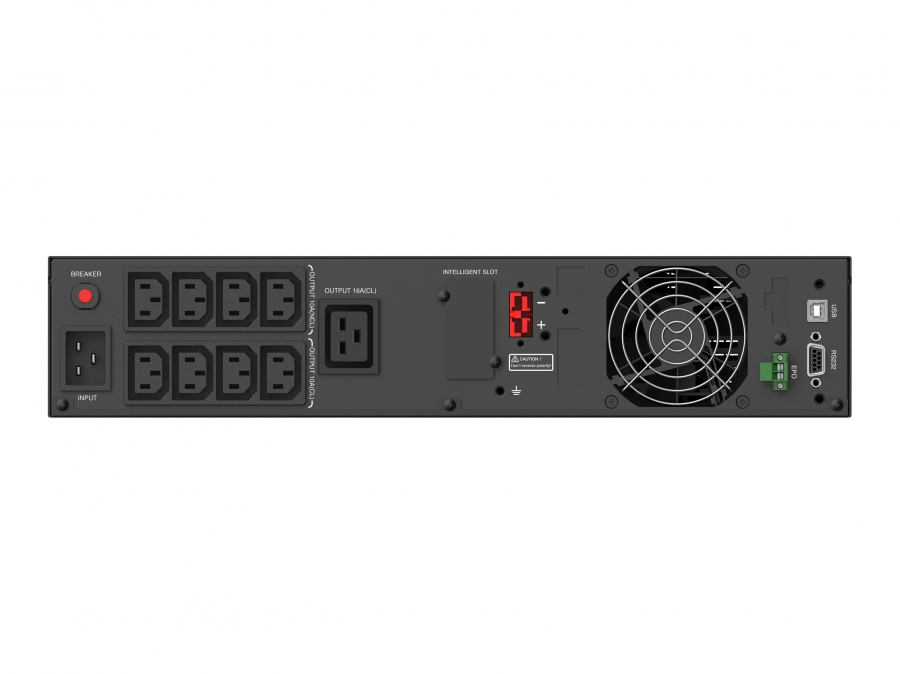

AC outlet typesC13 coupler, C19 coupler
Power plugC19 coupler
AC outlets quantity9 AC outlet(s)
USB port
USB 2.0 ports quantity1
USB port typeUSB Type-B
Serial interface
Serial interface typeRS-232
RS-232 ports1
Programmable sockets
Battery capacity9 Ah
Battery voltage12 V
Battery recharge time4 h
Battery capacity108 Wh
Form factorDesktop
Product colourBlack
Cooling typeActive
Display typeLCD
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)20 - 90%
Compliance certificatesCE, RoHS
Width438 mm
Depth610 mm
Height88 mm
Weight27.3 kg
Rack mount kit
Screws included
Cables includedInput power cable, RS-232, USB cable
Quick installation guide
Products per pallet16 pc(s)
Pallet gross length110 cm
Pallet gross width76 cm
Pallet gross height2.14 m
Harmonized System (HS) code8504402000
Master (outer) case width550 mm
Master (outer) case length746 mm
Master (outer) case height226 mm
Master (outer) case gross weight30.3 kg
Products per master (outer) case1 pc(s)

UPS lineinteractive
