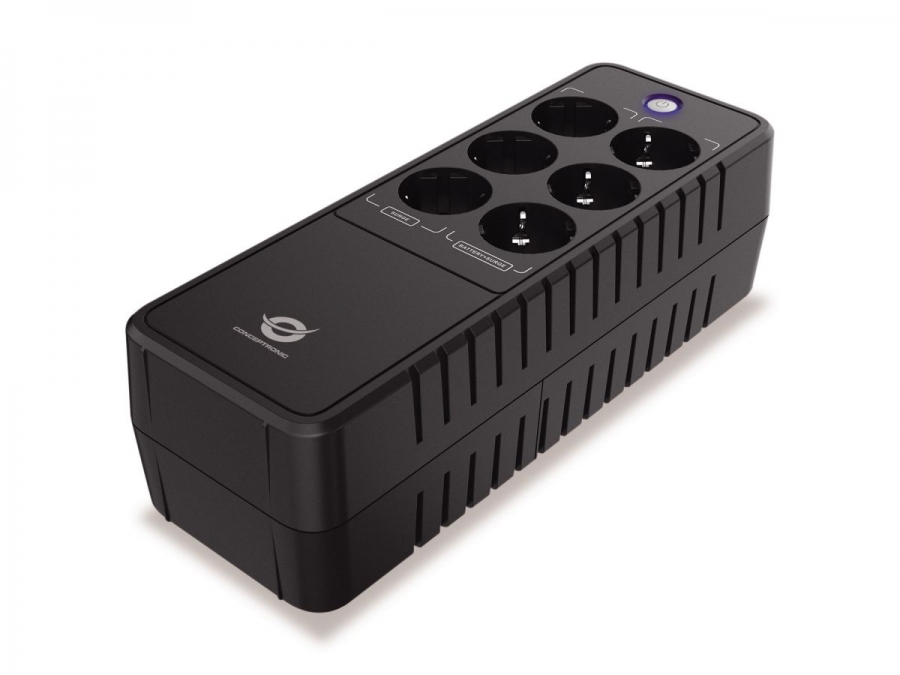

CONCEPTRONIC ZEUS USV 850VA 490W Schuko DC Start/LAN sw

Conceptronic

ZEUS09E

New

The Conceptronic UPS provides long-lasting, reliable battery backup for the home or small office. The unit is simple to install and operate, offering an easy and safe way of protecting your systems from harmful power surges and failures. The UPS comes with modem/LAN protection, a powerful microprocessor and a fault indicator which warns against dangerous wiring. Stylish, compact design makes the UPS ideal for limited office and home working spaces.

UPS topologyStandby (Offline)
Output power capacity0.85 kVA
Output power490 W
Input operation voltage (min)220 V
Input operation voltage (max)240 V
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge protection
Surge protection featuresModem, Network
Audible alarm(s)
Audible alarm modesAlarm when on battery, Fault, Low battery alarm, Overload alarm
Auto-restart
Socket circuit breaker
Country of originChina
AC outlet typesType F
AC outlets quantity6 AC outlet(s)
USB port
USB port typeUSB Type-B
Ethernet LAN (RJ-45) ports2
Battery capacity6 Ah
Battery voltage12 V
Battery recharge time(90%)8 h
Battery capacity72 Wh
Form factorCompact
Product colourBlack
LED indicators
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 90%
Sustainability certificatesCE, RoHS
Pallet net height185.5 cm
Pallet net length80 cm
Pallet net width120 cm
Compliance certificatesCE, RoHS
Width110 mm
Depth309 mm
Height90 mm
Weight2.94 kg
Package width138 mm
Package depth351 mm
Package height182 mm
Package weight3.2 kg
Quick installation guide
Harmonized System (HS) code8504402000
Master (outer) case width302 mm
Master (outer) case length370 mm
Master (outer) case height397 mm
Master (outer) case gross weight13.6 kg
Products per master (outer) case4 pc(s)
Sustainability compliance

UPS lineinteractive
