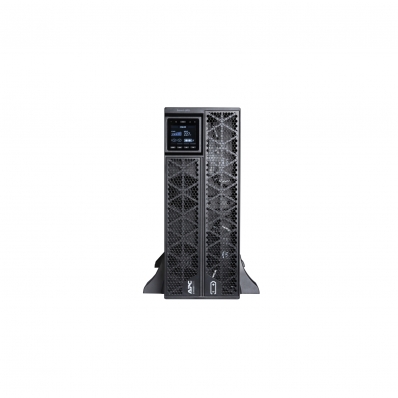

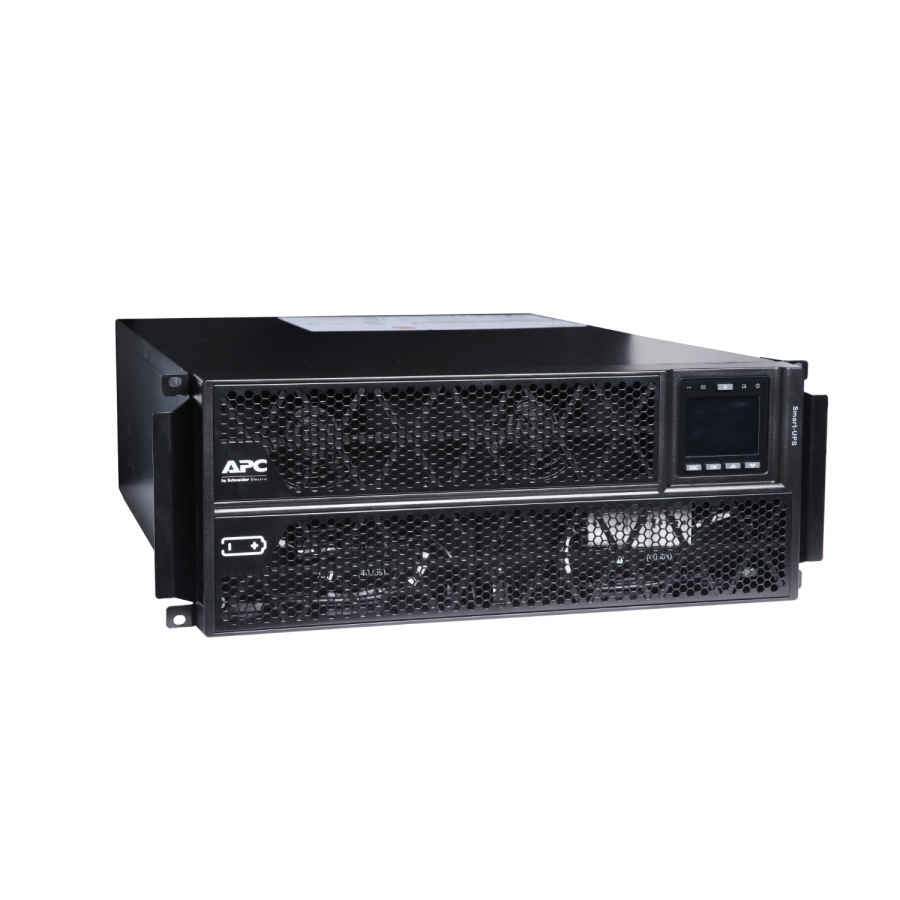

APC Smart-UPS On-Line, 5kVA/5kW, Rack/Tower, 230V (Speditionsversand)

Manufacturer: APC

Reference SRTG5KXLI

Condition: New

More info

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

LCD Status Display

Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.

Cold-start capable

Provides temporary battery power when the utility power is out.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Resettable circuit breaker

Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)

Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Input Power Factor Correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Frequency and voltage regulation

Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

SmartSlot

Customize UPS capabilities with management cards.

Network manageable

Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

Serial connectivity

Provides management of the UPS via a serial port.

InfraStruXure Manager Compatible

Enables centralized management via the APC InfraStruXure Manager.

LED status indicators

Quickly understand unit and power status with visual indicators.

UPS topology	Double-conversion (Online)
Output power capacity	5 kVA
Output power	5000 W
Waveform	Sine
Input operation voltage (min)	100 V
Input operation voltage (max)	285 V
Input frequency	40/70 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Surge energy rating	600 J
Crest factor	3:1
ECO mode	Jā
Emergency Power Off (EPO)	Jā
Output voltage Total Harmonic Distortion (THD)	2%
Noise level	55 dB
Audible alarm(s)	Jā
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm

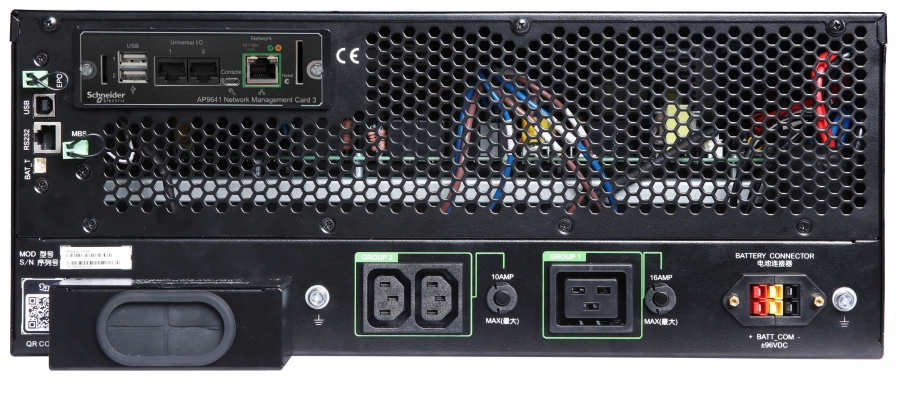

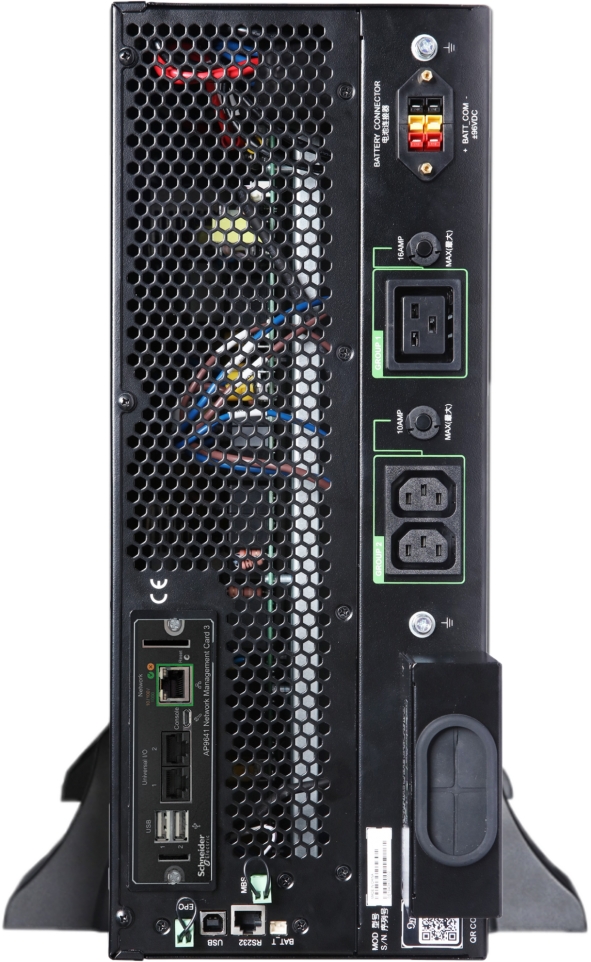

AC outlet types	C13 coupler, C19 coupler
AC outlets quantity	3 AC outlet(s)
USB port	Jā
Serial interface	Jā
Ethernet LAN (RJ-45) ports	1
Emergency Power Off (EPO) connector	Jā
SmartSlot	Jā
Battery technology	Sealed Lead Acid (VRLA)
Battery voltage	96 V
Battery life (max)	5 year(s)
Battery recharge time	4 h
Hot-swap battery	Jā
Automatic battery test	Jā
Cold start	Jā
Form factor	Compact
Product colour	Black
Rack capacity	4U
Display type	LCD
LED indicators	Jā
International Protection (IP) code	IP20
Certification	CE, EN/IEC 62040-1
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 2011 m
Non-operating altitude	0 - 15240 m
Width	440 mm
Depth	620 mm
Height	178 mm
Weight	51.9 kg
Package width	590 mm
Package depth	790 mm
Package height	275 mm
Package weight	59 kg
