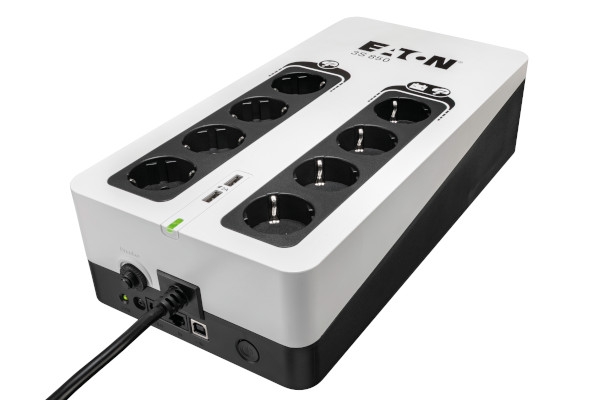

Eaton USV 3S850D 850VA 510W USB

Eaton USV 3S850D 850VA 510W USB

EATON CORPORATION

3S850D

New

Add to Compare
Eaton 3S provides power and surge protection for desktop computers, wireless networks, gaming consoles, and other critical equipment in your home or business.

UPS topologyStandby (Offline)
Output power capacity0.85 kVA
Output power510 W
Input operation voltage (min)161 V
Input operation voltage (max)284 V
Input frequency50/60 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency50 Hz
Maximum current10 A
Surge protectionY
Power protection featuresOverdischarge
AC outlets quantity8 AC outlet(s)
USB portY
USB 2.0 ports quantity2
Battery technologySealed Lead Acid (VRLA)
Hot-swap batteryN
Automatic battery testY
Cold startY
Product colourBlack, White
Cable length1.5 m
LED indicatorsY
SafetyIEC 62040-1; IEC 62040-2 C2; IEC 62040-3; IEC 62040-4; IEC 61643-11
CertificationCE/EAC/Ukr/Cm/CB report
Operating temperature (T-T)0 - 40 °C
Operating altitude0 - 3000 m
Width335 mm
Depth170 mm
Height86 mm
Weight4.3 kg
Harmonized System (HS) code85078000
Nominal input voltage230 V
