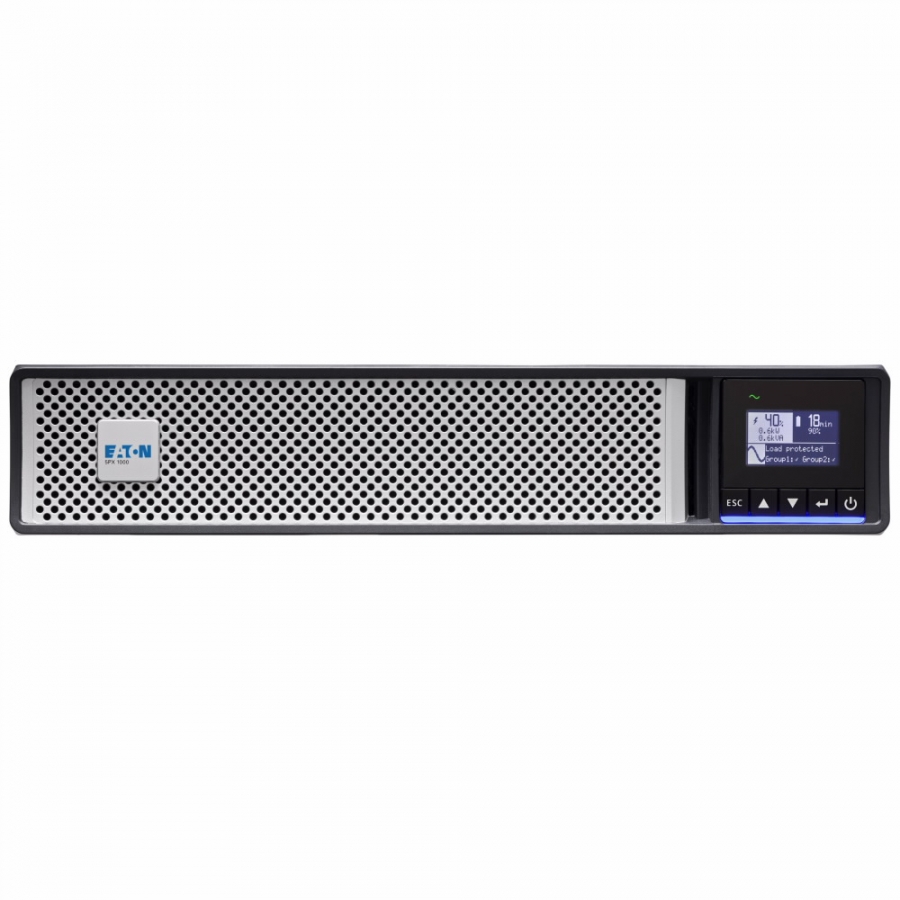

Eaton USV 5PX1000iRT2U 1000VA USB/RS232 Netpack G2

EATON CORPORATION

5PX1000IRT2UG2

New

Exceptional efficiency, manageability and energy metering capabilities for IT managers

Performance and efficiency

- Eaton 5PX Gen 2 provides Unity power factor (W=VA) capability. With 11% more power than other UPS it can protect more servers.
- Energy Star 2.0 certified, 5PX Gen2 offers best-in-class efficiency performance to reduceenergy consumption and cooling costs.
- When operating in battery mode the 5PX provides a high-quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
- Each 5PX Gen2 battery configuration provides the best size /runtime ratio.

Management and Cybersecurity

- Innovative graphical LCD display brings all operating information at first sight. It also enhances commissioning and configuration capabilities.
- 5PX Gen2 Netpack models are delivered with Eaton Gigabit network management card, which provides Dual cybersecurity certifications (UL 2900-1 & IEC 62443-4-2) and enables connection to Eaton Cyber Secured Monitoring solutions.
- Together with 5PX Gen2, Eaton Gigabit network management card allows both remote UPS settings and remote firmware upgrade to ensure easy deployment (fleet management) and reduced maintenance cost.
- 5PX Gen2 meters energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software.
- Eaton’s Intelligent Power Software seamlessly integrates with leading virtualization environments and cloud orchestration tools.

Availability and flexibility

- 5PX Gen2 2200VA & 3000VA are available in RT2U format (optimized for rack mounting) or RT3U (for tower installation or short-depth racks). Pedestals and rail kits are included with all models.
- 5PX Gen2 load segment control enables prioritized shutdowns of non-essential equipment to maximize battery runtime for critical devices (2 groups).
- Eaton ABM® battery management technology uses a three stage charging technique that optimizes battery health and extends lifetime by up to 50%.
- Up to 4 external hot-swappable battery modules can be added for longer power availability.

UPS topologyLine-Interactive
Output power capacity1000 kVA
Output power1000 W
WaveformPure sine
Input operation voltage (min)160 V
Input operation voltage (max)294 V
Input frequency47/70 Hz
Noise level40 dB
Power protection featuresOverdischarge
AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity8 AC outlet(s)
USB portY
Serial interfaceY
Serial interface typeRS-232
Serial ports quantity1
Cabling technology10/100/1000Base-T(X)
Typical backup time at half load17 min
Hot-swap batteryY
Automatic battery testY
Form factorRackmount/Tower
Product colourBlack
Rack capacity2U
Display typeLCD
LED indicatorsY
SafetyIEC/EN 62040-1, UL1778, CSA22.2
CertificationIEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm
Operating temperature (T-T)0 - 40 °C
Sustainability complianceY
Sustainability certificatesCE, ENERGY STAR
Width438 mm
Depth448 mm
Height85.5 mm
Weight19.6 kg
Management card includedY
Harmonized System (HS) code85078000
Nominal output voltage230 V

UPS lineinteractive
