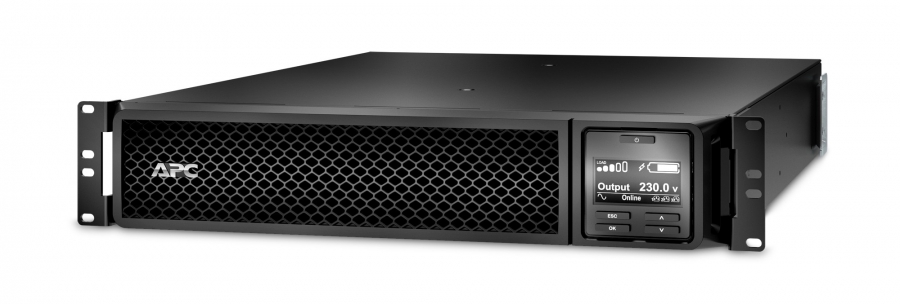

APC USV SRT2200RMXLI SMARTUPS RT 2200VA RM 230V (Speditionsversand)

Manufacturer: APC

Reference SRT2200RMXLI

Condition: New

More info

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.High density, double-conversion on-line power protection with scalable runtime.Includes : CD with software , Country-specific detachable power cord , Documentation CD , Installation guide , Rack Mounting brackets , Rack mounting hardware , Rack Mounting support rails , USB cable , Warranty card

UPS topology	Double-conversion (Online)
Output power capacity	2.2 kVA
Output power	1980 W
Waveform	Sine
Input operation voltage (min)	100 V
Input operation voltage (max)	275 V
Input frequency	40/70 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency regulation	50/60 Hz
Surge energy rating	340 J
Efficiency	92.2%
Crest factor	3:1
Emergency Power Off (EPO)	Y
Noise level	55 dB
Surge protection	Y
Audible alarm(s)	Y
Web-based management	Y
Auto-restart	Y
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
AC outlets quantity	10 AC outlet(s)
Number of output IEC jumpers	2
USB port	Y
Serial interface	Y
Serial interface type	RJ-45
SmartSlot	Y
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	367 VAh
Number of batteries supported	1

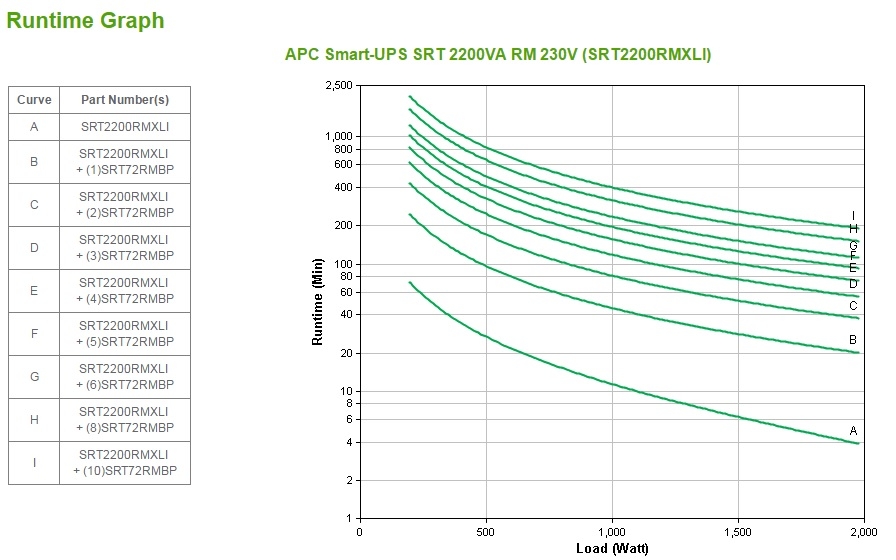

Typical backup time at full load	3.9 min
Typical backup time at half load	11.6 min
Battery life (max)	5 year(s)
Battery recharge time	3 h
Hot-swap battery	Y
Automatic battery test	Y
Cold start	Y
Form factor	Rackmount/Tower
Product colour	Black
Rack capacity	2U
Cable length	2.44 m
Display type	LCD
LED indicators	Y
International Protection (IP) code	IP20
Certification	CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Sustainability certificates	ENERGY STAR, Green Premium, RoHS
Width	432 mm
Depth	584 mm
Height	85 mm
Weight	25 kg
Package width	599 mm
Package depth	810 mm
Package height	246 mm
Package weight	34 kg
Rack mount kit	Y
Bracket	Y
Cables included	USB cable
Quick installation guide	Y
Software CD	Y
Products per pallet	12 pc(s)
Harmonized System (HS) code	85078000
Nominal output voltage	230 V
Nominal input voltage	230 V
