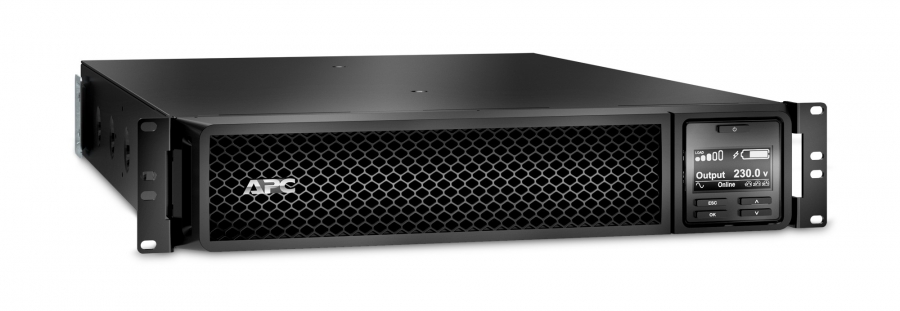

APC USV SRT3000RMXLI SMARTUPS SRT 3000VA RM 230V (Speditionsversand)

Manufacturer: APC

Reference SRT3000RMXLI

Condition: New

More info

A versatile UPS developed for unstable power conditions worldwideSmart-UPS On-Line provides high-density, double-conversion, online power protection for servers, voice/data networks, medical labs, and light industrial applications. The Smart-UPS On-Line is capable of supporting loads from 2.2 kVA – 10 kVA in a rack/tower convertible chassis. The 6 kVA, 8 kVA, and 10 kVA models feature unity output power factor enabling them to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands. The included PowerChute Network Shutdown management software provides unattended graceful shutdown of network operating systems. Models 5 kVA to 10 kVA include an integrated network management card for remote management. The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

UPS topology	Double-conversion (Online)
Output power capacity	3 kVA
Output power	2700 W
Waveform	Sine
Input operation voltage (min)	100 V
Input operation voltage (max)	275 V
Input frequency	40 - 70 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Automatic Voltage Regulation (AVR)	Y
Surge energy rating	340 J
Efficiency	92%
Crest factor	3:1
Emergency Power Off (EPO)	Y
Output voltage Total Harmonic Distortion (THD)	2%
Noise level	55 dB
Surge protection	Y
Power protection features	Overload
Audible alarm(s)	Y
Audible alarm modes	Battery replacement
Auto-restart	Y

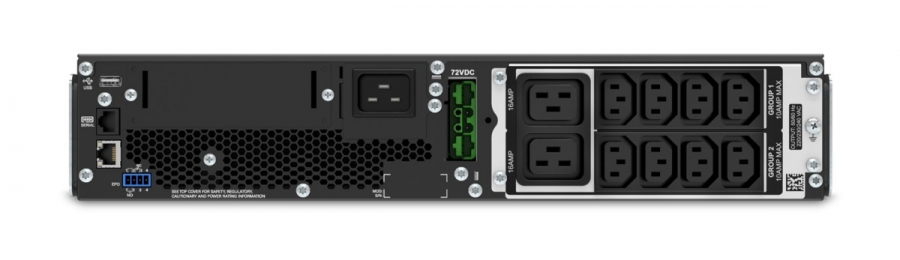

AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
USB port	Y
Serial interface	Y
Serial interface type	RJ-45
SmartSlot	Y
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	505 VAh

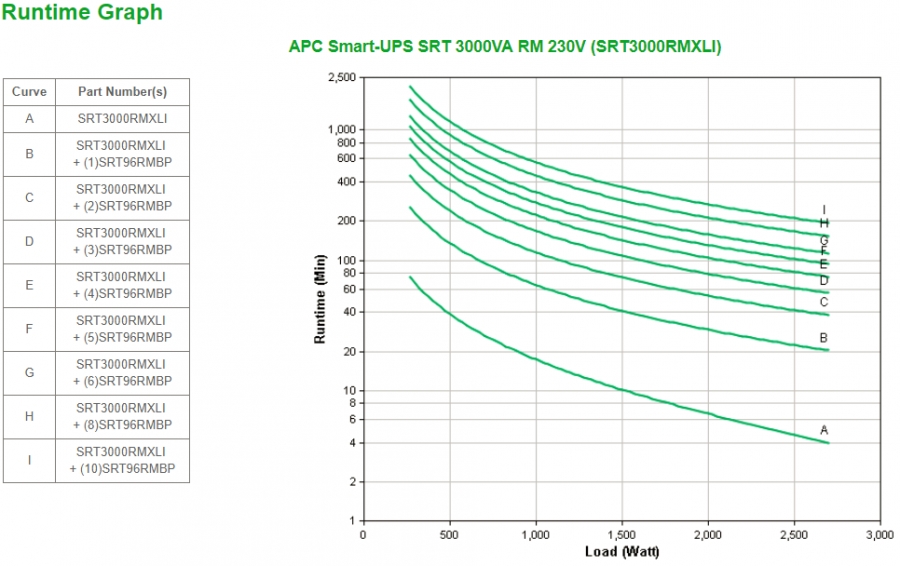

Typical backup time at full load	4 min
Typical backup time at half load	11.8 min
Battery life (max)	5 year(s)
Battery recharge time	3 h
Hot-swap battery	Y
Automatic battery test	Y
Cold start	Y
Form factor	Rackmount
Product colour	Black
Rack capacity	2U
Cable length	2.44 m
Display type	LCD
LED indicators	Battery replacement
International Protection (IP) code	IP20
Certification	CE, VDE, RCM, EAC, IEC/EN 62040-1, IEC/EN 62040-2, UL-1778, FCC 15 A, CSA
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Sustainability certificates	Green Premium, RoHS
Width	432 mm
Depth	635 mm
Height	85 mm
Weight	31.3 kg
Package width	599 mm
Package depth	871 mm
Package height	246 mm
Package weight	39.3 kg
Quick installation guide	Y
Products per pallet	6 pc(s)
Harmonized System (HS) code	85078000
Output voltage	230 V
