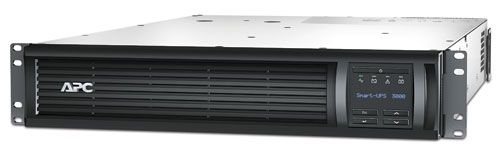

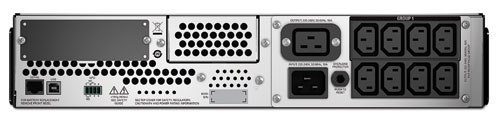

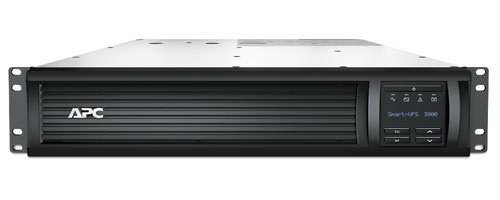

APC USV SMT3000RMI2U SMARTUPS 3000VA LCD RM 2U 230V (Speditionsversand)

Manufacturer: APC

Reference SMT3000RMI2U

Condition: New

More info

Intuitive LCD interface Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.Predictive replace battery date Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.Energy meter Provides actual kilowatt hours of usage for energy conscious users.Outlet group control Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).Sequenced shutdown and restart Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).Audible alarms Provide notification of changing flywheel conditionsInfraStruXure Central compatible Enables centralized management via APC InfraStruXure® Central.Pure sine wave output on battery Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.Single switched outlet group Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.Wide input voltage range Designed for harsh electrical environments to save battery life.Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenanceHigh online efficiency Reduces utlility costs, generates less heat.LED Indicators Provide easy-to-read status of your utility power conditions, UPS and battery.Cold-start capable Provides temporary battery power when the utility power is out.Serial Connectivity Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replacedDisconnected battery notification Warns when a battery is not available to provide backup power.Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced.Automatic restart of loads after UPS shutdown Automatically starts up the connected equipment upon the return of utility power.Adjustable voltage-transfer points Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.Adjustable voltage sensitivity Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.Audible alarms Provides notification of changing utility power and UPS conditions.User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)USB connectivity Provides management of the UPS via a USB port (not available on all models).Serial Connectivity Provides management of the UPS via a serial port.Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature.Boost and Trim Automatic Voltage Regulation (AVR) Gives higher application availability by correcting low and high voltage conditions without using the battery.Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.Network manageable Provides remote management of the UPS over the network.Frequency and voltage regulation Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.Adjustable voltage sensitivity Provides the ability to adapt the Power Conditioner for optimal performance in specific power environments or generator applications.Predicitive failure notification Provides early-warning fault analysis ensuring proactive component replacement.

UPS topology	Line-Interactive
Waveform	Sine
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Input frequency	50/60 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Automatic Voltage Regulation (AVR)	Y
Surge energy rating	320 J
Hold time (min)	4 ms
Hold time (max)	8 ms
Efficiency	99%
Noise level	55 dB
Audible alarm(s)	Y
Auto-restart	Y
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
AC outlets quantity	9 AC outlet(s)
Number of output IEC jumpers	3
USB port	Y
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	547 VAh
Typical backup time at full load	3.2 min
Typical backup time at half load	11.5 min
Battery life (max)	5 year(s)
Battery recharge time	3 h
Hot-swap battery	Y
Automatic battery test	Y
Cold start	Y
Form factor	Rackmount
Product colour	Black
Rack capacity	2U
Cable length	2 m
LED indicators	Status
Certification	CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE, REACH, PEP, EOLI
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Sustainability certificates	RoHS, ENERGY STAR
Width	480 mm
Depth	683 mm
Height	86 mm
Weight	44.3 kg
Package width	600 mm
Package depth	980 mm
Package height	254 mm
Package weight	51.7 kg
Rack mount kit	Y
Cables included	RS-232, USB cable
Quick installation guide	Y
Software CD	Y
Products per pallet	8 pc(s)
Nominal output voltage	230 V
Nominal input voltage	230 V
