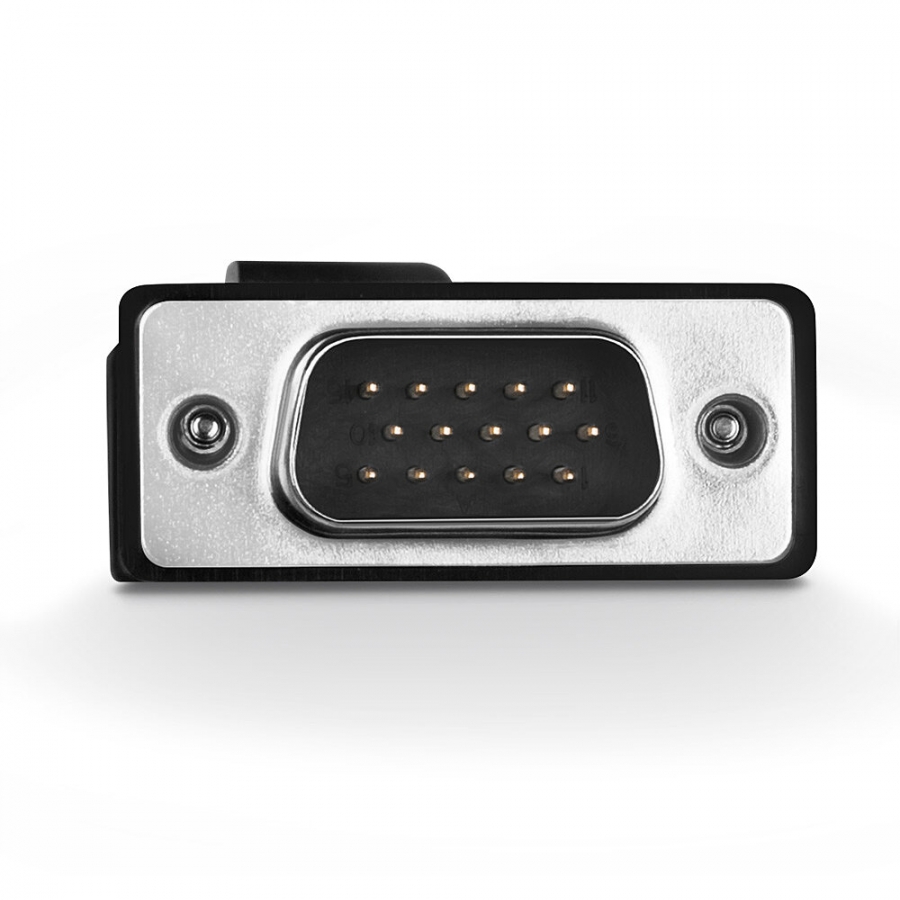

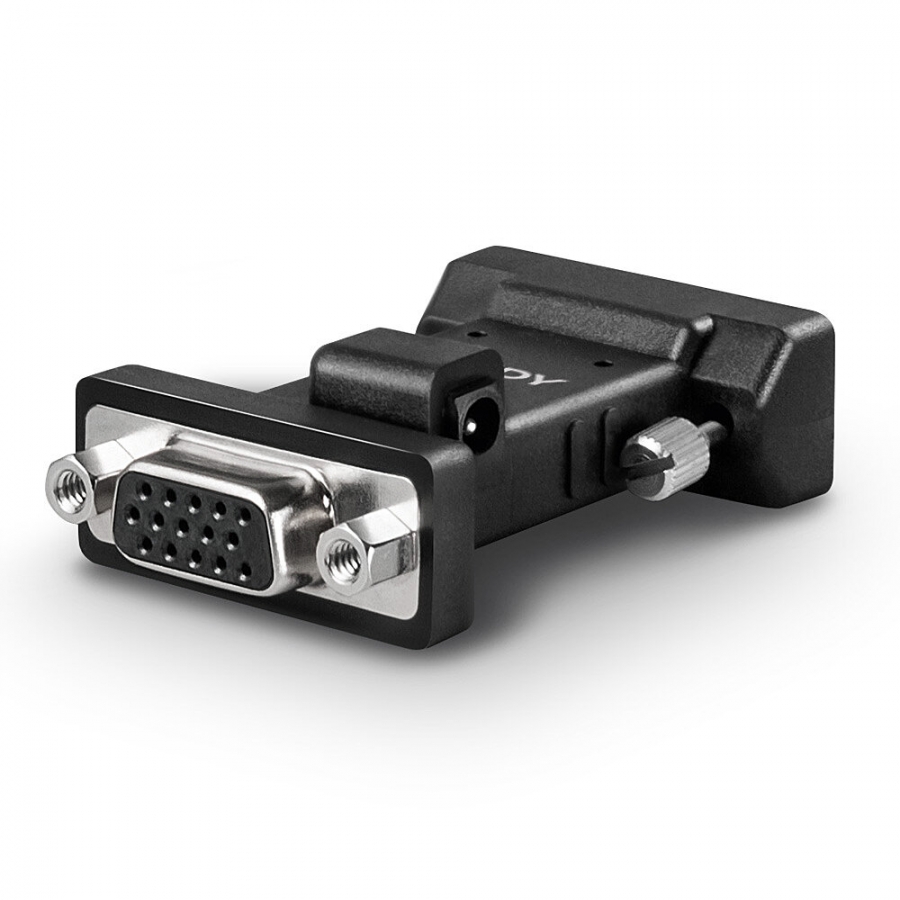

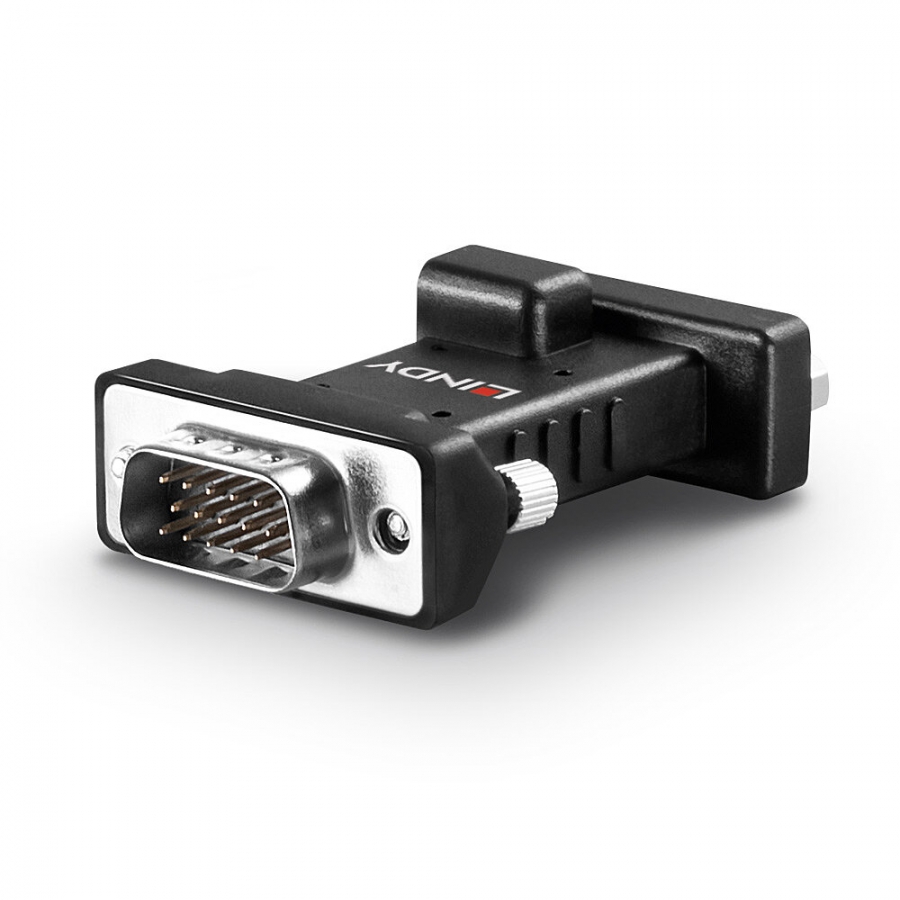

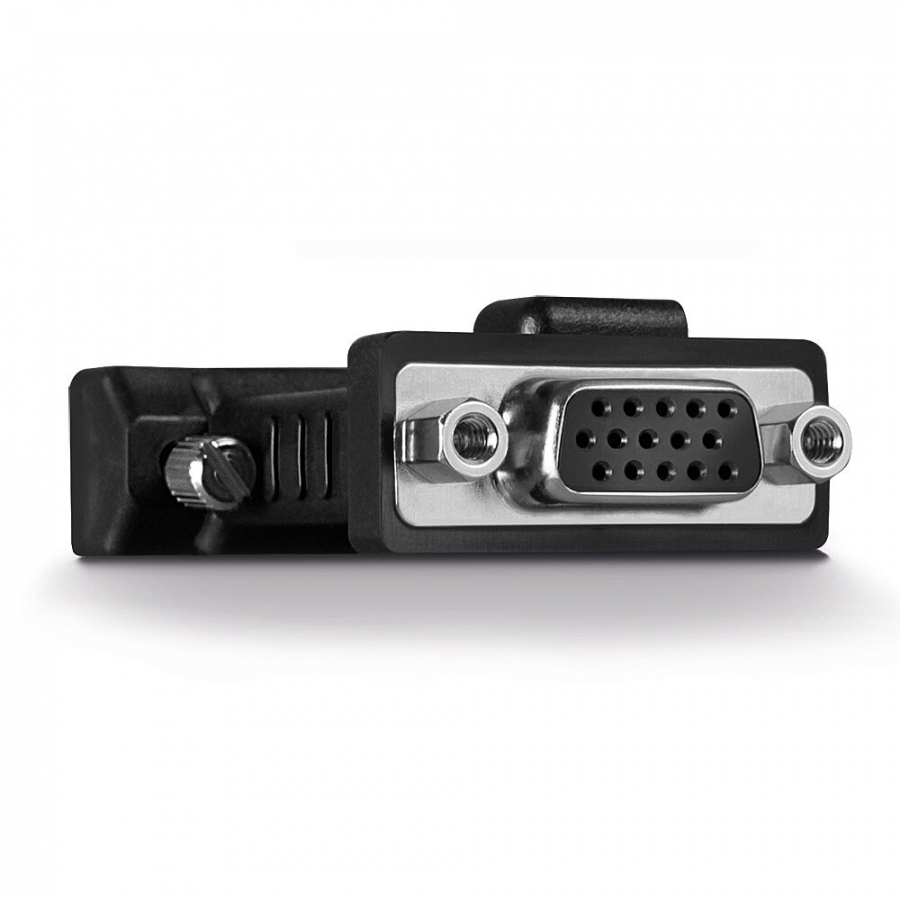

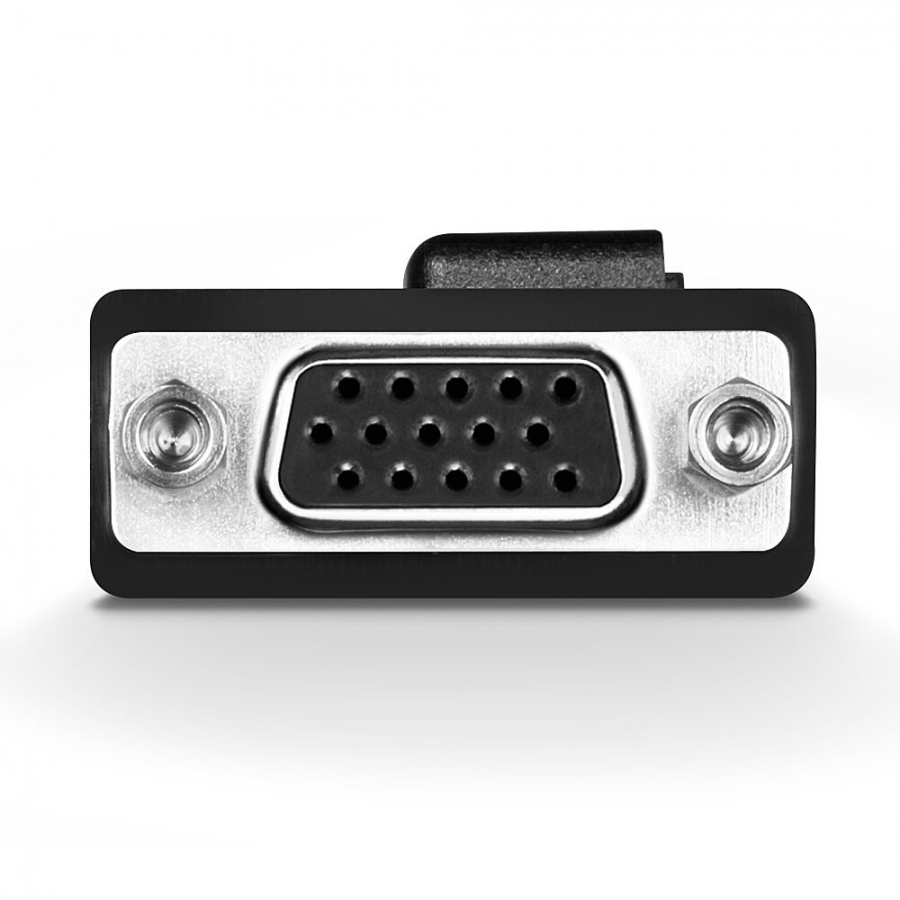

LINDY VGA EDID Emulator

Reference 32121

Condition: New

More info

Continuously emulates VGA EDID information Supports resolutions up to 1920x1200@60Hz For use with 32120 for cloning Powered via VGA Source Interface, 3.5/1.35mm Optional DC jack for non-powered source devices 2 Year warrantyThe Lindy VGA EDID Emulator is designed for systems that require EDID signals to be continuously provided without interruption and helps overcome EDID related problems which can occur when using AV/KVM extenders, switches and splitters. It can also be used in place of a monitor to keep the graphics card of a PC or server awake for remote access via IP. With support for resolutions up to 1920x1200@60Hz, the emulator is suitable for use with legacy PCs and displays. When used with the Lindy EDID recorder (32120) this device can provide cloned EDID information to the graphics card.It is also possible to use the Emulator without cloning a display as it comes complete with pre-set EDID data for the most commonly used resolution/timing combinations, please see the Technical Information section for a full breakdown.

Product colour	Black
Maximum video resolution	3840 x 2160 pixels
Housing material	Metal
HDMI ports quantity	1
VGA (D-Sub) output ports	1
Power supply type	DC
DC voltage	5 V
Width	48 mm
Depth	22 mm
Height	73 mm
Weight	234 g
Package width	185 mm
Package depth	55 mm
Package height	140 mm
Package weight	313 g
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	-20 - 70%
Storage temperature (T-T)	0 - 90 °C
