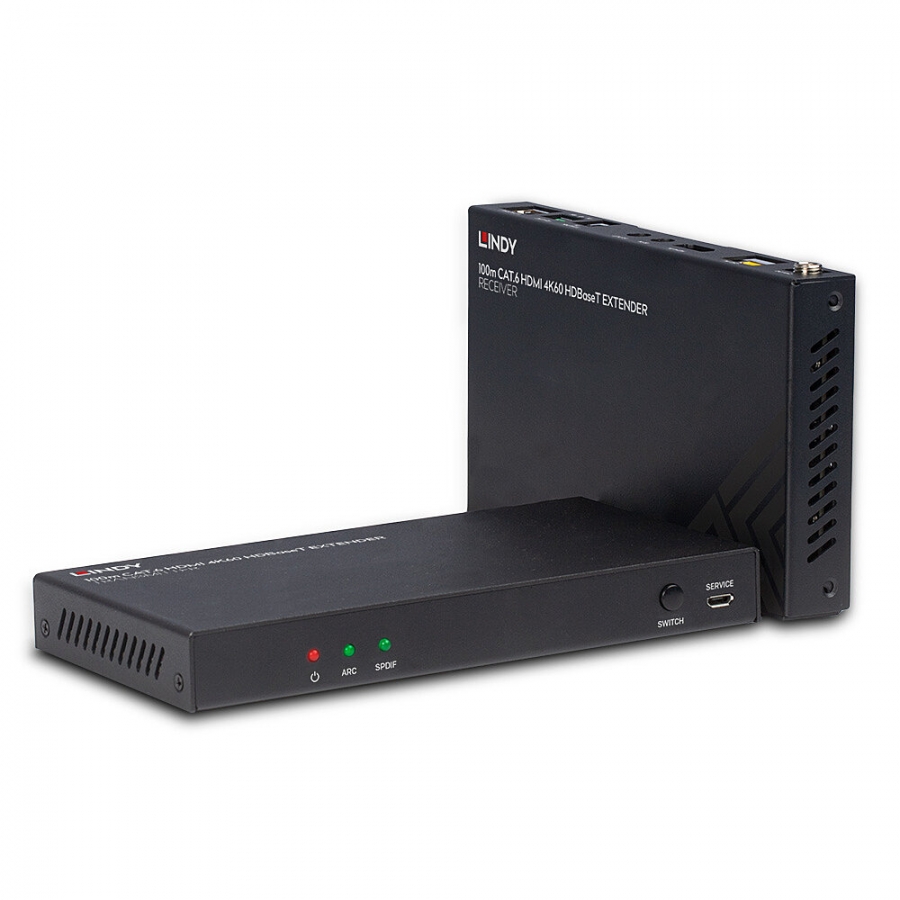

Lindy 100m Cat.6 HDMI 4K60, Audio, IR & RS-232 HDBaseT Extender

Specifications

• AV Interface: HDMI
• Interface Standard: HDMI 2.0
• Supported Bandwidth: 18 Gbps
• Maximum Distance:

70m (229.66ft) - 3840x2160@60Hz 4:4:4 8bit

100m (328.08ft) - 1920x1080@60Hz

• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• EDID Pass Through: Pass-through
• Supported Audio: HDMI Audio Pass-through

TosLink (Optical) Up to 5.1Ch

3.5mm Up to 2.0Ch

• Separate Audio Ports: TosLink (Optical), 3.5mm
• IR Support: 20 - 60KHz
• CEC Support: Pass-through
• Serial Interface: RS-232
• Transmission Protocol: HDBaseT
• Transmission Medium: 1 x Cat.6
• Laser Class (only for Fibre): -
• Wavelength (only for Fibre): -
• Chipset: VS2310TX-A1
• Special Features: HDMI Loop Out Port

PoC (Power over Cat.6)

ARC Support

Connectors

• Transmitter Input: HDMI Type A (Female), 3.5mm IR (Female)
• Transmitter Output: RJ-45 (Female), TosLink (Optical) (Female), 3.5mm Audio (Female), 3.5mm IR (Female)
• Receiver Input: RJ-45 (Female), Toslink (Optical) (Female), 3.5mm IR (Female)
• Receiver Output: HDMI Type A (Female), 3.5mm IR (Female)
• Bi-directional Ports: RS-232 3-Pin Terminal Block, RJ-45 Ethernet (Female)
• Power: 5.5/2.1mm

Physical Properties

• Dimensions (approx.) WxDxH: 163x90x16mm (6.42x3.54x0.63in) per unit
• Housing Material: Metal
• Net Weight: 0.77kg (1.7lb)
• Operating Temperature : 0°C - 40°C (32°F - 104°F)
• Storage Temperature:  -20°C - 60°C (-4°F - 140°F)
• Humidity: 20 - 90% RH (non-condensing)
• Power Requirements: 24VDC 1A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 265x70x210mm (10.43x2.76x8.27in)
• Gross Weight: 1.28kg (2.82lb)
• Warranty (Years): 2
• Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

• HDBaseT HDMI Extender, Transmitter
• HDBaseT HDMI Extender, Receiver
• IR Emitter Cable, 1.5m
• IR Receiver Cable, 1.5m
• 4 x Mounting Ears & 8 x Screws
• 2 x 3-Pin Terminal Block
• Multi-country Power Supply (UK, EU, US & AUS)
• Lindy Manual

Purchasing Information

• No.: 38340
• EAN: 4002888383400
