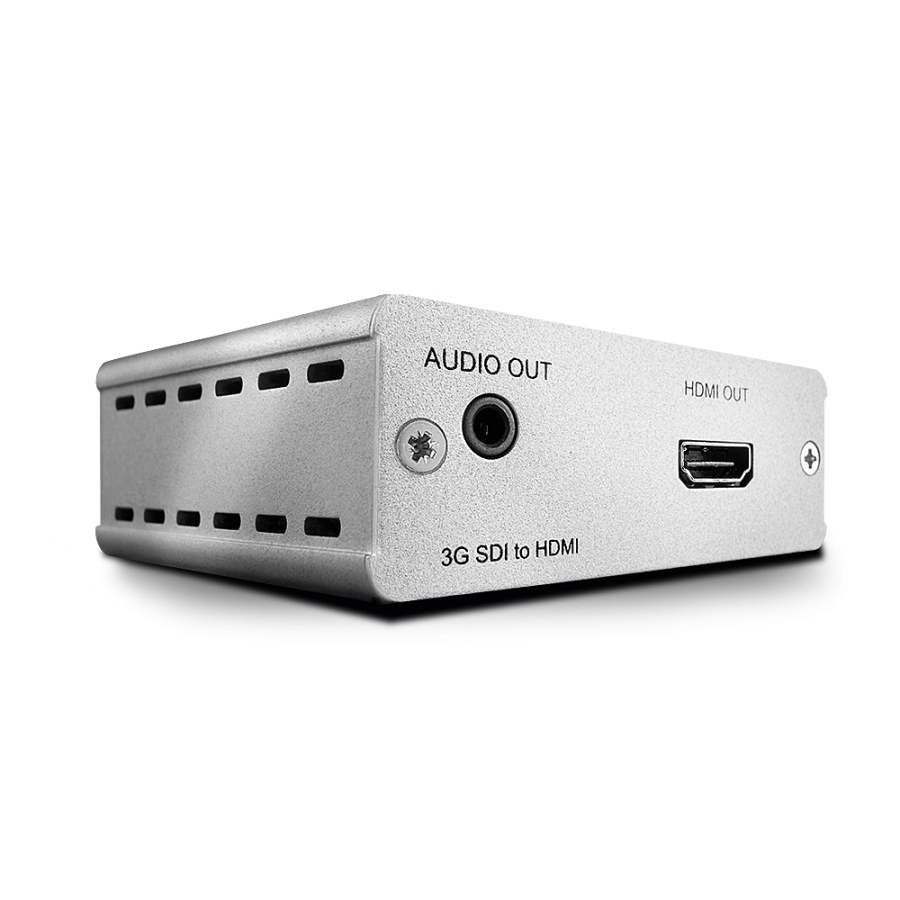

Lindy 3G SDI to HDMI Converter/Extender

 Specification

• AV Interface: 3G SDI to HDMI
• Interface Standard: HDMI 1.3
• Supported Bandwidth: 6.75 Gbps
• Maximum Input Resolution: 1920x1080@60Hz
• Maximum Output Resolution: 1920x1080@60Hz
• HDCP Support: -
• Supported Audio: PCM, Analog L/R
• Separate Audio Ports: HDMI, 3.5mm Stereo
• Special Features: -

Connectors

• Input: 1 x BNC (Female)
• Output: 1 x HDMI (Female), 1 x 3.5mm Stereo Audio (Female)
• Power: 5.5/2.5mm DC socket

Physical Properties

• Dimensions WxDxH: 80x30x120mm (3.15x1.18x4.72in)
• Housing Material: Metal
• Net Weight: 0.035kg (0.08lb)
• Operating Temperature: 0°C - 40°C (32°F - 140°F)
• Storage Temperature: -20°C - 60°C (-4°F - 158°F)
• Humidity: 20 - 90% RH (non-condensing)
• Power Requirements: 5VDC 2.6A
• Colour: Silver

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 210x115x60mm (8.27x4.53x2.36in)
• Gross Weight: 0.5kg (1.1lb)
• Warranty (Years): 2
• Certificated: CE, FCC, REACH & RoHS

Package Contents

• 3G SDI to HDMI Converter
• Multi-Country Power Supply (EU, UK, US & AUS)
• Lindy Manual

Purchasing Information

• No.: 38198
• EAN: 4002888381987
