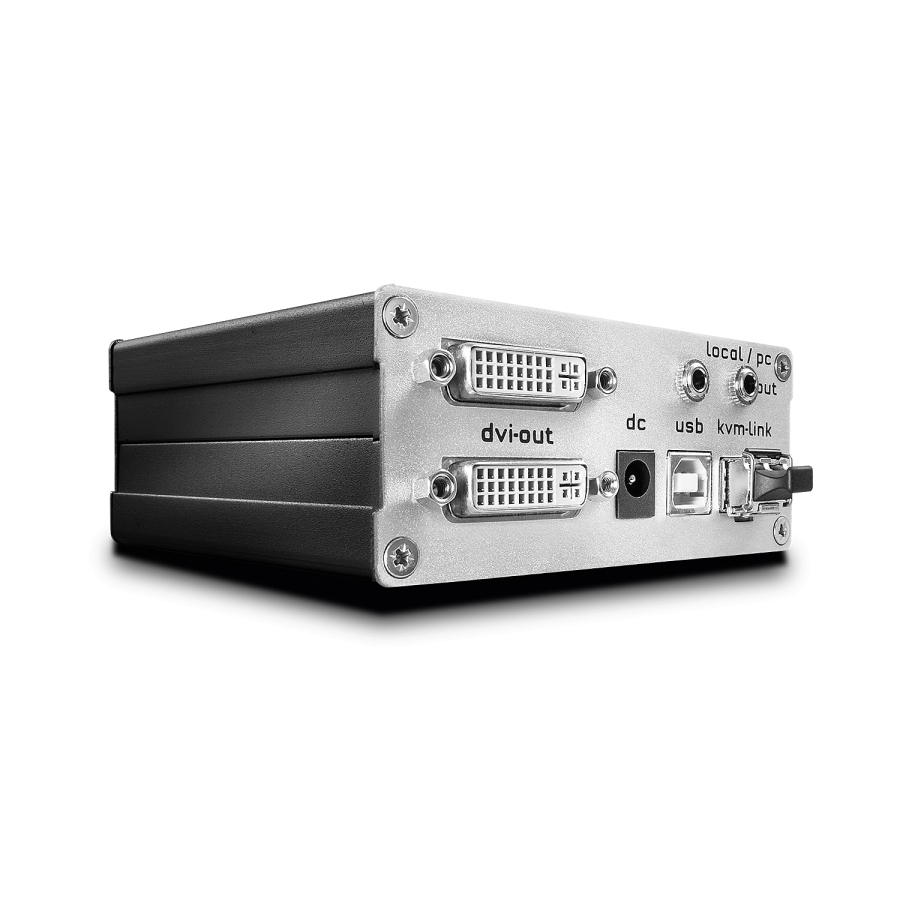

Lindy 500m Fibre Optic DVI-D Single Link & USB 2.0 KVM Extender, Transmitter

Specifications

• AV Interface: DVI
• Console Interface: USB
• Interfaces Standard: DVI 2.0 (Single Mode), USB 2.0
• Supported Bandwidth: 4.95 Gbps
• Maximum Distance: 500m (1640.4ft)
• Maximum Resolution: 1920x1200@60Hz
• HDCP Support: -
• Supported Audio: Analog Stereo Available as Option
• Separate Audio Ports: 2 x 3.5mm (Female)
• Transmission Protocol: IP
• Transmission Medium: 1x Duplex LC (50/125µm)
• Laser Class (only for Fibre): 1
• Wavelength (only for Fibre): 850nm
• Special Features: Mass Storage, Audio, RS232 and Matrix Switch features available as options

Connectors

• Transmitter KVM Interfaces: 2 x DVI-I (Female), ) USB Type B (Female), 2 x 3.5mm (Female)
• Transmitter Extension Port: SFP Slot (LC connectors)
• Receiver Consolle Interface: -
• Receiver Extension Port: -
• Bidirectonal Ports: -
• Other Interfaces: -
• Power: 5.5/2.1mm DC socket

Physical Properties

• Dimensions WxDxH: 100x105x44mm (3.94x4.13x1.73in)
• Housing Material: Metal
• Net Weight: 0.35kg (0.77lb)
• Operating Temperature: 0°C - 45°C (32°F - 113°F)
• Storage Temperature: -25°C - 80°C (-13°F - 176°F)
• Humidity: 0 - 90% RH (non-condensing)
• Power Requirements: 12VDC 1A
• Colour: Silver

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 260x170x70mm (10.24x6.69x2.76in)
• Gross Weight: 0.8kg (1.76lb)
• Warranty: 2
• Certificated: CE, FCC, RoHS & REACH

Package Contents

• Transmitter
• 4 x rubber feet
• 1 x self adhesive hook & loop tape
• 1 xUSB A/B cable (approx. 2m (6.56ft))
• 1 x DVI-D cable M/M (approx. 2m (6.56ft))
• 1 x Multi-Country Power Supply (EU, UK, US, AUS)
• LINDY Manual

Purchasing Information

• No.: 39240
• EAN: 4002888392402
