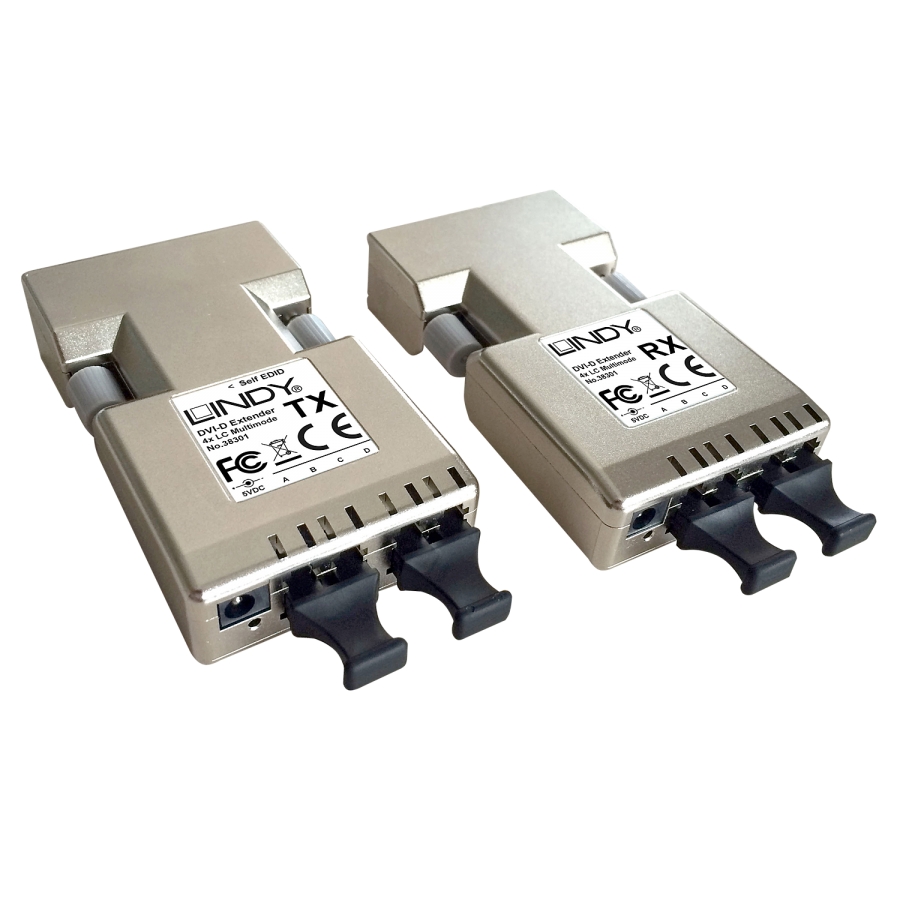

Lindy 500m Fibre Optic DVI-D Single Link Extender

Specifications

• AV Interface: DVI-D
• Interface Standard: DVI-D 2.0 (Single Link)
• Supported Bandwidth: 4.95 Gbps
• Maximum Distance: 500m (1640.4ft)
• Maximum Resolution: 1920x1200@60Hz
• HDCP Support: -
• EDID Pass Through: -
• Supported Audio: -
• Separate Audio Ports: -
• IR Support: -
• CEC Support: -
• Serial Interface: -
• Transmission Protocol: -
• Transmission Medium: 2 x LC Duplex (50/125µm)
• Laser Class (only for Fibre): 1
• Wavelength (only for Fibre): 850nm
• Chipset: -
• Special Features: Self-EDID learning

Connectors

• Transmitter Input: DVI-D (Male)
• Transmitter Output: 2 x Duplex LC  (Female)
• Receiver Input: 2 x Duplex LC (Female)
• Receiver Ouput: DVI-D (Male)
• Bidirectonal Ports: -
• Power: 3.5/1.35mm DC socket

Physical Properties

• Dimensions WxDxH: 40x70x15mm (1.57x2.76x0.59in) per unit
• Housing Material: Metal
• Net Weight: 0.1kg (0.22lb) per unit
• Operating Temperature: 0°C - 70°C (32°F - 158°F)
• Storage Temperature: -20°C - 85°C (-4°F - 185°F)
• Humidity: 10 - 75% RH (non-condensing)
• Power Requirements: 5VDC <200mA per unit
• Colour: Silver

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 185x140x55mm (7.28x5.51x2.17in)
• Gross Weight: 0.53kg (1.17lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package Contents

• Transmitter unit
• Receiver unit
• Multi-Country Power Supply (EU, UK, US & AUS)
• Lindy manual

Purchasing Information

• No.: 38301
• EAN: 4002888383011
