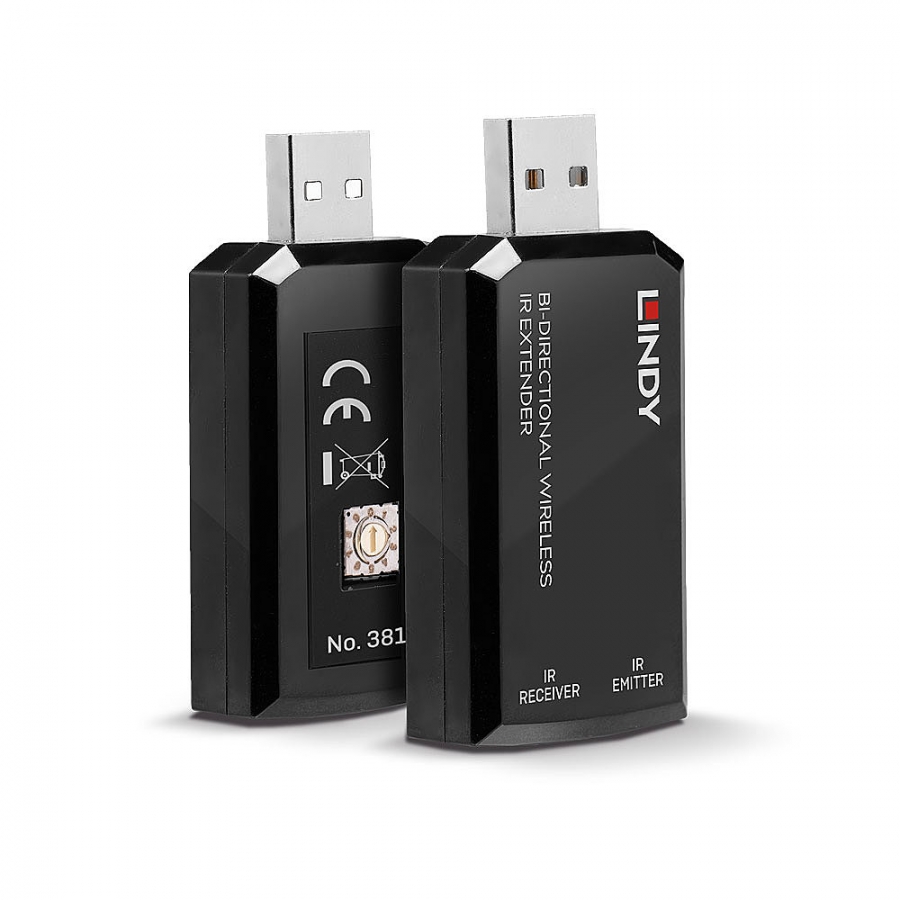

Lindy Bi-directional Wireless IR Extender

Specifications

• AV Interface: IR
• Interface Standard: -
• Supported Bandwidth: -
• Maximum Distance: 150m (492.12ft)
• Maximum Resolution: -
• HDCP Support: -
• EDID Pass Through: -
• Supported Audio: -
• Separate Audio Ports: -
• IR Support: 20~60KHz
• CEC Support: -
• Serial Interface: -
• Transmission Protocol: 866MHz RF
• Transmission Medium: FSK Wireless
• Laser Class (only for Fibre): -
• Wavelength (only for Fibre): -
• Chipset: AMICCOM A7129
• Special Features: Bi-directional 1 - 1 and 1 - Many Extension

Connectors

• Transmitter Input: -
• Transmitter Output: -
• Receiver Input: -
• Receiver Output: -
• Bi-directional Ports: 3.5mm IR (Female)
• Power : USB Powered

Physical Properties

• Dimensions (approx.) WxDxH: 30x13x63mm (1.18x0.51x2.48in)
• Housing Material: Plastic
• Net Weight: 0.013kg (0.03lb)
• Operating Temperature : -40°C - 85°C (-40°F - 185°F)
• Storage Temperature: -55°C - 125°C (-67°F - 257°F)
• Humidity: 10-85% RH (non-condensing)
• Power Requirements: 5V 0.5A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 115x47x115mm (4.53x1.85x4.53in)
• Gross Weight: 0.156kg (0.34lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH & California Proposition 65

Package Content

• 2 x Bi-directional Transceiver
• IR Emitter Cable
• IR Receiver Cable
• Lindy Manual

Purchasing Information

• No.: 38181
• EAN: 4002888381819
