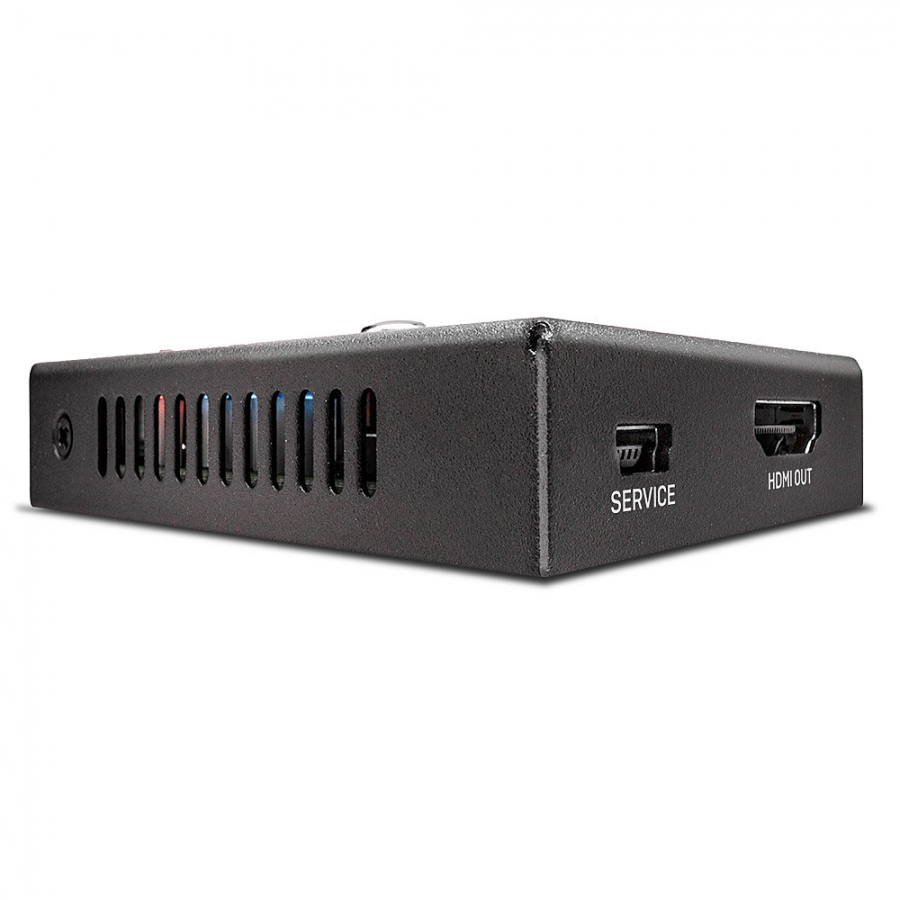

HDMI 18G Up & Down Scaler

Specification

• AV Interface: HDMI
• Interface Standard: HDMI 2.0
• Supported Bandwidth: 18Gbps
• Maximum Input Resolution: 3840x2160@60Hz 4:4:4 8bit
• Maximum Output Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: HDCP 2.2
• Supported Audio: HDMI Audio Pass-through
• Separate Audio Ports: -
• Special Features:
  • CEC Pass-through
  • HDMI Repeater Function up to 20m (4K@60Hz) and 40m (1920x1080)



Connectors

• Input: HDMI Type A (Female)
• Output: HDMI Type A (Female)
• Power: 5.5/2.1mm

Physical Properties

• Dimensions (approx.) WxDxH: 55x81x16mm (2.17x3.19x0.63in)
• Housing Material: Metal
• Net Weight: 0.136kg (0.3lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20 - 90% RH (non-condensing)
• Power Requirements: 5VDC 1A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 205x65x115mm (8.07x2.56x4.53in)
• Gross Weight: 0.308kg (0.68lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH & California Proposition 65

Package Content

• HDMI 18G Up/Down Scaler
• Multi-Country Power Supply (UK, EU, US & AUS)
• Lindy Manual

Purchasing Information

• No.: 38087
• EAN: 4002888380874
