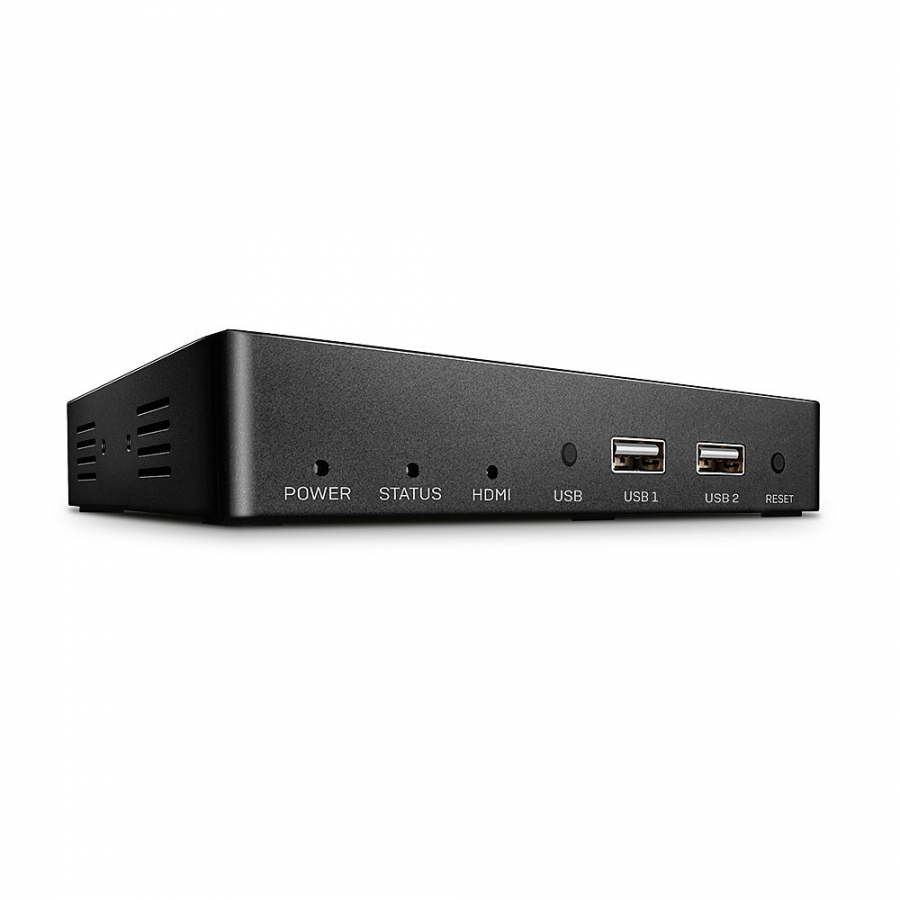

KVM over IP Extender, Receiver

LIN38265

New

Specifications:

  • AV Interface: HDMI
  • Console Interface: USB
  • Interfaces Standard: HDMI 1.4, USB (HID)
  • Supported Bandwidth: 10.2Gbps
  • Maximum Distance: 150m (492,12ft) (Point to Point)
  • Maximum Resolution: 4K@30Hz (3840x2160@30Hz)
  • HDCP Support: HDCP 1.4
  • Supported Audio: Audio supported over HDMI signal
  • Separate Audio Ports:
  • Transmission Protocol: IP
  • Transmission Medium: Cat.5e / 6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Special Features: IR Signal (25 to 56kHz) forwarding



Connectors:

  • Transmitter KVM Interfaces:
  • Transmitter Extension Port:
  • Receiver Console Interface: HDMI (Female), 2 x USB Type A (Female), IR 3.5mm (Female)
  • Receiver Extension Port: RJ45
  • Bi-directional Ports: -
  • Other Interfaces: IR 3,5mm (Female)
  • Power: 5.5/2.1 mm DC socket



Physical properties:

  • Dimensions (approx.) WxDxH: 124x85x24mm (4.88x3.35x0.94in)
  • Housing Material: Plastic
  • Net Weight: 0.2kg (0.45lb)
  • Operating Temperature: 0°C - 55°C (32°F - 131°F)
  • Storage Temperature: -10°C - 75°C (14°F - 167°F)
  • Humidity: 10 - 80% RH (non-condensing)
  • Power Requirements: 5VDC 2A
  • Colour: Black



Miscellaneous:

  • Packaging Type: Carton box
  • Packaging Dimensions: 220x170x60mm (8.66x6.69x2.36in)
  • Gross Weight: 0.8kg (1.76lb)
  • Warranty: 2
  • Certification: CE, FCC, RoHS, REACH



Package content:

  • 1x KVM Over IP Receiver
  • 1x IR Receiver
  • 1 x Multi-Country Power Supply (EU, UK, US, AUS)
  • LINDY Manual



Purchasing information:

  • No.: 38265
  • EAN: 4002888382656
