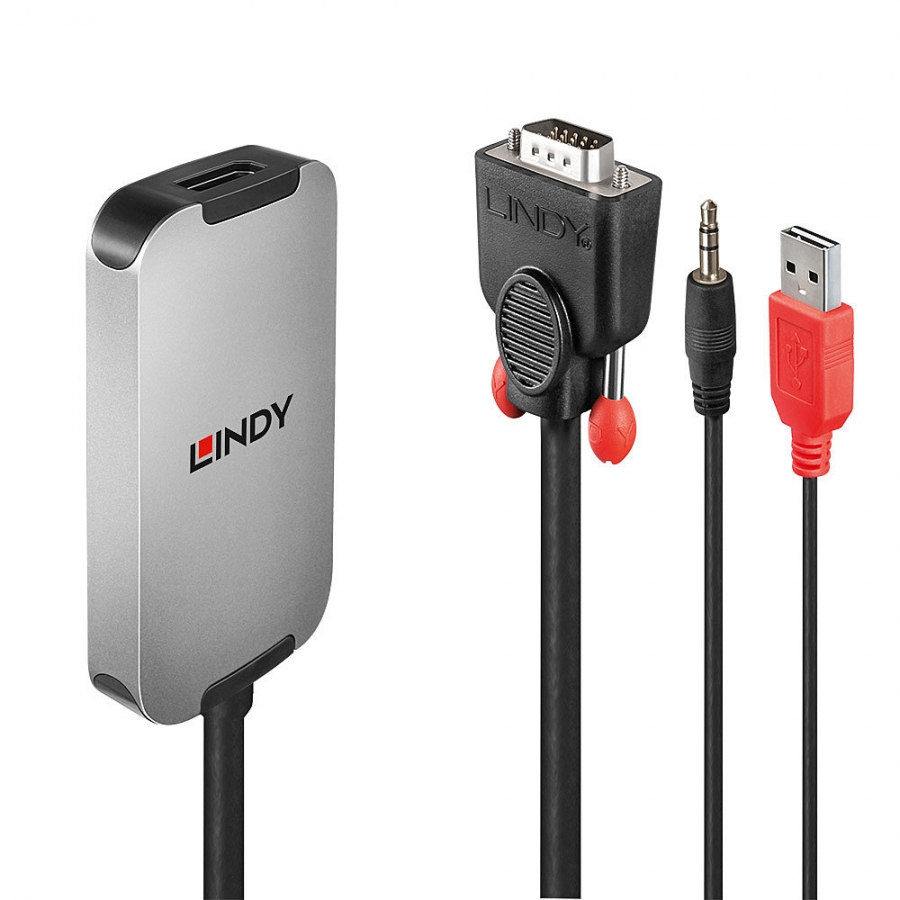

VGA to DisplayPort 1.2 Converter

Specifications

• AV Interface: VGA to DisplayPort
• Interface Standard: VGA, DisplayPort 1.2
• Supported Bandwidth: 4.95Gbps
• Maximum Input Resolution: 1920x1080
• Maximum  Output Resolution: 1920x1080@60Hz RGB 8bit
• Chipset:
  • SiL8784CNUC
  • STDP2600
• HDCP Support: -
• Supported Audio: Stereo via 3.5mm
• Separate Audio Ports: 3.5mm Stereo Audio Plug
• Special Features: USB Type A Male for power

Connectors

• Input: VGA Male, 3.5mm Male Stereo Audio, USB Type A Male (Power)
• Output: DisplayPort Female

Physical properties

• Dimensions (approx.) WxDxH: 50x95x15mm (1.97x3.74x0.59in)
• Cable Length: 180mm (7.09in)
• Housing Material: Aluminium
• Jacket Material: PVC
• Jacket Diameter: 6mm (0.24in)
• Minimum Bend Radius: -
• Net Weight: 0.114kg (0.25lb)
• Operating Temperature: 0°C - 70°C (32°F - 158°F)
• Storage Temperature: -10°C - 80°C (14°F - 176°F)
• Humidity: 20 - 85% RH (non-condensing)
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 174x194x20mm (6.85x7.64x0.79in)
• Gross Weight: 0.122kg (0.27lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package Contents

• VGA to DisplayPort 1.2 Converter

Purchasing Information

• No.: 38296
• EAN: 4002888382960
