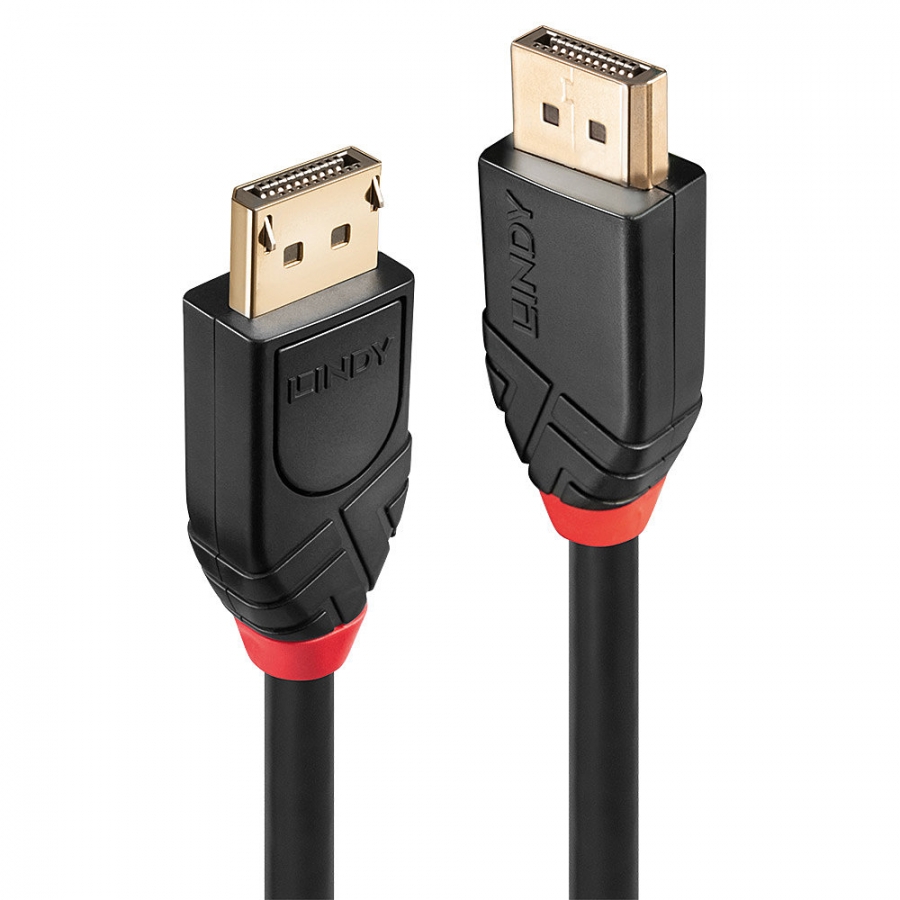

10m Active DisplayPort 1.2 Cable

Connectors

• Connector A: DisplayPort (Male)
• Connector B: DisplayPort (Male)
• Housing Material: ABS
• Connector Plating: 24K Gold Plated
• Pin Construction: Copper
• Pin Plating: 24K Gold Plated
• Dimensions (approx.) WxDxH: 19.7x38.9x12mm (0.78x1.53x0.47in)
• Chipset Housing Dimensions (Length x Outer Diameter): 75x20mm (2.95x0.79in)

Cable Construction

• Length: 10m (32.81ft)
• Standard: DP 1.2
• Colour: Black
• Type: Round
• Jacket Diameter: 7.8mm (0.31in)
• Jacket Material: PVC
• Conductor Material: Bare Copper
• Conductor Gauge: 26AWG
• Shielding: 75% Aluminium Mylar

Specifications

• Supported Bandwidth: 21.6Gbps
• Maximum Resolution:

5120x2880@60Hz 4:2:2 8bit

3840x2160@60Hz 4:2:2 10bit

2560x1440@144Hz 4:2:2 10bit

• Nominal Attenuation: -
• Minimum Bend Radius: 90mm (3.54in)
• Operating Temperature: 0°C - 70°C (32°F - 158°F)
• Storage Temperature: -10°C - 45°C (14°F - 113°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 2
• Certificated: CE,FCC, RoHS & REACH

Purchasing Information

• No.: 41078
• EAN: 4002888410786

This product is also available in other lengths

• 41079 - 15m (49.21ft)
• 41081 - 20m (65.62ft)
