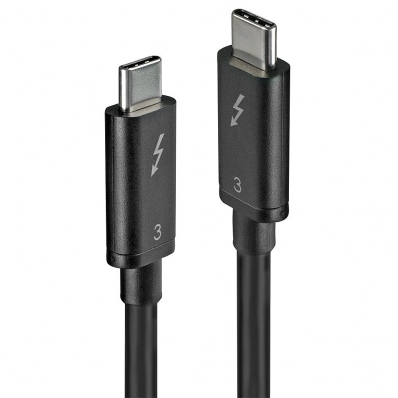

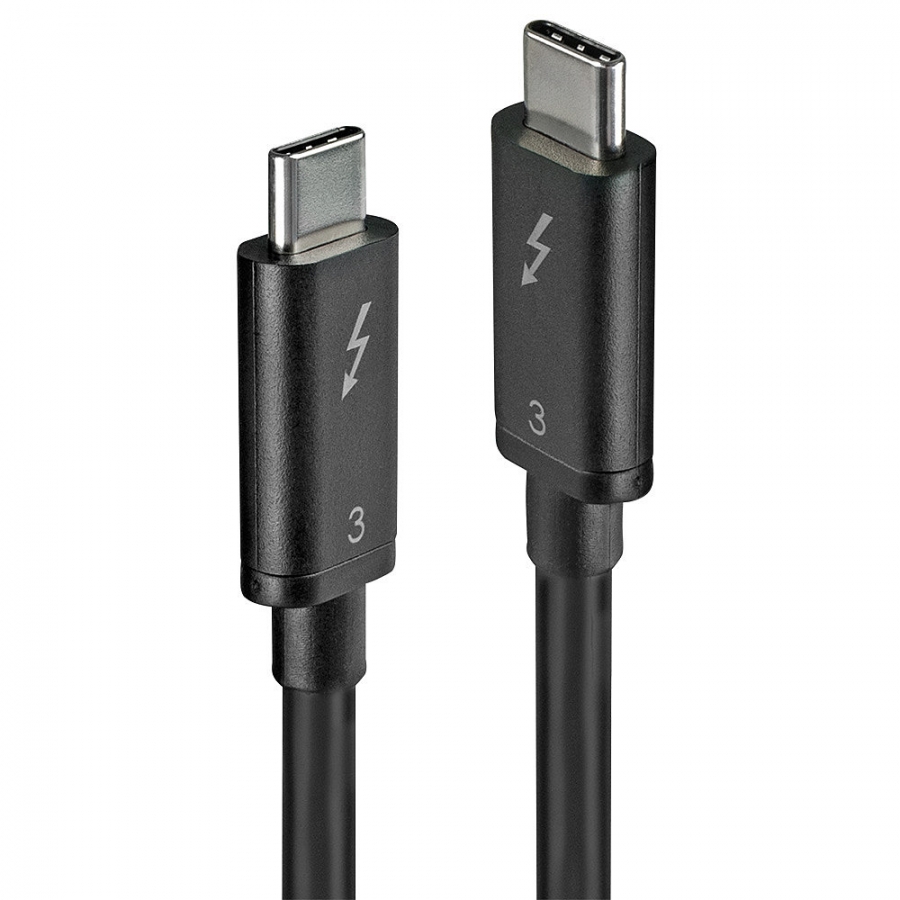

0.8m Thunderbolt 3 Cable, passive

LIN41558

New

Connectors

  • Connector A: Thunderbolt 3 USB Type C Male
  • Connector B: Thunderbolt 3 USB Type C Male
  • Housing Material: PA46
  • Connector Plating: Nickel plated
  • Pin Construction: C7025
  • Pin Plating: Nickel plated
  • Dimensions (approx.) WxDxH: 12.4x9.2x3.29mm (0.49x0.36x0.13in)



Cable Construction

  • Length: 0.8m (2.6ft)
  • Standard: Thunderbolt 3
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 4.6mm (0.18in)
  • Jacket Material: TPE
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 30AWG
  • Shielding: Tinned Copper braid, 85%



Specifications

  • Supported Bandwidth: 40Gbps, bidirectional
  • Maximum Resolution: 4096x2160@120Hz, 5120x2880@60Hz
  • Power Delivery: PD 3.0 up to 100W (20V 5A)
  • Supported protocols:
    • PCIe 3.0 (4 lanes)
    • DP 1.2 (8 lanes)
  • Special Features:
    • Thunderbolt Networking up to 10Gbps (Peer-to-Peer)
    • Daisy Chain up to 6 Thunderbolt devices
  • Nominal Attenuation: 100MHz -1 Db, 2.5GHz -2.6 Db, 5.0 GHz -4.5 Db, 10GHz-7.0dB, 15GHz -11 Db
  • Minimum Bend Radius: 12.5mm (0.49in)
  • Operating Temperature: 0 - 50°C (32°F - 122°F)
  • Storage Temperature: -20 - 85°C (-4°F - 185°F)



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: CE, FCC, RoHS, REACH, UL & California Proposition 65



Purchasing Information

  • No.: 41558
  • EAN: 4002888415583
