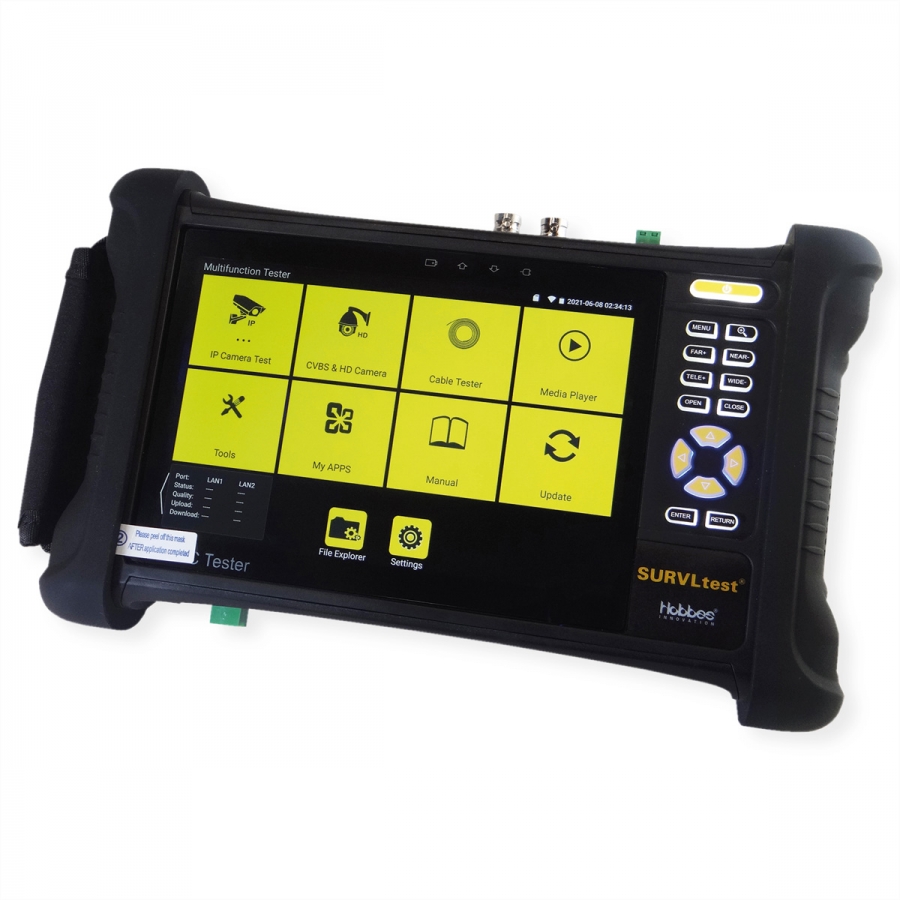

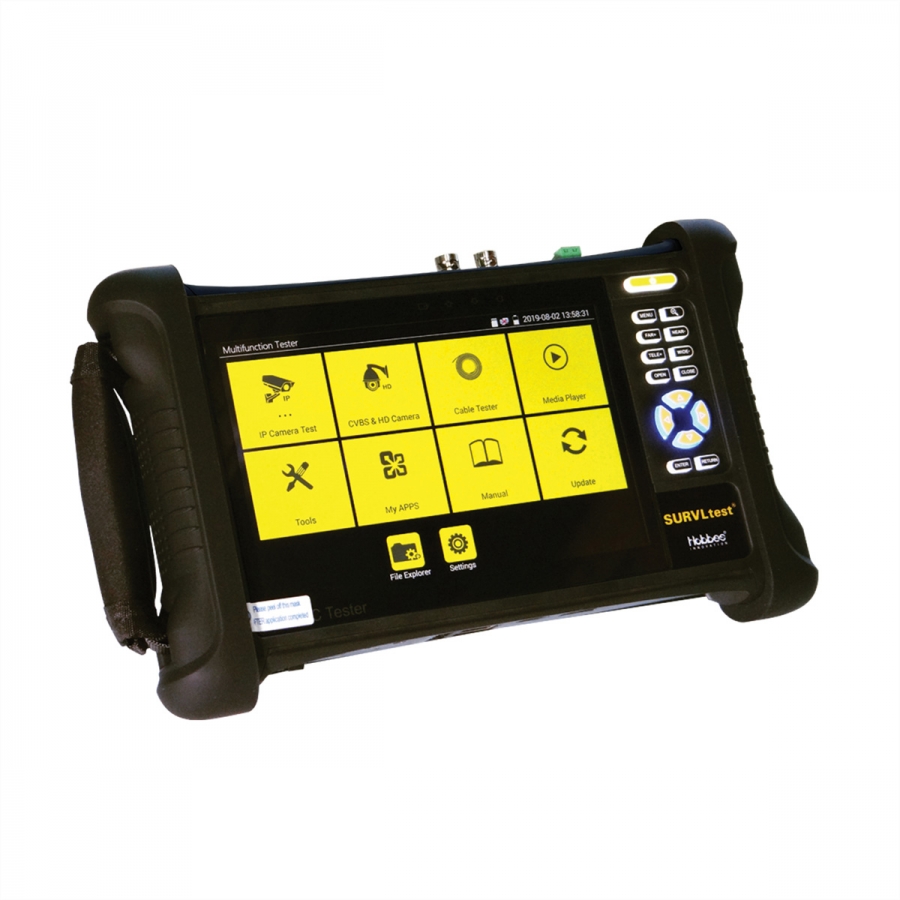

HOBBES SURVLtest, CCTV Tester for IP/HD Coax/Analogue

Hobbes SURVLtest is an installation and troubleshooting tester for digital/IP, HD coax and analogue CCTV camera systems. The 1920 x 1200 resolution enables it to displays network HD camera and analog cameras in high resolution. It also supports many ONVIF PTZ and analog PTZ control. SURVLtest is able to supply power to cameras via PoE/PoE+ (Power Over Ethernet) or standard 12V DC power using its internal Li-Ion battery, eliminating the need for external power adapters and injectors. It allows installers who are new to IP camera systems to quickly and easily connect to cameras without being network experts. With a single tester that can power, configure and document, SURVLtest increases productivity from start to finish.

• 8MP TVI, 8MP CVI, 8MP AHD
• H.265/H.264, 4K video display via mainstream
• Dahua, Hikvision, Axis etc ONVIF camera test
• Auto HD function detects HD analog transmission specification

• Support DC12V 3A or PoE IEEE802.3af and IEEE802.3at power output

• IP automates the process of connecting to IP cameras, allowing novice technicians to configure IP cameras as easily as analog cameras

• SURVLtest offers a comprehensive range of ONVIF and non-ONVIF camera setup tools to ensure the camera is installed correctly

• Create PDF reports that show camera parameters and multiple video screen-shots

• With Cable Tracer/Remote Tool to test cabling faults such as cross overs, miswires, shorts and opens. The length of the cabling is also provided

• Trace cables using the digital tone generator and the Cable Tracer/Remote Tool

- LCD: Display: 7 Inch IPS touch screen, 1920*1200 resolution
- Video Mode: CVBS: 1 Channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)
- Video Mode: IP camera test 4K/H.265/H.264: IP Discovery/Quick ONVIF/IPC test/RTSP play/Client APK
- Video Mode: IP & CVBS test: IP& CVBS test at the same time ,converter test from analog to digital with dual test window
- Video Mode: Coaxial HD test: 8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/call OSD menu
- Video Mode: HDMI input: 1 Channel HDMI input, support 1080P
- Video Mode: Zoom image: 4X zoom, to enlarge image, screen snapshot, record, save, view and record and play back
- Analog Video Out: Color bar generator: Output one channel PAL/NTSC color bar video signal for testing monitor or video cable
- Power Output: PoE power output: 48V PoE power output, max. power 25.5W
- Power Output: DC12V power output: DC12V /3A power output
- Cable Test: RJ45 cable TDR test: Test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement range 180m
