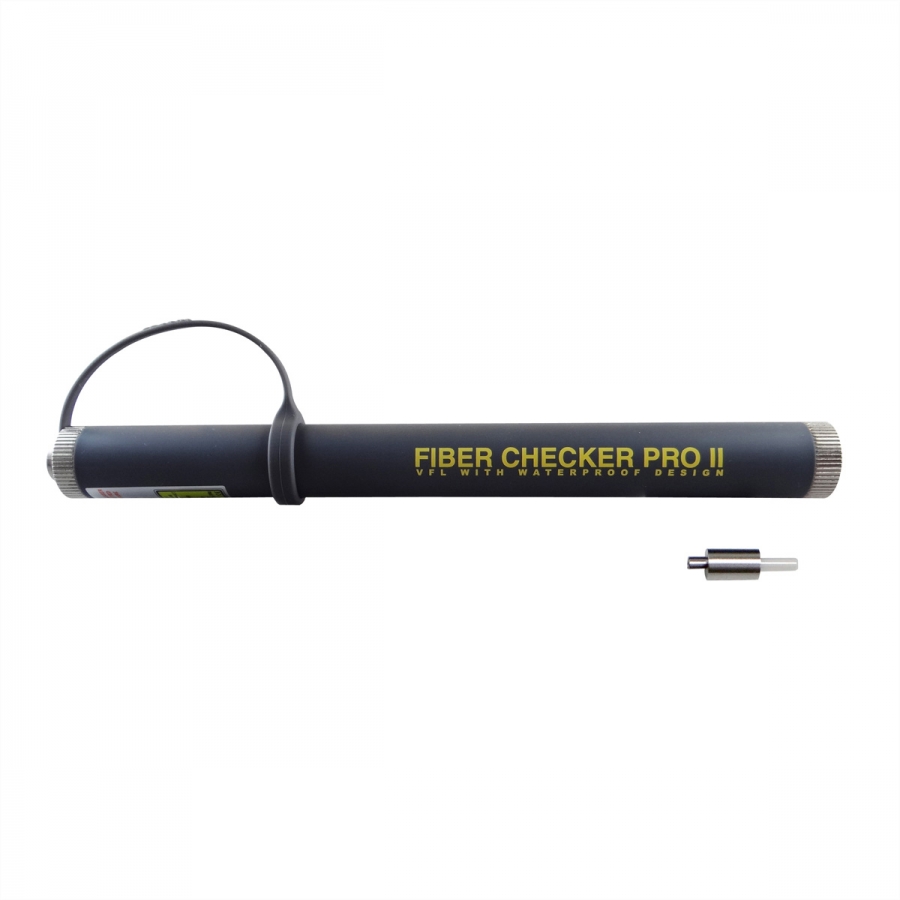

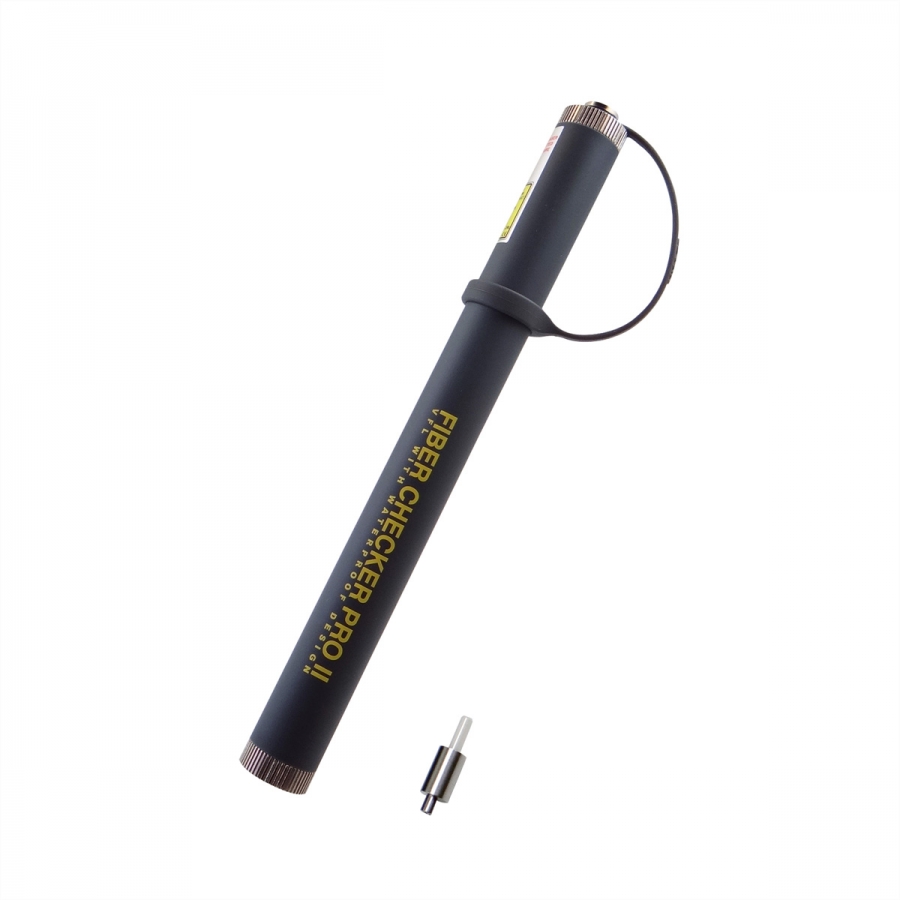

HOBBES Fiber Checker Pro II + LC Adapter

Fiber Checker Pro II is used during installation and repair to find faults, checking continuity, verifying signal path and identifying fiber. It tests single mode, multi–mode and plastic fibers.

It has the capacity to test fiber cables ranging up to 7 km. Fiber Checker Pro II emits a bright red light that can easily locate a fiber fault or a loss point. When testing for continuity, it discloses the fiber cable being tested from a bundle of fiber cables.

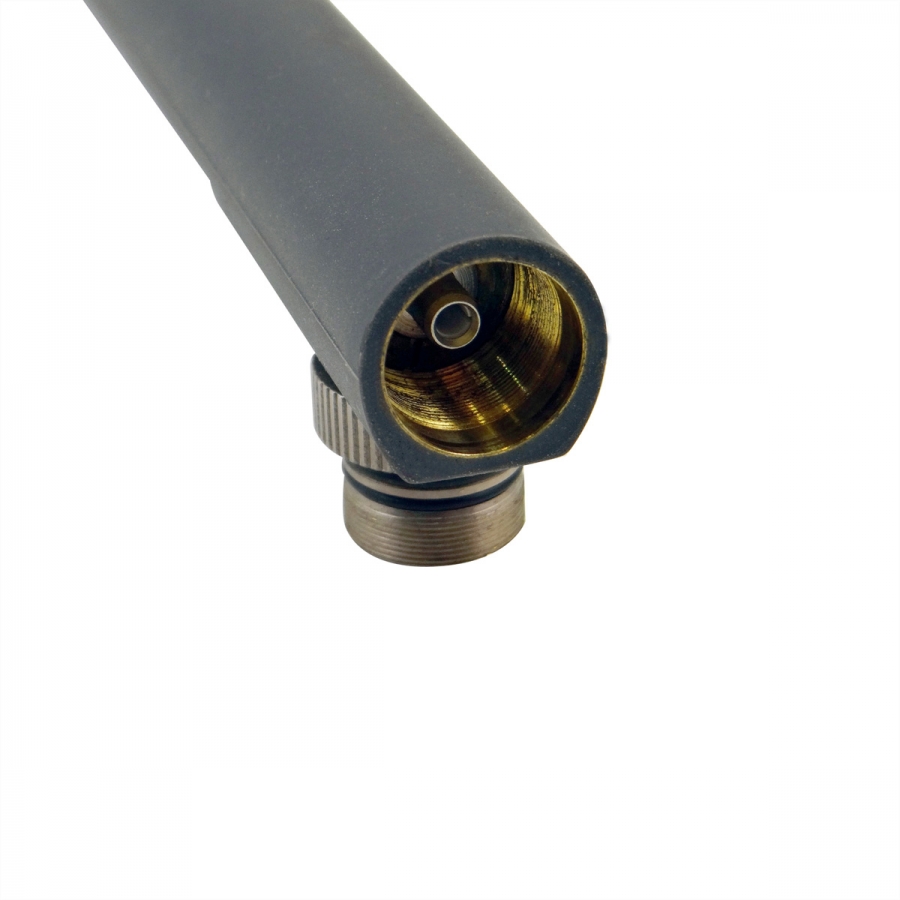

Alternatively, a fiber route can be confirmed by bending a patch cord for the red light to expose out of the patch cord. The universal connector adapter is suitable for 1.25mm or 2.5mm fiber optic connectors, and with its ceramic alignment sleeve, it ensures durable operation. Now with waterproof design and its high quality material, the Fiber Checker Pro II can withstand dust, humidity, and immersion in 1m of water.

• Wavelength: 650nm
• Range: Visibility up to 7 km.
• Easy to check fiber faults with visual red laser light.
• Universally Connector for test different interfaces: ST, SC, FC, FDDA.
• Tests single mode, multi–mode and plastic fiber cables (optional 2.5mm fiber optic connectors to 1.25mm adapter).
• Highly effective power circuits for stable laser power.
• Operates in both CW (Continuous Wave) and PM (Pulse Mode).
• Dust–proof and water–proof design.
• Use two alkaline AAA battery.
• Durable water–proof and drop resistant construction.

Laser class: Class II
Wavelength: 650nm±10nm@25ºC
Spectral width: <10nm
Output power: >1.2mW @ 25ºC into 9/125um single–mode fiber
Mode: CW/Pulse
Battery : Alkaline AAA 1.5V x 2
Output power reliable: ±0.2mW
Range: Visibility to 7 km
Operating temp.: 0ºC to 50ºC
Storage temp.: 0ºC to70ºC
