Delock RJ45 jack to Terminal Block Adapter for Installation 8 pin 2-part

DELOCK

66589

New

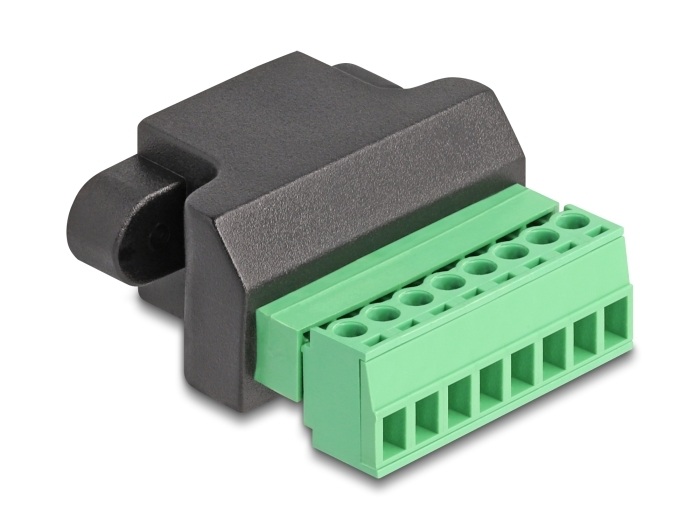

This terminal block adapter by Delock can be used to connect bare wires. The screwable RJ45 jack can be attached, for e.g., to a slot bracket or a housing with a suitable cut-out.
Specification:
• Connectors:
  1 x RJ45 jack with nuts
  1 x 8 pin terminal block
• Pitch: 3.50 mm
• Cat.6 specification
• 1:1 connected
• 2 x mounting holes
• Mounting hole diameter: 3.5 mm
• Pitch of screw hole: ca. 26 mm
• Cable gauge: 26 - 16 AWG

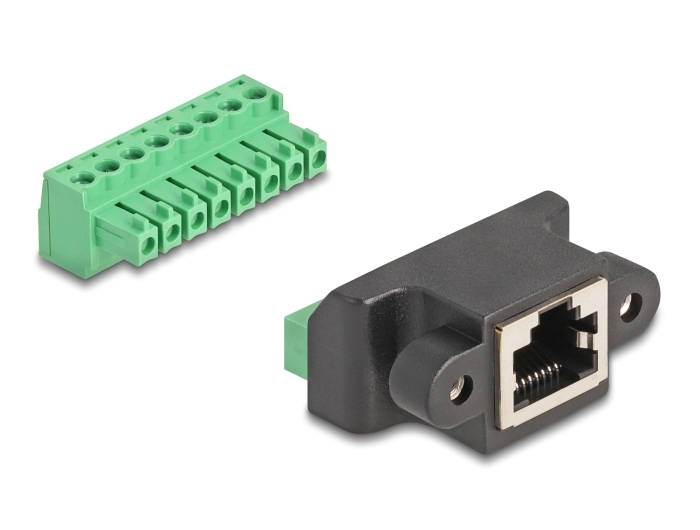

• Removable Terminal Block
• Operating temperature: -40 °C ~ 105 °C
• Material: plastic
• Colour: black / green

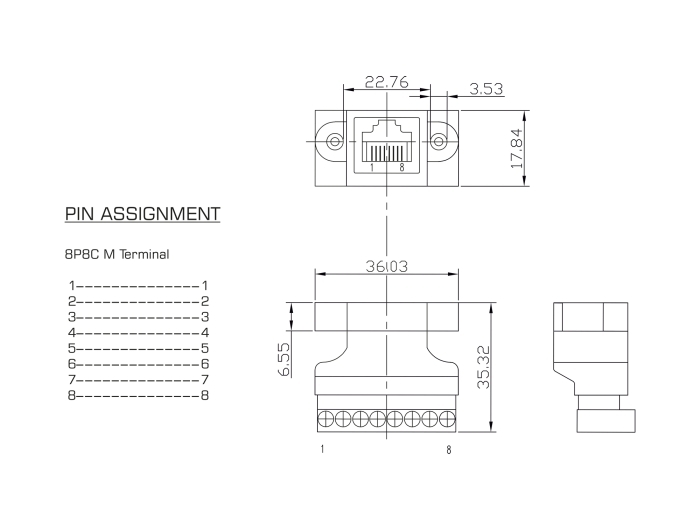

• Dimensions (LxWxH): ca. 36.0 x 35.3 x 17.8 mm
Package content:
• Adapter
Data sheet:
http://www.delock.de/produkt/66589/pdf.html?sprache=en
