> >>Delock RJ45 2 x female to 2 x Terminal Block with push-button for DIN rail
Delock RJ45 2 x female to 2 x Terminal Block with push-button for DIN rail

Delock RJ45 2 x female to 2 x Terminal Block with push-button for DIN rail

DELOCK

66994

New

This adapter by Delock can be used to connect various network devices. Strands with stripped ends can be connected via the terminal block toolfree.

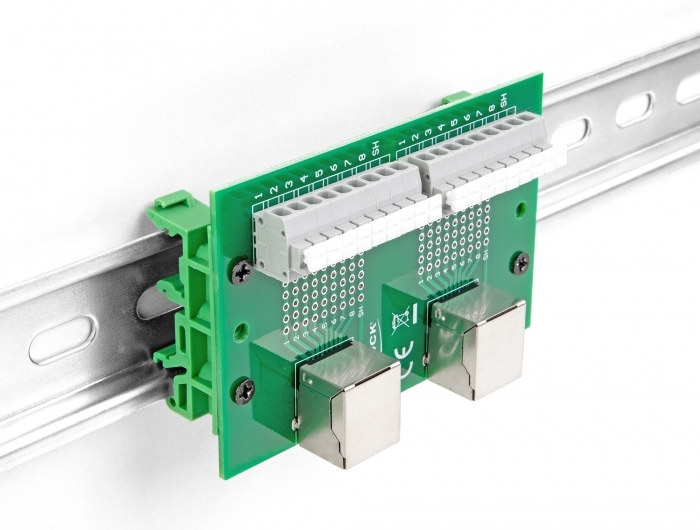

DIN rail mounting
With the clips included in the delivery content, the adapter can be attached to a 15 mm or 35 mm wide DIN rail.
System requirements:
• Two free RJ45 male
• 15 mm or 35 mm DIN rail
Specification:

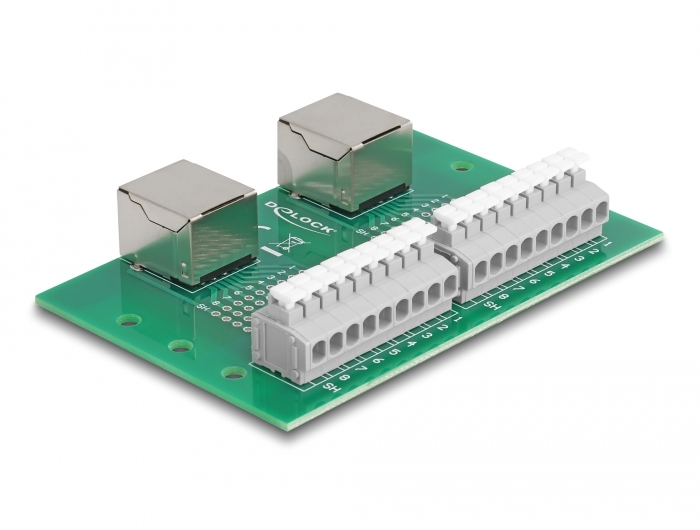

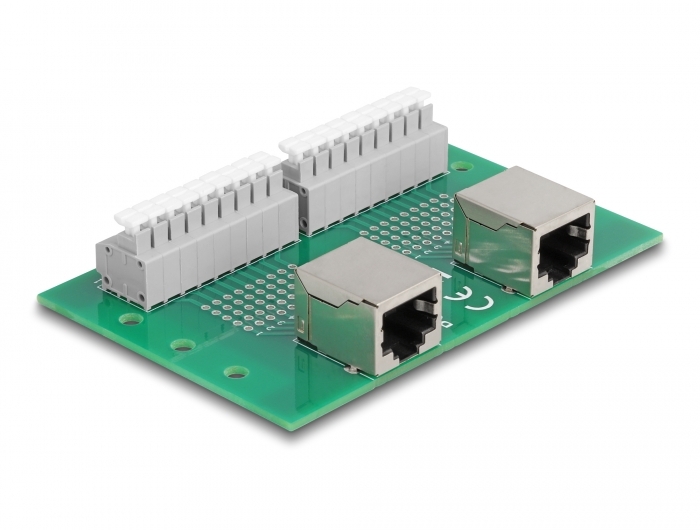

• Connectors:
  2 x RJ45 jack
  2 x 9 pin terminal block
• Pin assignment: 1:1
• Pitch: 3.81 mm
• Useable for a cable gauge from 24 to 12 AWG
• DIN rail mounting: 15 mm and 35 mm
• Operating temperature: -40 °C ~ 100 °C
• Dimensions (LxWxH): ca. 91 x 60 x 18 mm

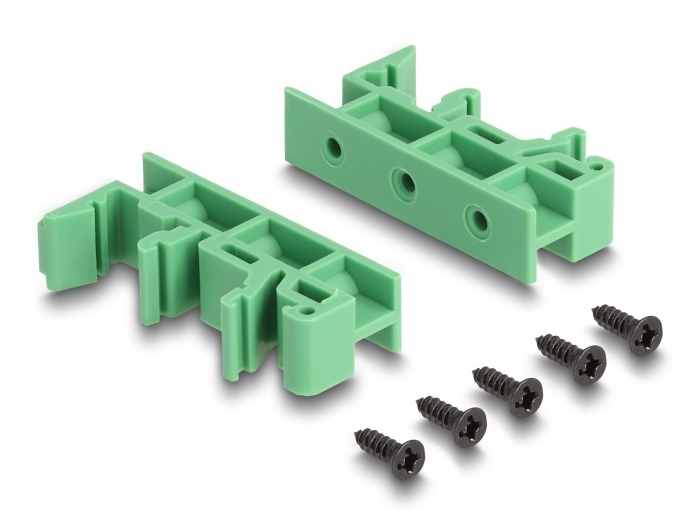

Package content:
• Adapter
• 2 x DIN rail clip
• 5 x screws
Data sheet:
http://www.delock.de/produkt/66994/pdf.html?sprache=en
