Delock D-Sub 37 pin female to Terminal Block for DIN rail

Delock D-Sub 37 pin female to Terminal Block for DIN rail

DELOCK

66914

New

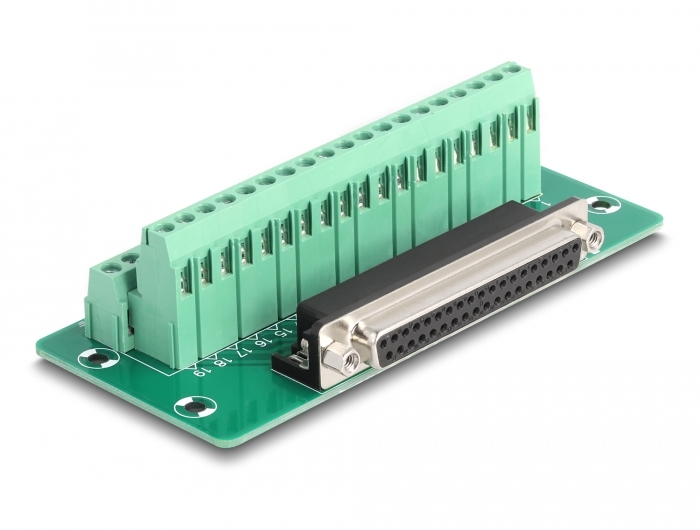

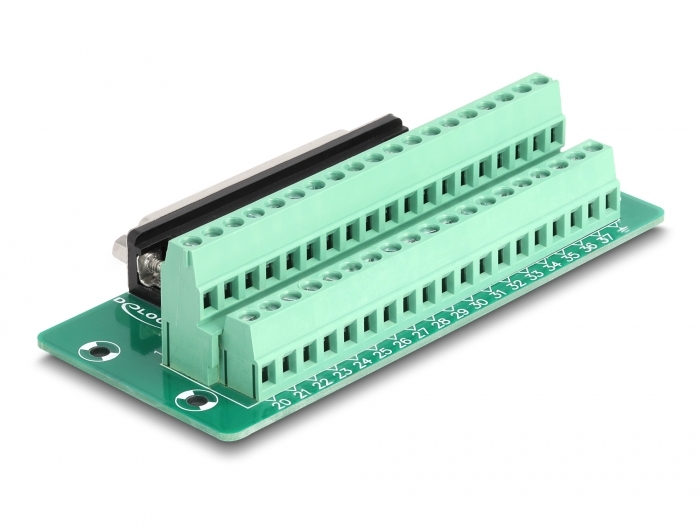

This terminal block adapter by Delock can be used to connect wires with stripped ends.

DIN rail mounting

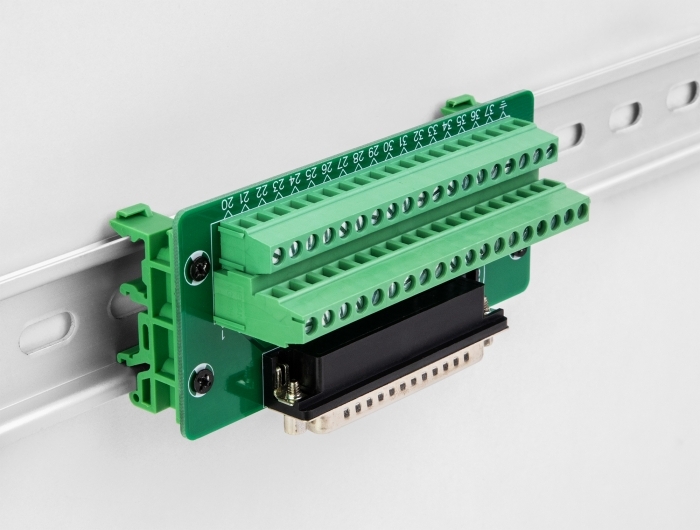

With the clips included in the delivery content, the adapter can be attached to a 15 mm or 35 mm wide DIN rail.
System requirements:
• A free D-Sub 37 pin male
• 15 mm or 35 mm DIN rail
Specification:
• Connectors:
  1 x D-Sub 37 pin female
  1 x 38 pin terminal block
• Pin assignment: 1:1
• Pitch: 5.00 mm
• Useable for a cable gauge from 24 to 12 AWG
• DIN rail mounting: 15 mm and 35 mm
• Operating temperature: -40 °C ~ 100 °C
• Dimensions (LxWxH): ca. 116 x 51 x 30 mm
Package content:
• Adapter

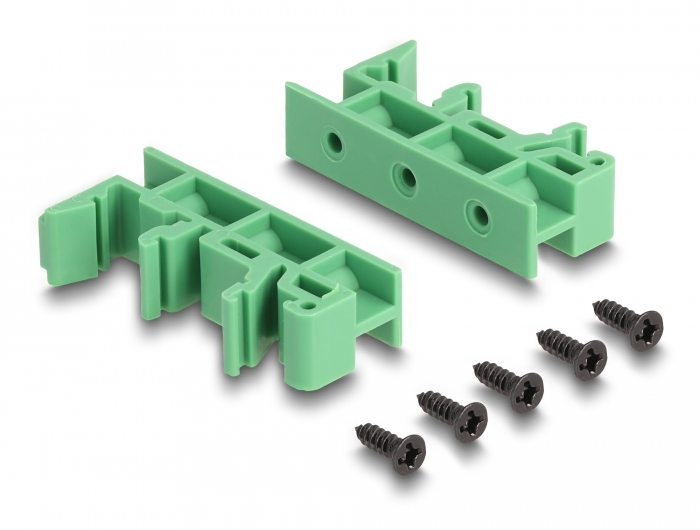

• 2 x DIN rail clip
• 5 x screws
Data sheet:
http://www.delock.de/produkt/66914/pdf.html?sprache=en
