> >>Delock Terminal block set for PCB 10 pin 3.81 mm pitch horizontal
Delock Terminal block set for PCB 10 pin 3.81 mm pitch horizontal
Previous Next

Delock Terminal block set for PCB 10 pin 3.81 mm pitch horizontal

DELOCK

65960

New

Add to Compare

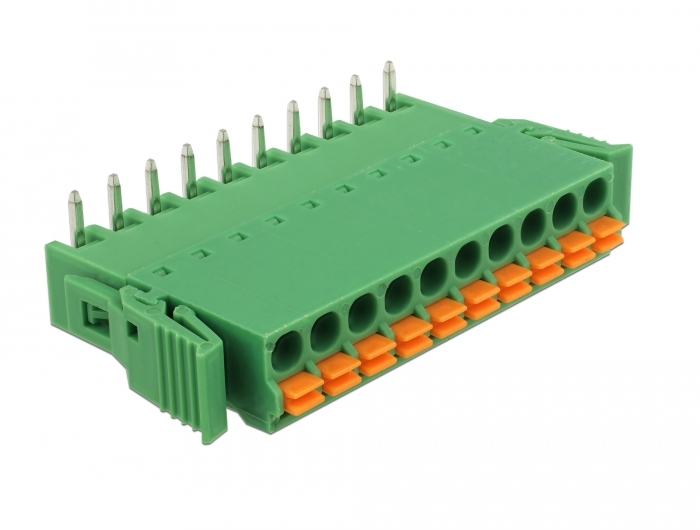

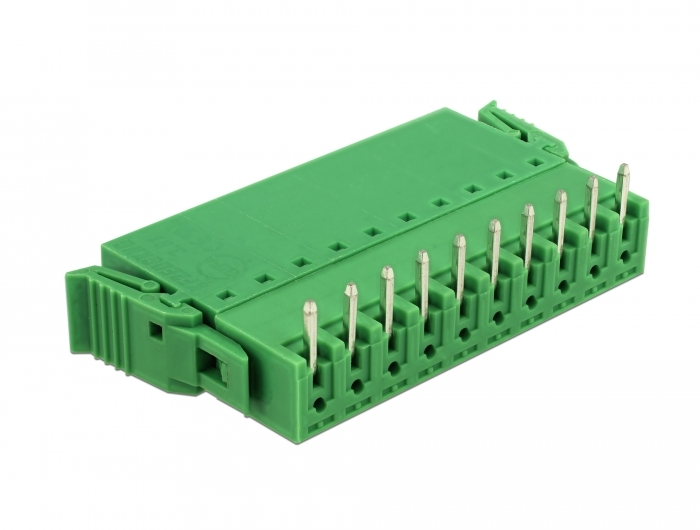

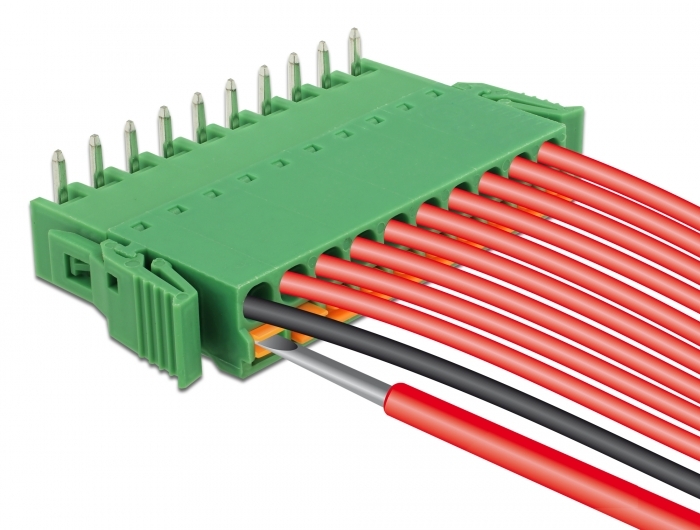

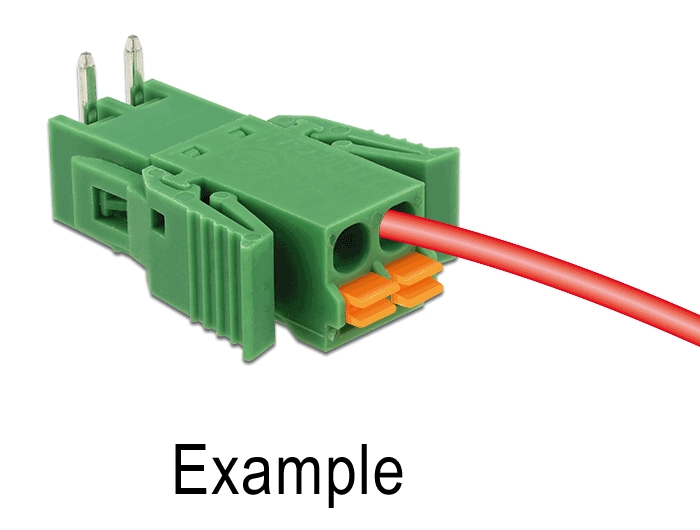

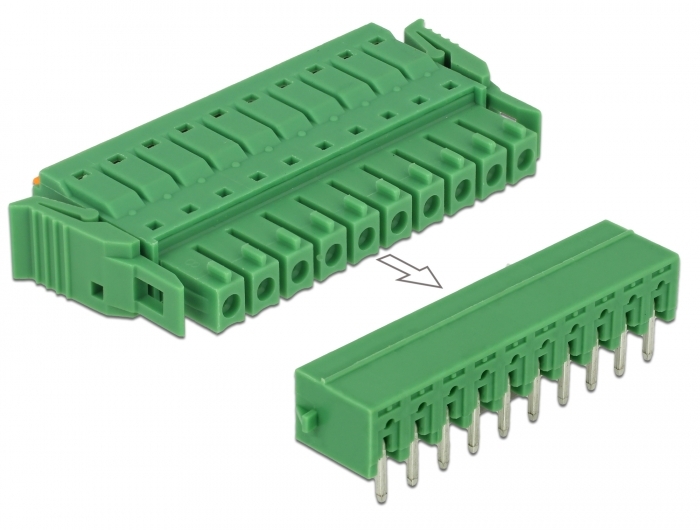

This terminal block set by Delock will be soldered on a PCB, to create a detachable connection between two components.
Specification:
• Connectors:
  Terminal block:
  1 x 10 pin terminal block male
  1 x 10 pin terminal block with soldering pin
  Connection terminal:
  1 x 10 pin terminal block female
  1 x 10 pin terminal block with locking function
• Pitch: 3.81 mm
• Environmental temperature: -40 °C ~ 105 °C
• Useable for a cable gauge range from 24 to 12 AWG
• Material: plastic
• Colour: green
• Dimensions (LxWxH): ca. 38.85 x 9.05 x 6.95 mm
Package content:
• Terminal block
• Connection terminal
Data sheet:
http://www.delock.de/produkt/65960/pdf.html?sprache=en
