Delock Terminal block for PCB soldering version 3 pin 5.00 mm pitch vertical 10 pieces

Reference 66016

Condition: New

More info

This terminal block by Delock is suitable for the mounting on a PCB. This can be soldered on a board, to create a screw connection. Furthermore, data or power cables can be connected via the terminal block.

Specification:
• Connectors:
1 x 3 pin terminal block screw terminal
1 x 3 soldering pin

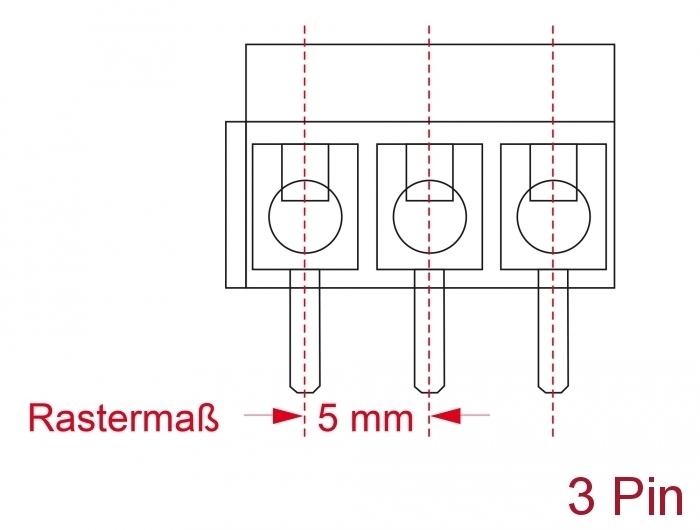

• Pitch: 5.00 mm
• Environmental temperature: -30 °C ~ 120 °C

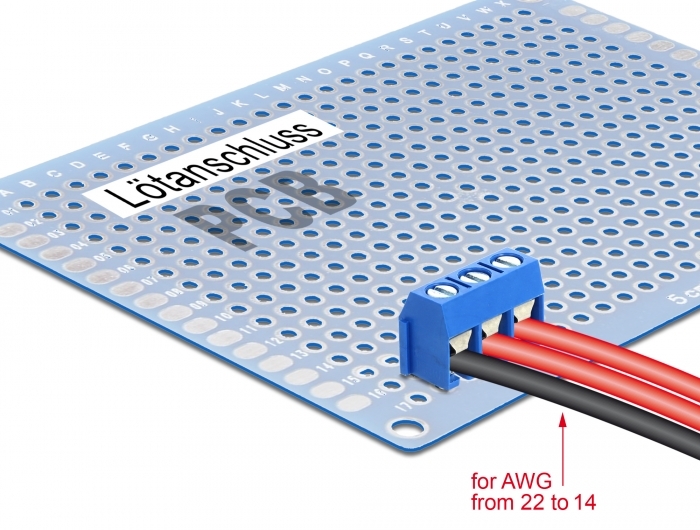

• Useable for a cable gauge from 22 to 14 AWG
• Withstanding voltage: AC 2000 V / 1 min
• Rated voltage according to: UL: 300 V, IEC: 250 V
• Rated current according to: UL: 12 A, IEC: 17.5 A
• Insulation resistance: 500 MΩ / DC 500 V
• Material: plastic
• Colour: blue

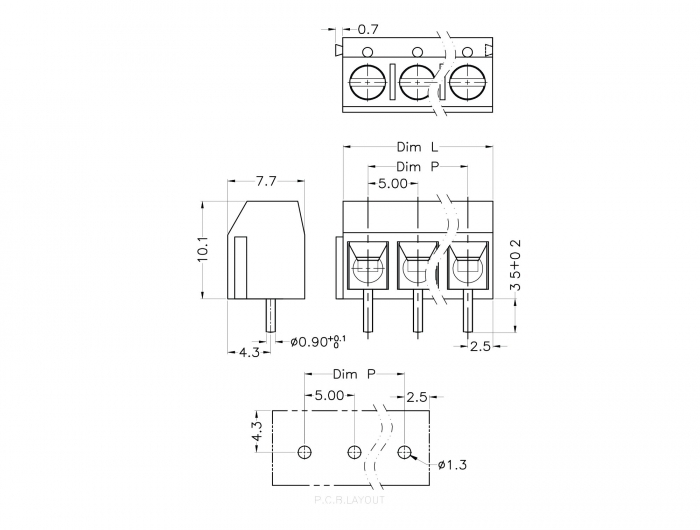

• Dimensions (LxWxH): ca. 15.0 x 10.1 x 7.7 mm

Package content:

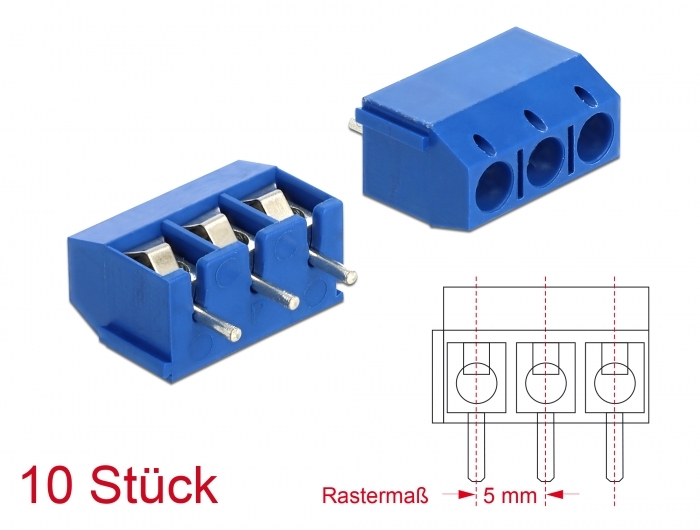

• 10 x Terminal block

Data sheet:
http://www.delock.de/produkt/66016/pdf.html?sprache=en
