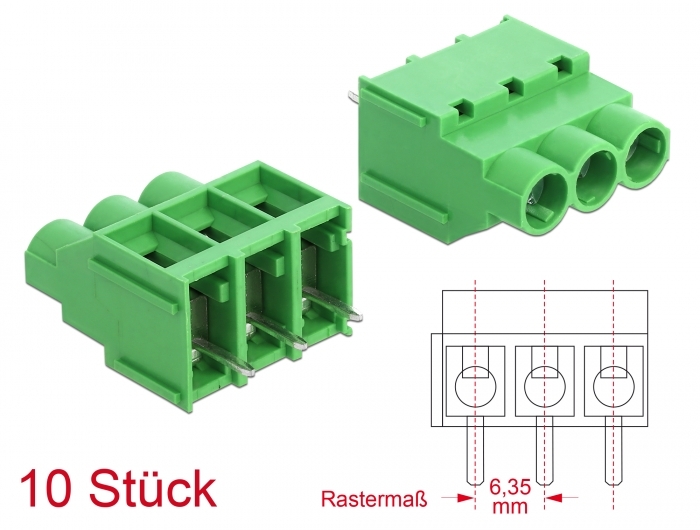

Delock Terminal block for PCB soldering version 3 pin 6.35 mm pitch vertical 10 pieces

Reference 66020

Condition: New

More info

This terminal block by Delock is suitable for the mounting on a PCB. This can be soldered on a board, to create a screw connection. Furthermore, data or power cables can be connected via the terminal block.

Specification:
• Connectors:
1 x 3 pin terminal block screw terminal
1 x 3 soldering pin

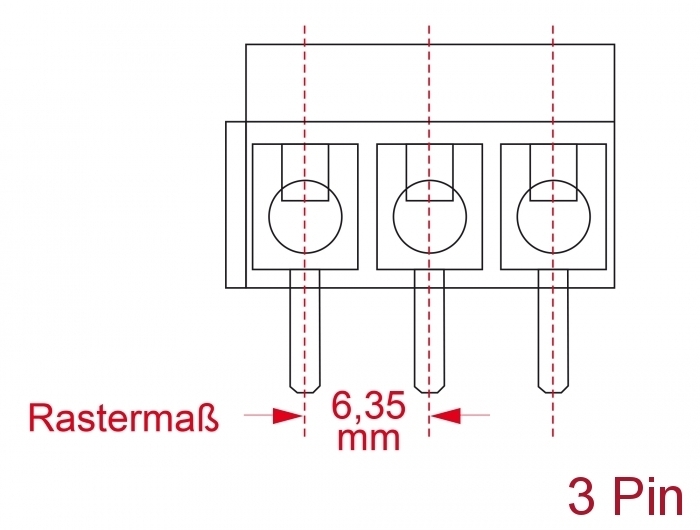

• Pitch: 6.35 mm
• Environmental temperature: -40 °C ~ 105 °C

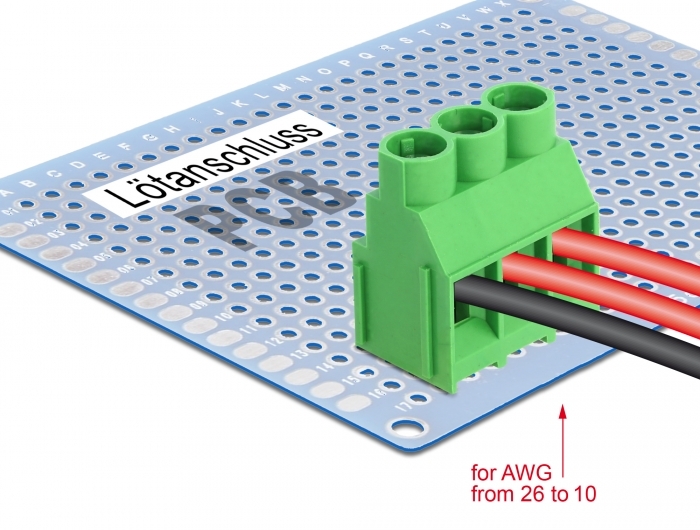

• Useable for a cable gauge from 26 to 10 AWG
• Withstanding voltage: AC 3000 V / 1 min
• Rated voltage according to: UL: 300 V, IEC: 450 V
• Rated current according to: UL: 30 A, IEC: 24 A
• Insulation resistance: 500 MΩ / DC 500 V
• Material: plastic
• Colour: green

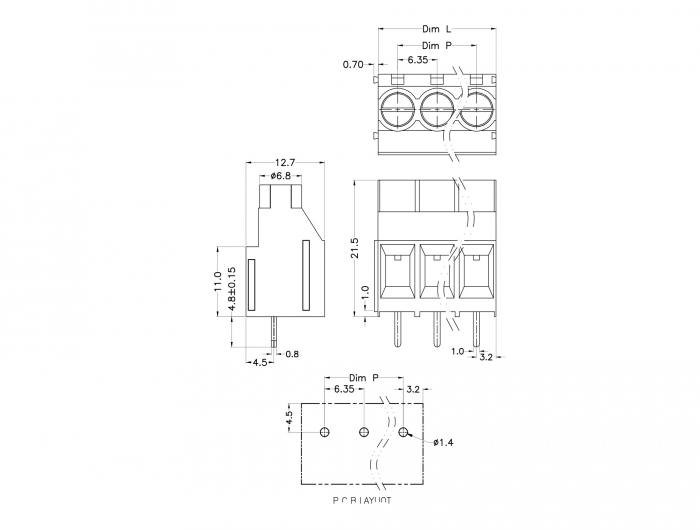

• Dimensions (LxWxH): ca. 21.5 x 19.1 x 12.7 mm

Package content:
• 10 x Terminal block

Data sheet:
http://www.delock.de/produkt/66020/pdf.html?sprache=en
