> >>Delock Terminal block set for PCB 10 pin 5.08 mm pitch horizontal
Delock Terminal block set for PCB 10 pin 5.08 mm pitch horizontal
Previous Next

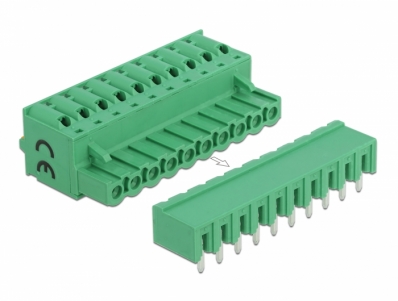

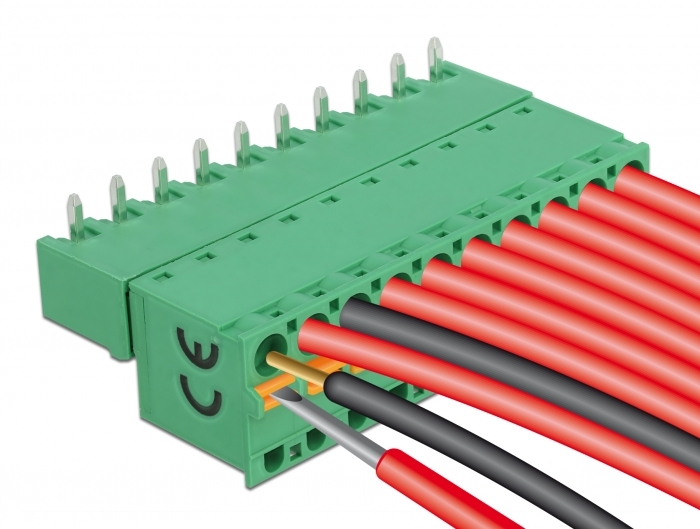

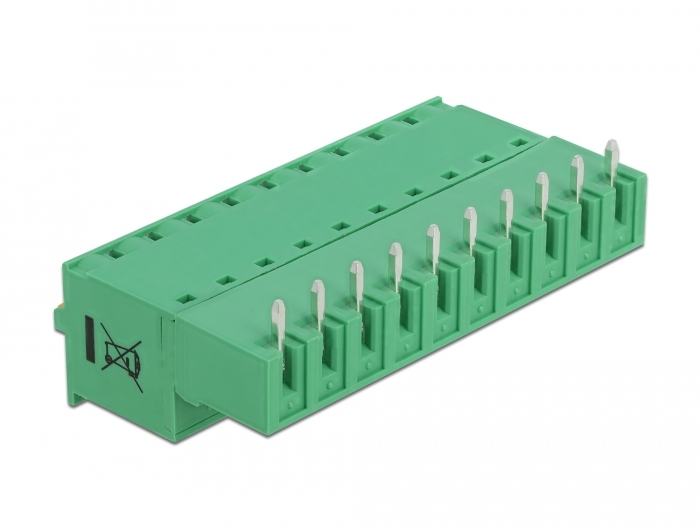

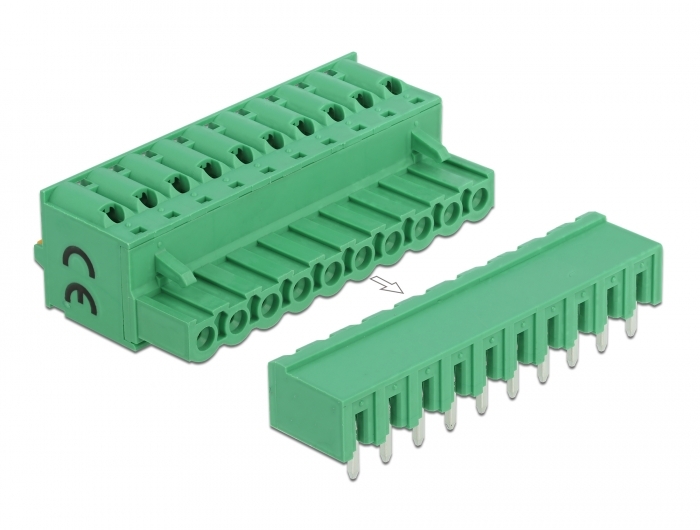

Delock Terminal block set for PCB 10 pin 5.08 mm pitch horizontal

DELOCK

66509

New

Add to Compare

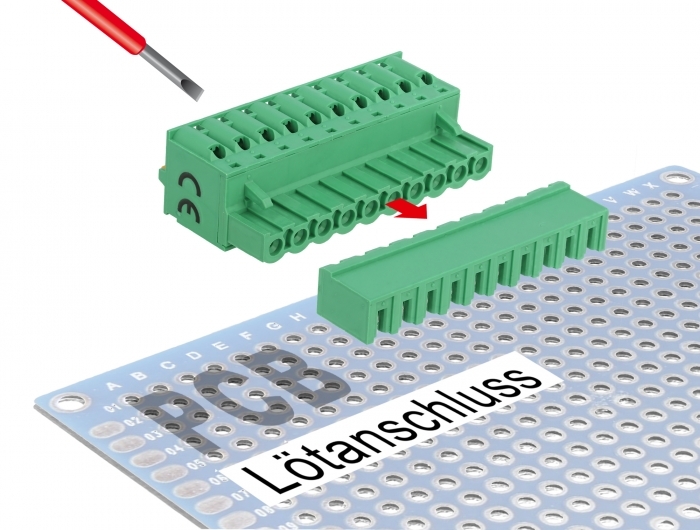

This terminal block set by Delock will be soldered on a PCB board, to create a detachable connection between two components.
Specification:
• Connectors:
  Terminal block:
  1 x 10 pin terminal block male

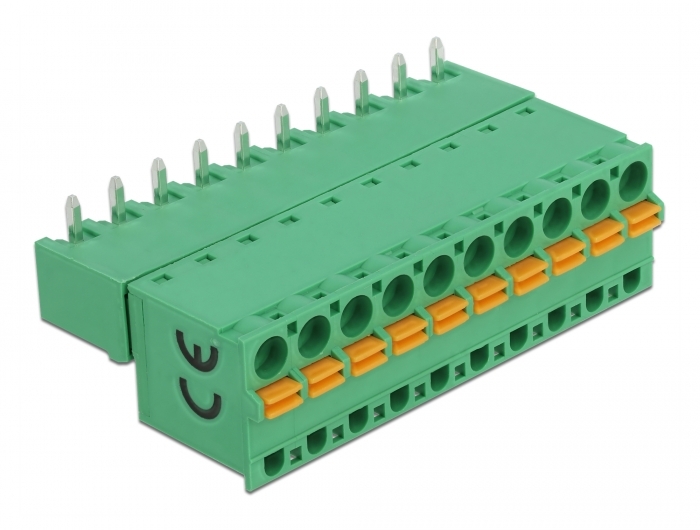

  1 x 10 pin terminal block with push button
  Connection terminal:
  1 x 10 pin terminal block female
  1 x 10 pin terminal block with soldering pin
• Pitch: 5.08 mm
• Environmental temperature: -40 °C ~ 105 °C
• Useable for a cable gauge range from 28 to 12 AWG
• Material: plastic
• Colour: green
• Dimensions (LxWxH): ca. 51.4 x 25.6 x 15.0 mm
Package content:
• Terminal block
• Connection terminal
Data sheet:
http://www.delock.de/produkt/66509/pdf.html?sprache=en
