> >>Delock Terminal block set for PCB 6 pin 5.08 mm pitch horizontal
Delock Terminal block set for PCB 6 pin 5.08 mm pitch horizontal
Previous Next

Delock Terminal block set for PCB 6 pin 5.08 mm pitch horizontal

DELOCK

66507

New

Add to Compare

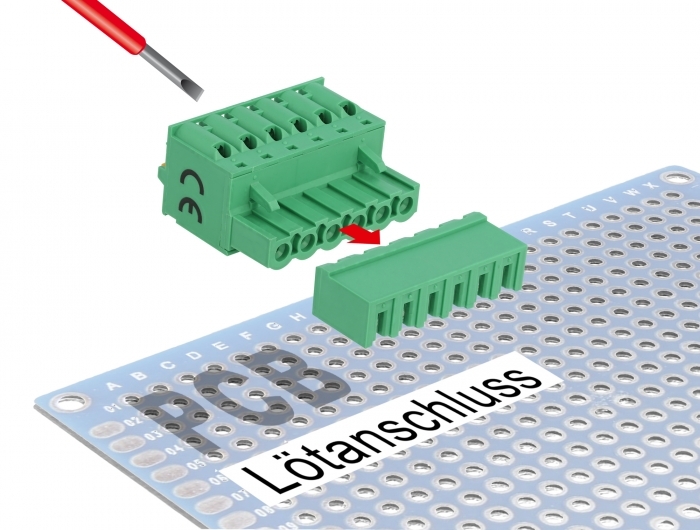

This terminal block set by Delock will be soldered on a PCB board, to create a detachable connection between two components.
Specification:
• Connectors:
  Terminal block:
  1 x 6 pin terminal block male

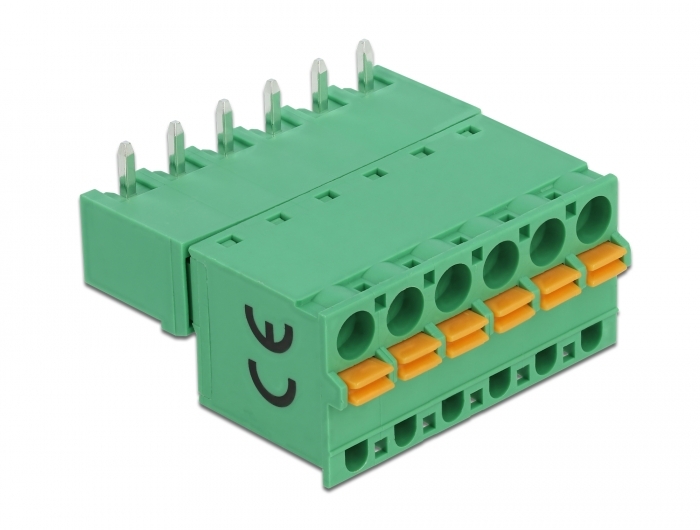

  1 x 6 pin terminal block with push button
  Connection terminal:
  1 x 6 pin terminal block female
  1 x 6 pin terminal block with soldering pin
• Pitch: 5.08 mm
• Environmental temperature: -40 °C ~ 105 °C
• Useable for a cable gauge range from 28 to 12 AWG
• Material: plastic
• Colour: green
• Dimensions (LxWxH): ca. 31.1 x 25.6 x 15.0 mm
Package content:
• Terminal block
• Connection terminal
Data sheet:
http://www.delock.de/produkt/66507/pdf.html?sprache=en
