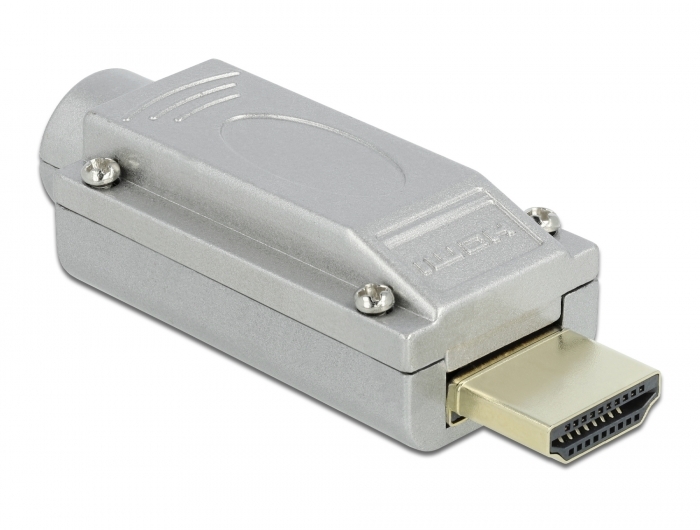

Delock HDMI-A male to Terminal Block Adapter with Metal housing
Previous Next

Delock HDMI-A male to Terminal Block Adapter with Metal housing

DELOCK

65201

New

This terminal block adapter by Delock can be used to connect bare wires. The Adapter is suitable for special industrial applications.

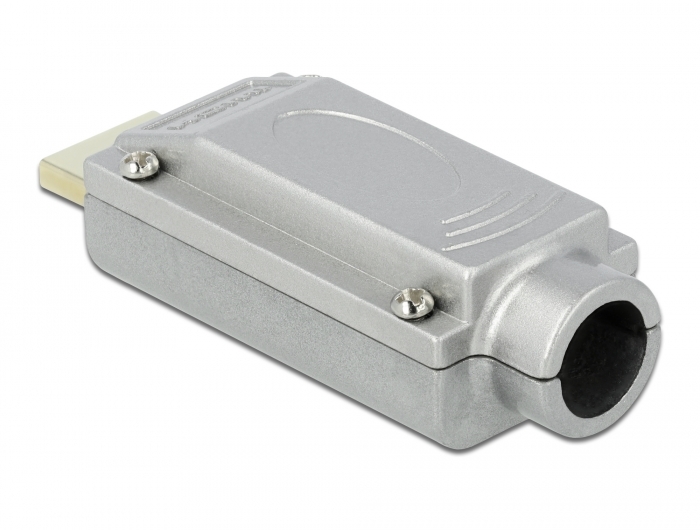

Protection by enclosure
The metal housing protects the PCB from dirt and damage.
Specification:
• Connectors:
  1 x HDMI-A male

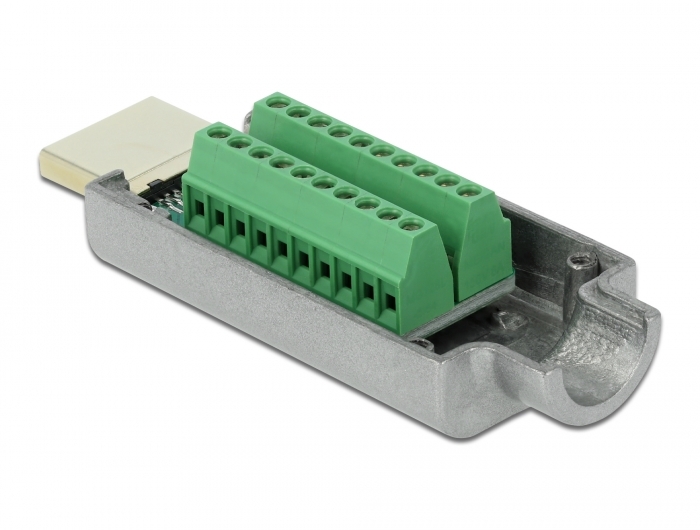

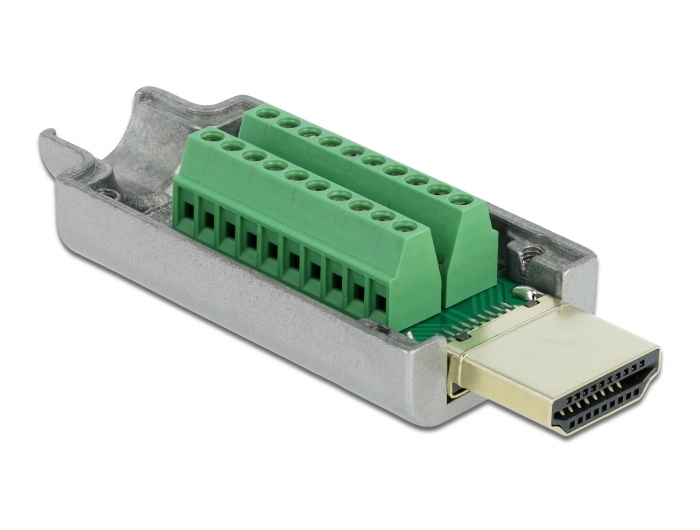

  1 x 20 pin terminal block
• Pin assignment: 1:1
• Pitch: 2.00 mm
• Useable for a cable gauge from 30 to 24 AWG
• Operating temperature: -15 °C ~ 70 °C
• Dimensions (LxWxH): ca. 61.5 x 23.5 x 16.0 mm
Package content:
• Adapter

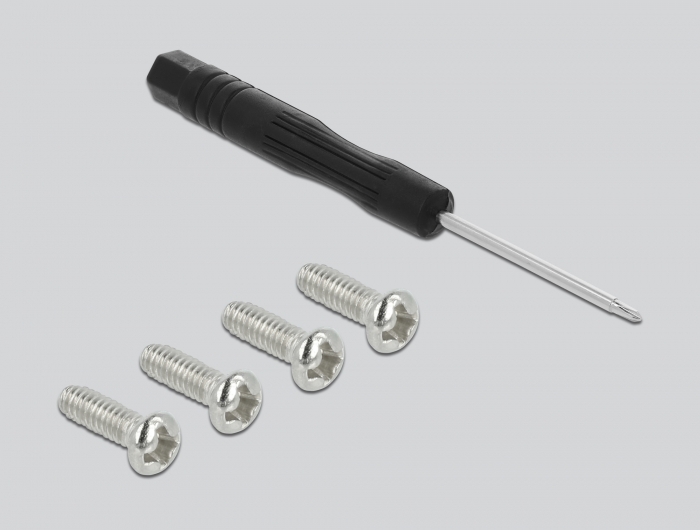

• 2 x locking screws
• 1 x screwdriver
Data sheet:
http://www.delock.de/produkt/65201/pdf.html?sprache=en
