Delock Adapter Sub-D 9 pin female to Terminal Block 9 pin with Push Button

Delock Adapter Sub-D 9 pin female to Terminal Block 9 pin with Push Button

DELOCK

66322

New

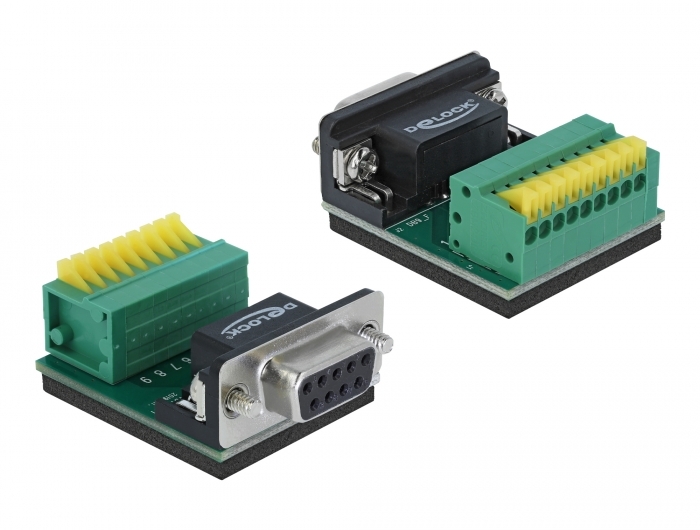

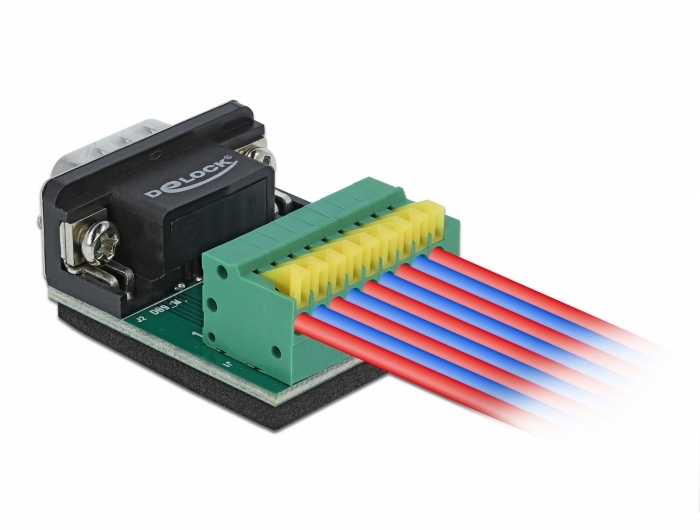

This terminal block adapter by Delock can be used to connect bare wires. Thus the adapter is not only convenient for special industry applications, but also for the hobby area, e.g. railway modelling.
System requirements:
• A free Sub-D 9 pin male
Specification:
• Connectors:
  1 x serial Sub-D 9 female with screws
  1 x 9 pin terminal block with push button
• Pin assignment: 1:1
• Pitch: 2.54 mm
• Useable for a cable gauge from 26 to 20 AWG
• Operating temperature: -20 °C ~ 70 °C
• Dimensions (LxWxH): ca. 36 x 31 x 17 mm
Package content:
• Adapter
Data sheet:
http://www.delock.de/produkt/66322/pdf.html?sprache=en
