Equip Patchpanel 24x RJ45 Cat6A 19" 1HE schwarz

EQUIP

326625

New

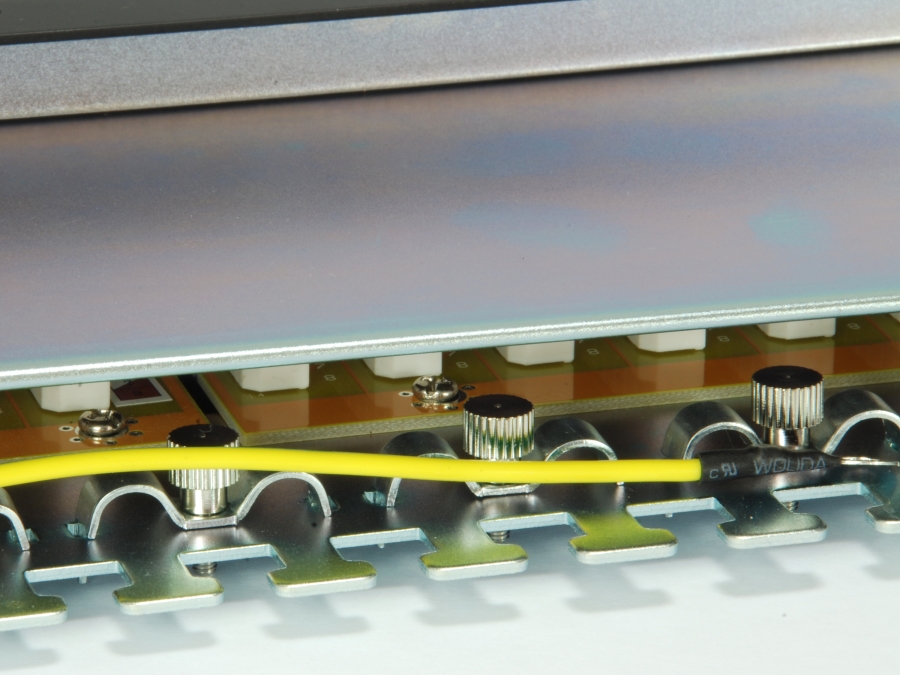

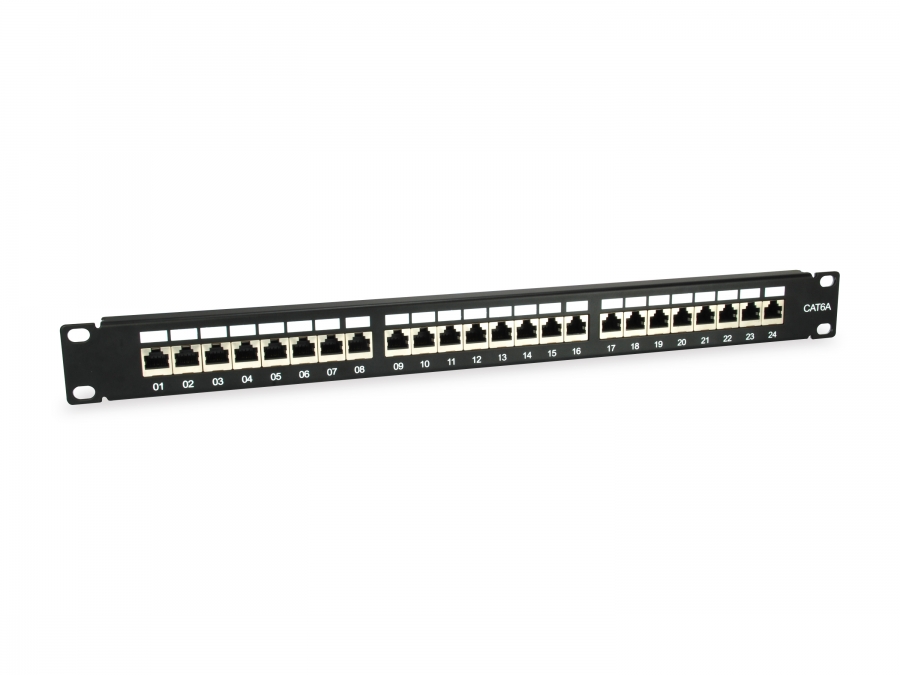

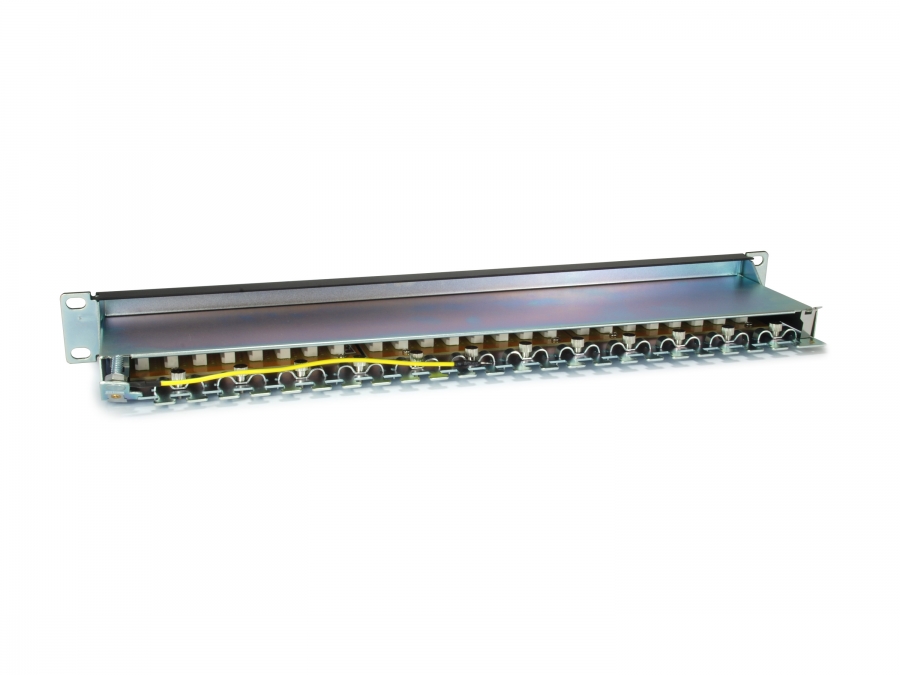

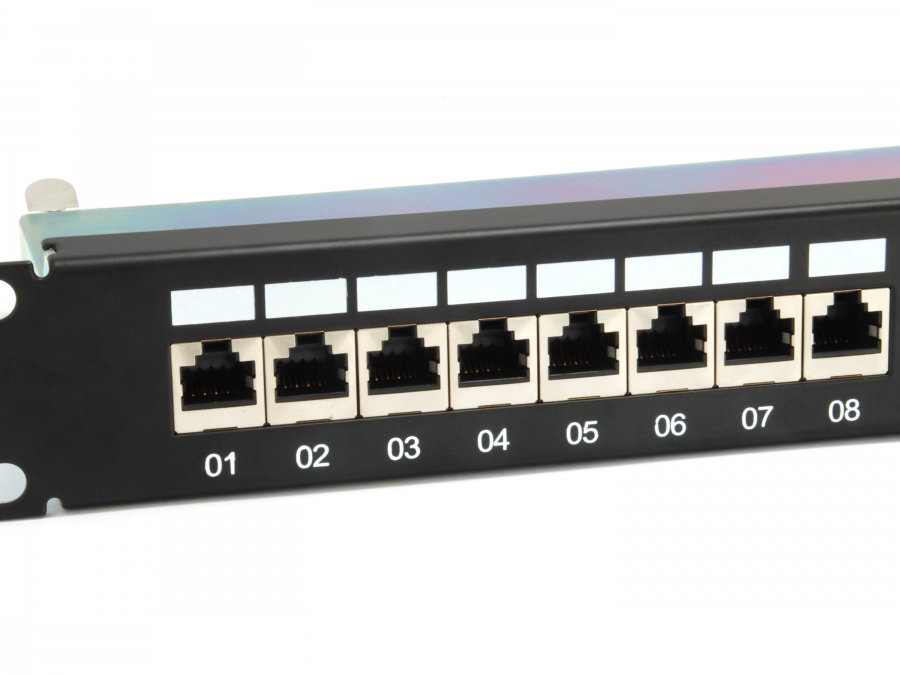

The equip® Cat.6A Patch Panel is a 19" 1U network distribution unit integrating cable management system for better routing and strain relief requirements, suitable for Krone IDC standard. Featuring 24 fully-shielded RJ45 ports, this patch panel is recommended to connect with equip® Cat.6A patch cords and cabling accessories to achieve outstanding 10G performance. Moreover, each port is marked with port number for recognition.

Ports quantity24
Connector(s)RJ-45
Cable types supportedCat6a
Product colourBlack
Rack capacity1U
CertificationCE
Sustainability certificatesRoHS
Width482.6 mm
Height44.5 mm
Depth125 mm
Weight1.87 kg
Package width500 mm
Package depth150 mm
Package height55 mm
Package weight1.95 kg
Harmonized System (HS) code85371098
Master (outer) case width515 mm
Master (outer) case length180 mm
Master (outer) case height320 mm
Master (outer) case gross weight12 kg
Products per master (outer) case6 pc(s)

Switching panels
