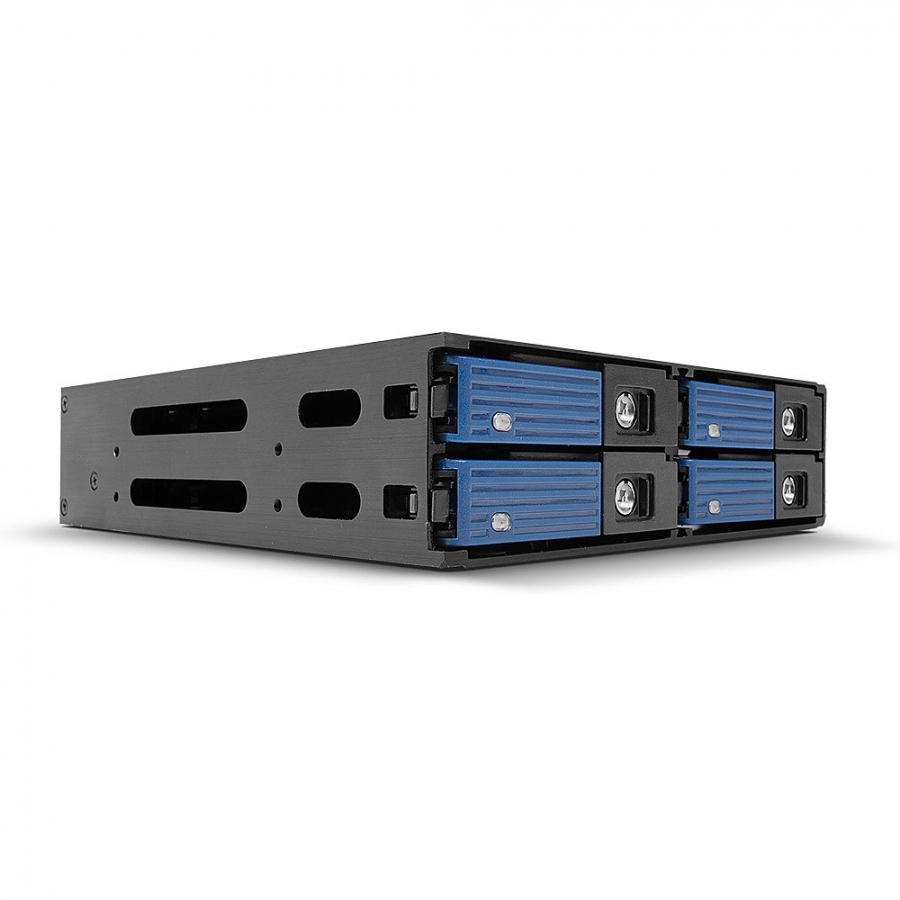

4x 2.5" SAS & SATA HDD RAID Backplane System

Specifications

• Interface: SATA / SAS
• Interface Standard: SATA Rev. 3.0 / SAS
• Supported Bandwidth: 6Gbps
• Special Features: RAID compatible when connected to a suitable RAID controller

Connectors

• Inputs: 4 x SATA 7 pin primary data channel
• Outputs: 4 x SATA/SAS 22 pin SFF-8482
• Power: 1 x SATA 15 pin power connector

Physical Properties

• Dimensions WxDxH: 146x175x42mm (5.75x6.89x1.65in)
• Housing Material: Aluminium; trays in metal and plastic
• Net Weight: 0.672kg (1.48lb)
• Operating Temperature: 0°C - 65°C (32°F - 149°F)
• Storage Temperature: -40°C - 70°C (-40°F - 158°F)
• Humidity: 10~80% RH (non condensing)
• Power Requirements: 2.5W
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 170x240x65mm (6.69x9.45x2.56in)
• Gross Weight: 0.9kg (1.98lb)
• Warranty (Years): 2
• Certificated: RoHS & REACH, CP65

Package content

•  4 x 2.5" SAS & SATA HDD RAID Backplane System
• Polybag with 28 x fixing srews
• 4 x SATA cable
• 2 x Key
• Lindy Manua

Purchasing information

• No.: 21983
• EAN: 4002888219839
