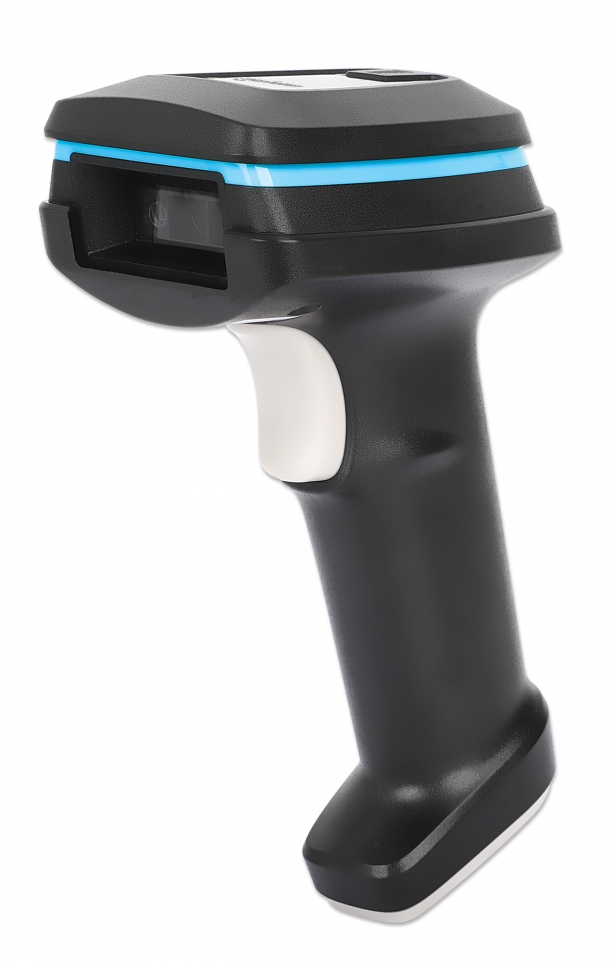

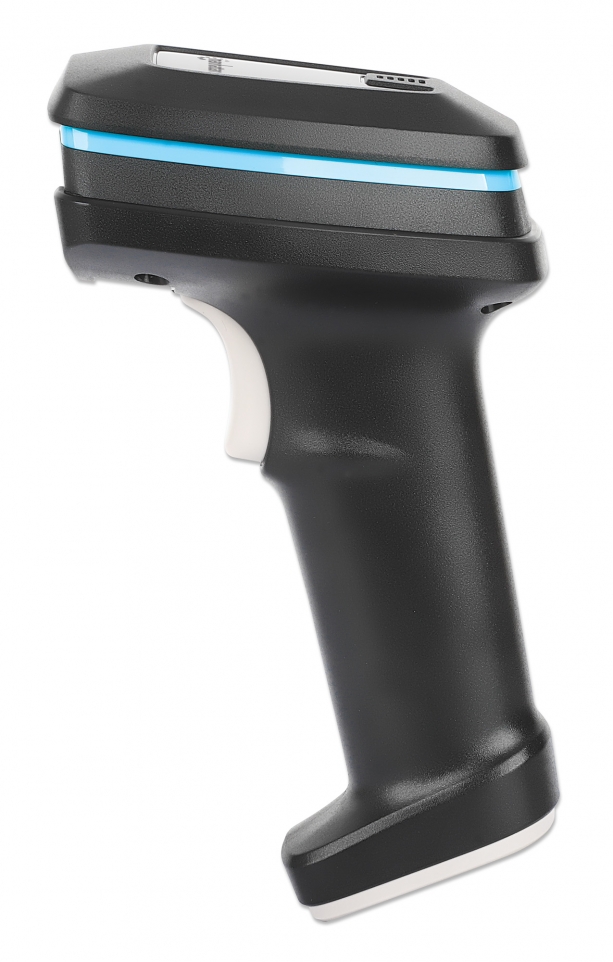

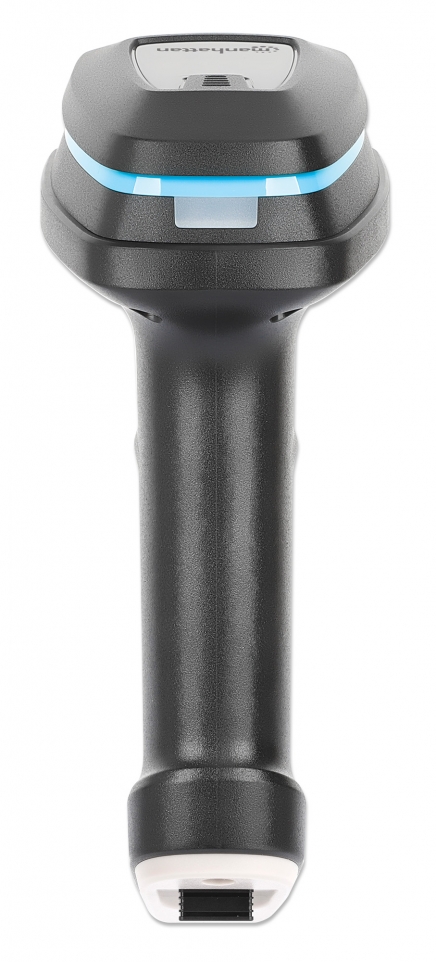

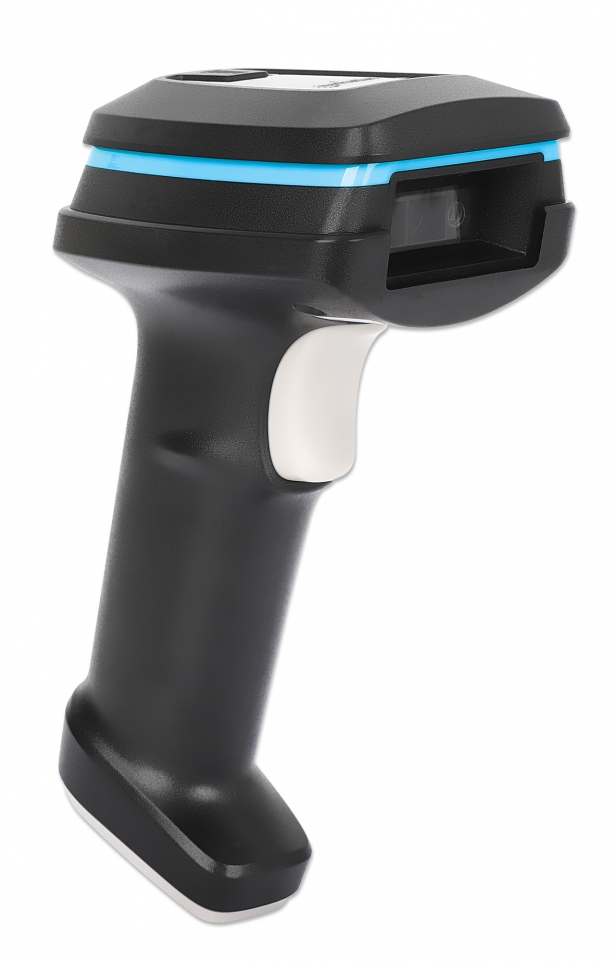

MANHATTAN 2D LED Funk-Barcodescanner 450mm IP52

Manufacturer: MANHATTAN

Reference 154185

Condition: New

More info

Rugged Cordless 1D / 2D USB Barcode Scanner that helps you improve Productivity in Retail, Hospitality, Warehousing, and Harsh Environments
The Manhattan Wireless 2D Long Range LED Barcode Scanner is your durable solution for streamlined data entry and enhanced efficiency to help improve routine transactions and automate paper-based processes. Capture barcodes from mobile devices, 1D and 2D Paper barcodes on items for sale, coupons, loyalty cards and more. This scanner is built for such different industries as retail/point-of-sale, healthcare, hospitality, warehousing or logistics.

Wireless Connectivity with Computers and Mobile Devices
For classic, simple USB plug-and-play installation, just connect the nano receiver to a USB-A port on your PC, MacBook, or similar device. Alternatively, pair the scanner directly via Wireless 4.2 with all devices, including your iPad® and Android tablet. The transmission range from your host device to the scanner is up to 100 m (328 ft.) with the included 2.4 GHz RF dongle or up to 50 m (164 ft.) with Wireless 4.2.

Quick and Accurate Reads Every Time
With its wide scan field and scan depth of up to 450 mm (17.7 in.) , it ensures quick and accurate reads every time. Significantly reduce errors and delays for seamless operations in your daily business.

Versatile Compatibility for Many Symbologies
Equipped with advanced technology, it detects a wide range of popular 1D and 2D symbologies, including UPC, EAN, QR Code, Data Matrix, PDF417, and many more. Whether it's barcodes or intricate QR codes, it handles it all with precision and speed.

Rugged Design for Harsh Environments
Featuring an IP52-rated housing, our scanner is built to withstand harsh environments with protection against dust and water ingress.

Reliable Performance in Any Lighting Condition
Experience maximum reliability even in the most challenging lighting conditions. With an exceptional ambient light tolerance of 100,000 lux, this scanner delivers reliable readings even in direct sunlight, ensuring uninterrupted workflow.

Enhanced Convenience with our Barcode Scanner Stand
For added convenience, pair our scanner with the Manhattan Barcode Scanner Stand #154192 for hands-free operation, ideal for busy retail environments and automated processes.

Type	Handheld bar code reader
Scanner type	1D/2D
Sensor type	LED
Linear (1D) barcodes supported	China Post, Codabar, Code 11, Code 128, Code 39, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, GS1-128 (UCC/EAN-128), ISSN, Industrial 2 of 5, Interleaved 2 of 5, MSI, Matrix 2 of 5, Telepen, UPC-A, UPC-E, JAN-13, JAN-8
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Dot Code A, Grid Matrix Code, MaxiCode, MicroPDF417, PDF417, QR Code
Optical sensor resolution (W x H)	1280 x 800 pixels
1D resolution (min)	0.076 mm
2D resolution (min)	0.18 mm
Working distance	45 cm
Horizontal field of view	45°
Vertical field of view	36°
Read rate (max)	60 reads/s
Light levels (direct sunlight)	0 - 100000 lx
Connectivity technology	Wireless
Standard interfaces	RF Wireless
Wireless range	80 m
Cable length	1 m
Product colour	Black
Housing material	Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code	IP52
Protection features	Drop resistant
Print contrast	20%
Mean time between failures (MTBF)	50000 h
Power source type	Battery
Charging port type	USB Type-C
Battery capacity	2000 mAh
Battery voltage	3.7 V
Charging time	5 h
Power consumption	280 mA
Weight	200 g
Width	67 mm
Depth	87 mm
Height	172 mm
Cables included	USB Type-A to USB Type-C
Receiver included	Jā
Receiver type	Nano receiver
Package width	175 mm
Package depth	80 mm
Package height	108 mm
Package weight	320 g
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 95%
Drop resistance	1.2 m
Warranty period	3 year(s)
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Products per master (outer) case	40 pc(s)
Master (outer) case gross weight	12.8 kg
Master (outer) case length	565 mm
Master (outer) case width	360 mm
Master (outer) case height	400 mm
