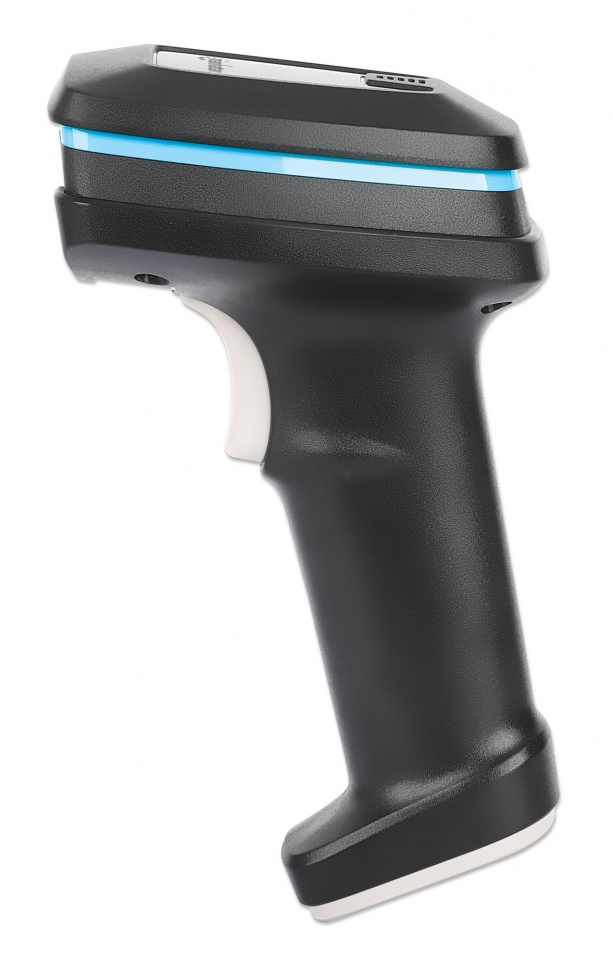

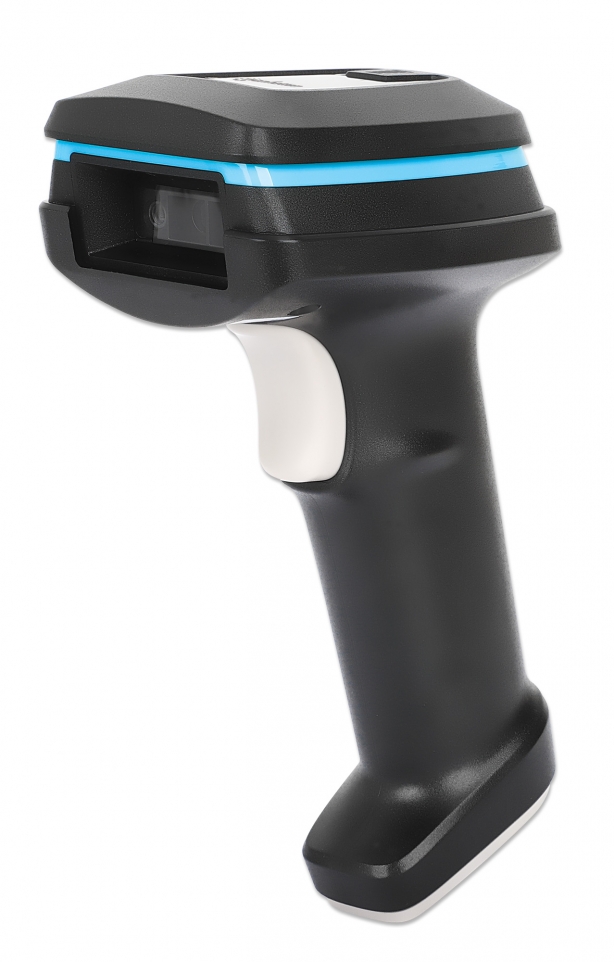

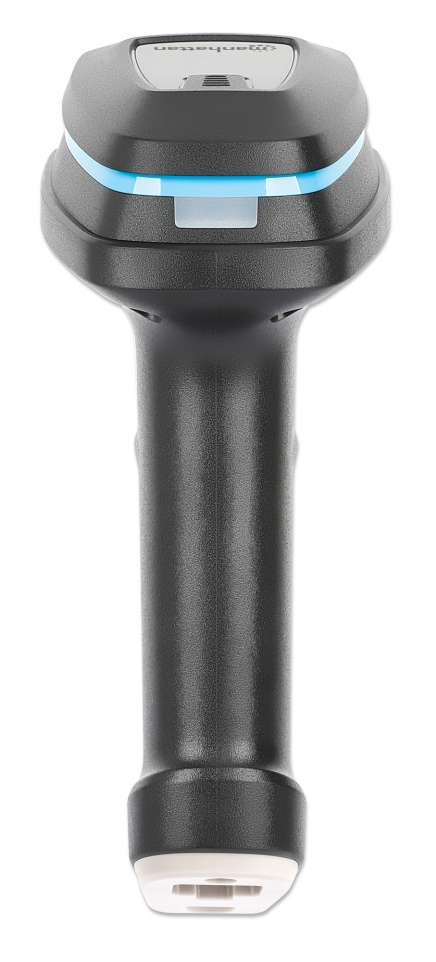

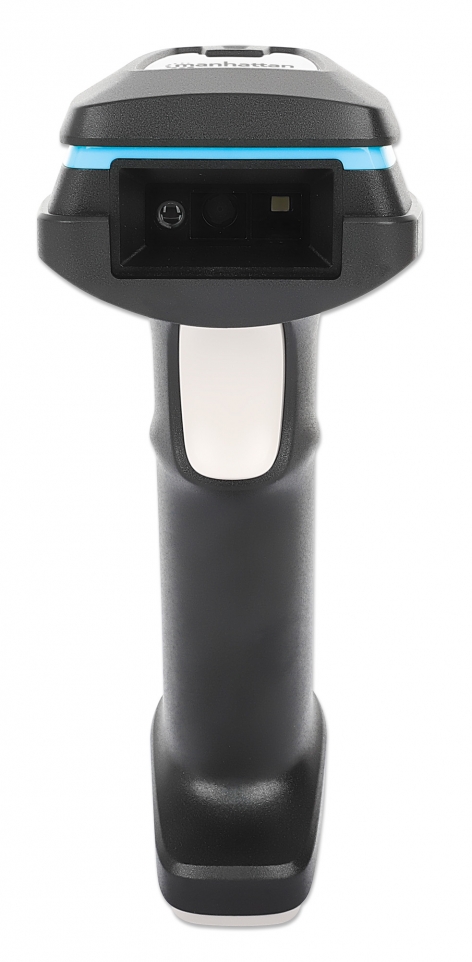

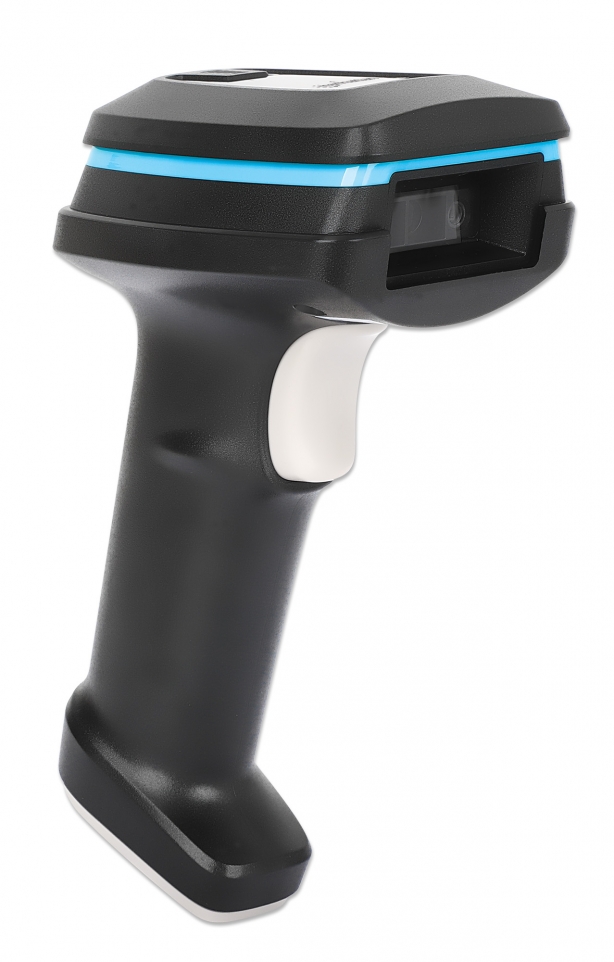

Manhattan 2D LED Barcodescanner 450mm IP52 Handscanner

Manufacturer: MANHATTAN

Reference 154116

Condition: New

More info

Rugged 1D / 2D USB Barcode Scanner that helps you improve Productivity in Retail, Hospitality, Warehousing, and Harsh Environments
The Manhattan 2D LED Barcode Scanner is your durable solution for streamlined data entry and enhanced efficiency to help improve routine transactions and automate paper-based processes. Capture barcodes from mobile devices, 1D and 2D Paper barcodes on items for sale, coupons, loyalty cards and more. This scanner is built for such different industries as retail/point-of-sale, healthcare, hospitality, warehousing or logistics.

Quick and Accurate Reads Every Time
With its wide scan field and scan depth of up to 450 mm (17.7 in.), it ensures quick and accurate reads every time. Significantly reduce errors and delays for seamless operations in your daily business.

Versatile Compatibility for Many Symbologies
Equipped with advanced technology, it detects a wide range of popular 1D and 2D symbologies, including UPC, EAN, QR Code, Data Matrix, PDF417, and many more. Whether it's barcodes or intricate QR codes, it handles it all with precision and speed.

Rugged Design for Harsh Environments
Featuring an IP52-rated housing, our scanner is built to withstand harsh environments with protection against dust and water ingress.

Reliable Performance in Any Lighting Condition
Experience maximum reliability even in the most challenging lighting conditions. With an exceptional ambient light tolerance of 100,000 lux, this scanner delivers reliable readings even in direct sunlight, ensuring uninterrupted workflow.

Plug-and-Play Installation for Effortless Setup
Experience hassle-free installation with easy plug-and-play functionality. No drivers or additional software required, simply connect the USB-A plug and start scanning. Compatible with Windows®, macOS®, Chrome OS™, and Linux®, it seamlessly integrates with your existing systems. Its wired USB connectivity ensures reliable performance without the hassle of changing batteries.

Enhanced Convenience with our Barcode Scanner Stand
For added convenience, pair our scanner with the Manhattan Barcode Scanner Stand #154192 for hands-free operation, ideal for busy retail environments and automated processes.

Type	Handheld bar code reader
Scanner type	1D/2D
Sensor type	LED
Linear (1D) barcodes supported	China Post, Code 11, Code 128, Code 39, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, GS1-128 (UCC/EAN-128), ISSN, Industrial 2 of 5, Interleaved 2 of 5, MSI, Matrix 2 of 5, Telepen, UPC-A, UPC-E, JAN-13, JAN-8
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Dot Code A, Grid Matrix Code, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Optical sensor resolution (W x H)	1280 x 800 pixels
1D resolution (min)	0.076 mm
2D resolution (min)	0.18 mm
Working distance	45 cm
Horizontal field of view	45°
Vertical field of view	36°
Read rate (max)	60 reads/s
Light levels (direct sunlight)	0 - 100000 lx
Connectivity technology	Wired
Standard interfaces	USB
Cable length	1.8 m
Product colour	Black
Housing material	Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code	IP52
Protection features	Drop resistant
Mean time between failures (MTBF)	50000 h
Power source type	USB
Input voltage	5 V
Power consumption	280 mA
Weight	220 g
Width	67 mm
Depth	87 mm
Height	172 mm
Cables included	USB Type-A
Package width	175 mm
Package depth	80 mm
Package height	108 mm
Package weight	320 g
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 95%
Drop resistance	1.2 m
Warranty period	3 year(s)
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Products per master (outer) case	40 pc(s)
Master (outer) case gross weight	12.8 kg
Master (outer) case length	565 mm
Master (outer) case width	360 mm
Master (outer) case height	400 mm
