Delock Charging Station for Ring Scanner 90607

DELOCK

90608

New

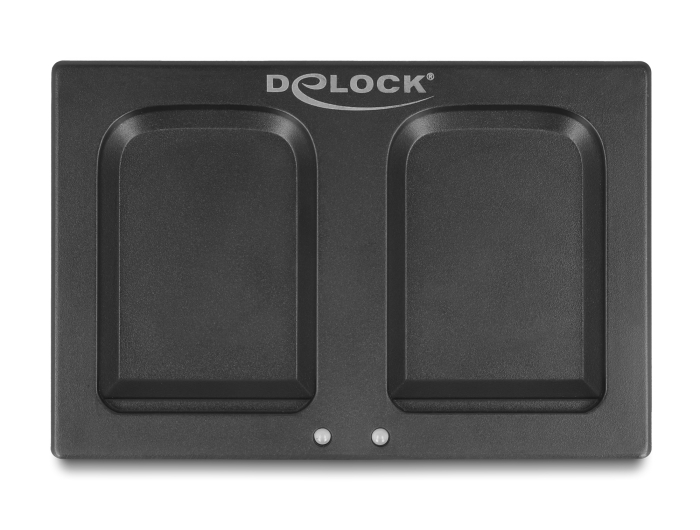

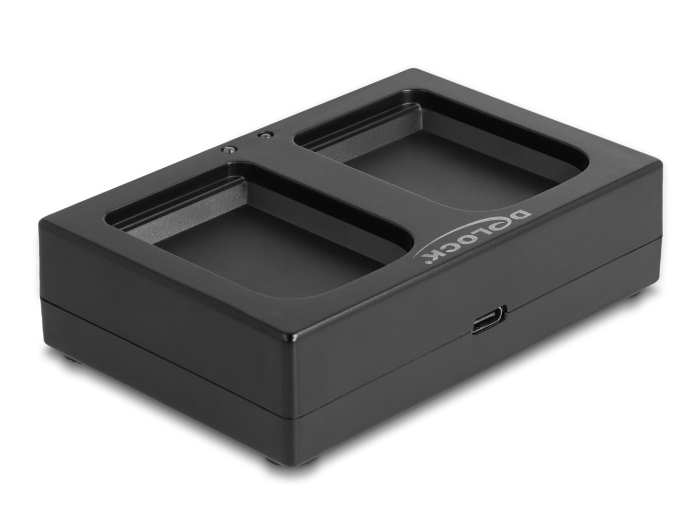

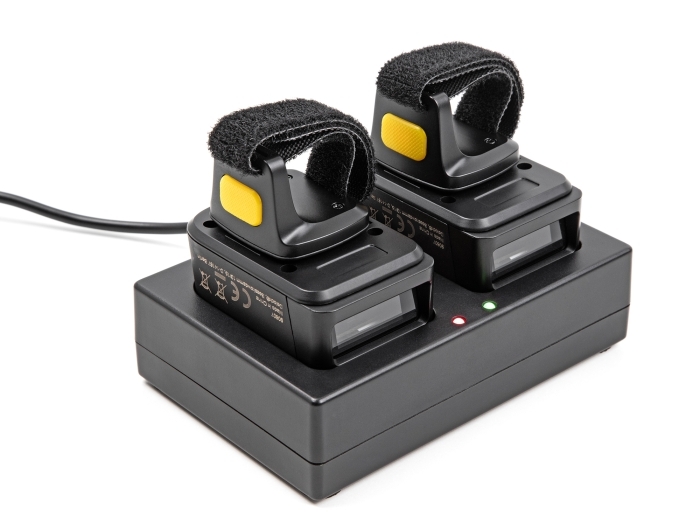

This charging station by Delock is suitable for simultaneously charging two ring scanners via inductive charging.

Note
• Power supply via USB Type-C™ (power supply unit and cable not included, cable can be used by the scanner)
System requirements:
• Suitable Ring scanner 90607
Specification:

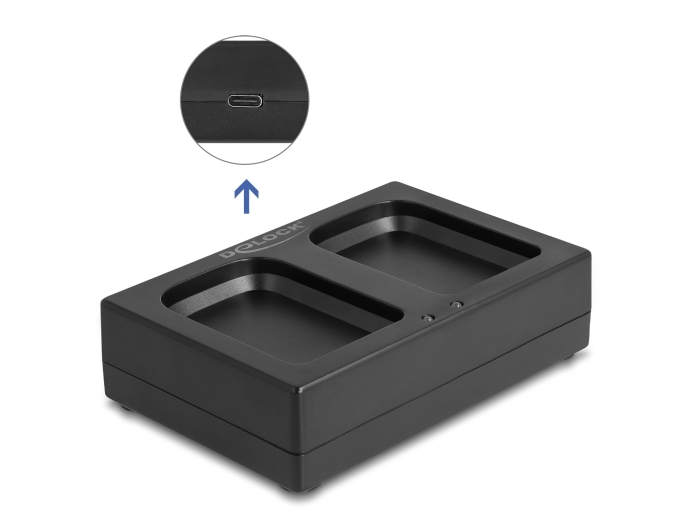

• Connector: 1 x USB Type-C™ female
• Input voltage: 5 V
• Charging power: max. 5 W
• Frequency range: 100 - 200 kHz
• Transmission power: max. 5 W
• 2 x LED for power
• Anti-Slip base
• Average active efficiency 50.00 %
• Efficiency at low load (10 %) 40.00 %
• No-load power consumption 0.15 W
• Operating temperature: -15 °C ~ 50 °C
• Storage temperature: - 10 ℃ ~ 40° C
• Relative humidity: 0 - 62 % (non condensing)
• Colour: black
• Weight: ca. 140 g
• Dimensions (LxWxH): ca. 115 x 68 x 22 mm
Package content:
• Charging cradle
• User manual
Data sheet:
http://www.delock.de/produkt/90608/pdf.html?sprache=en
