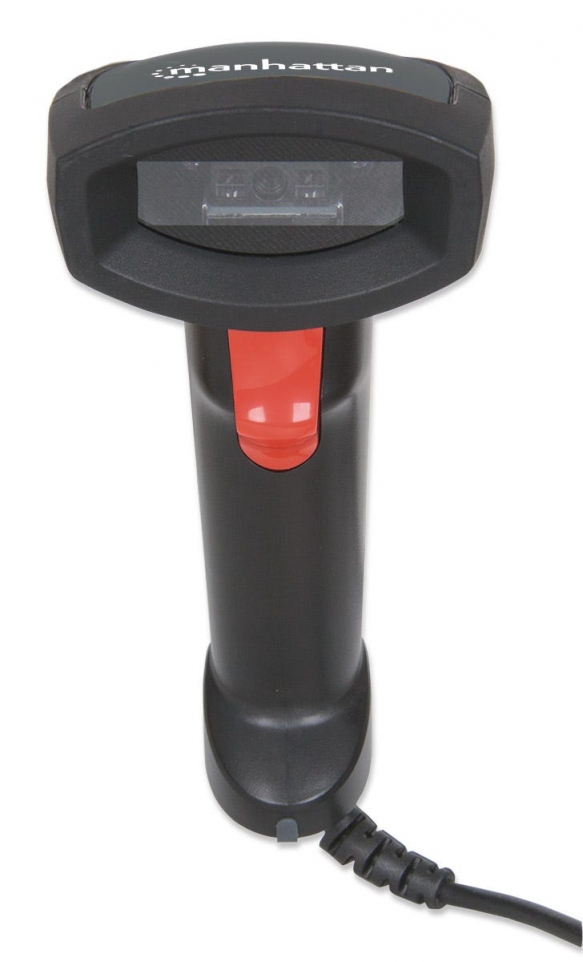

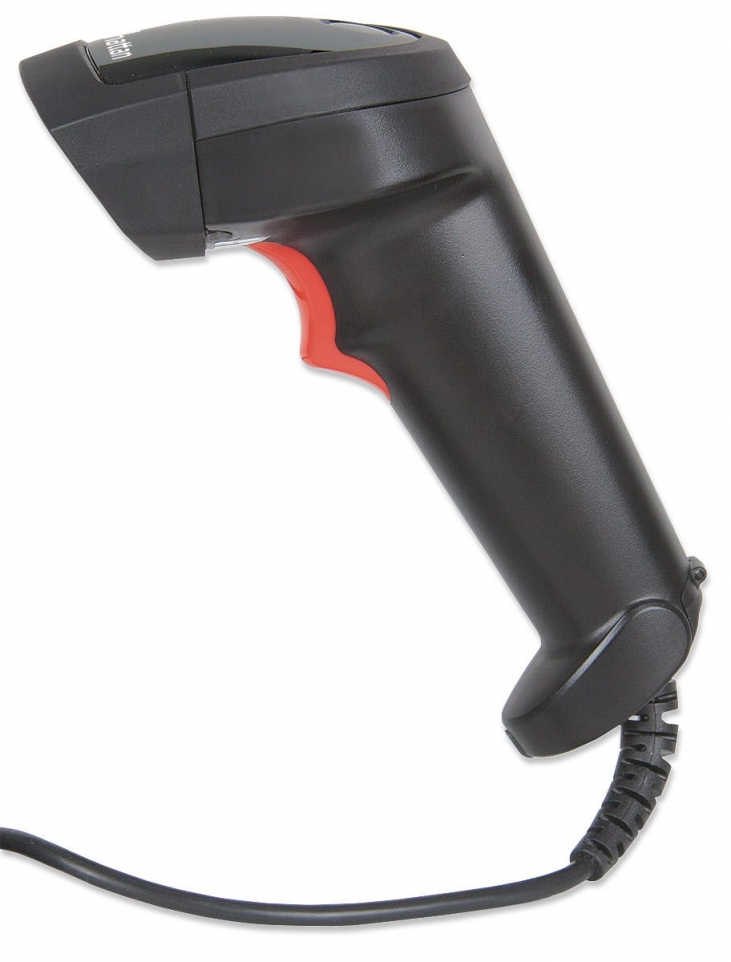

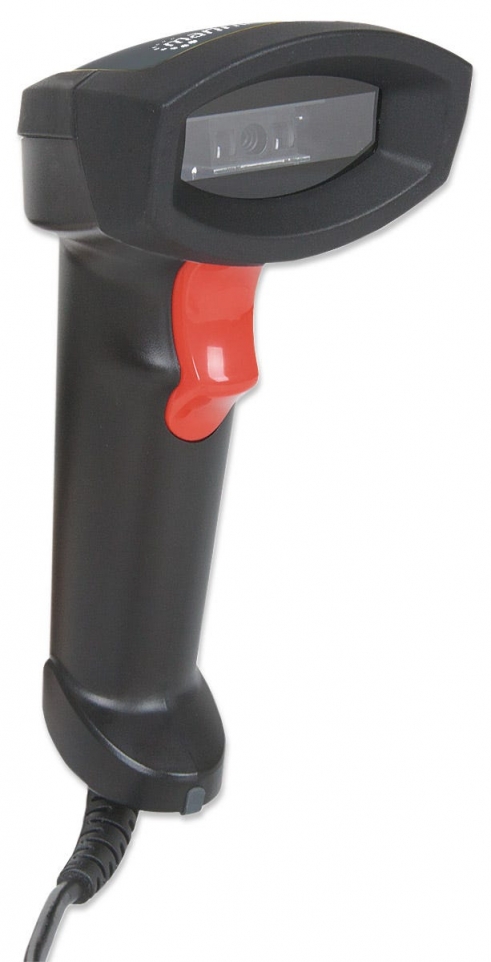

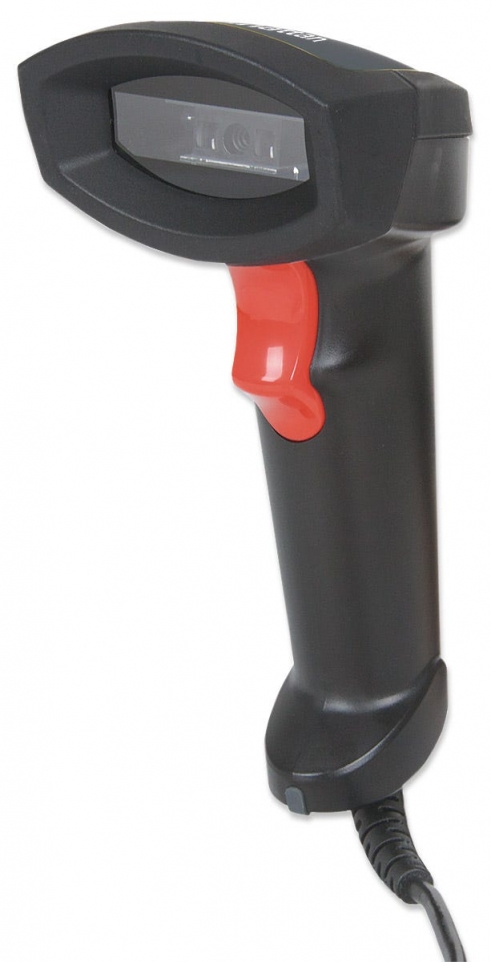

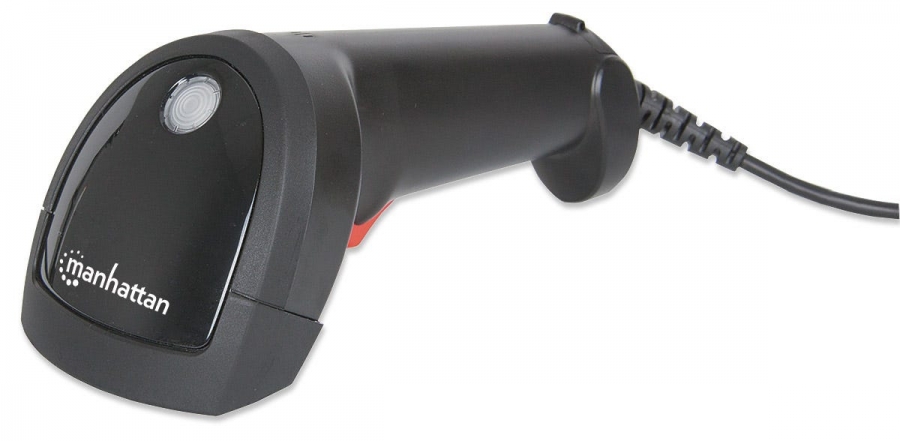

Improve speed, accuracy and productivity._x000D_ _x000D_ _x000D_ Manhattan Linear CCD Barcode Scanners deliver high-quality scanning for a wide range of data collection functions to help improve routine transactions, automate paper-based processes and increase productivity. The CCD (charged-coupled device) scan engine features no moving parts, and has a rugged impact-resistant housing for years of reliable service of reading popular barcodes, including UPC, EAN, ASCII and GS1 DataBar. Easy to implement and simple to use, a built-in keyboard wedge decoder sends scanned data to an active application, where it appears as if it were manually typed or directly keyed into the computer. With a scan rate of 500 scans per second and an accurate read range of up to 500 mm (20 in.), this model offers a high-performance, all-purpose daily scanning solution for point-of-sale, shipping, warehousing, office and industrial applications to minimize manual data entry, speed transactions and reduce errors.
|
| Type | Handheld bar code reader | | Scanner type | 1D | | Sensor type | CCD | | Linear (1D) barcodes supported | Code 11, Code 128, Code 32, Code 39, Code 93, GS1-128 (UCC/EAN-128), JAN | | 2D (matrix & stacked) barcodes supported | Not supported | | Working distance | 50 cm | | Read rate (max) | 500 reads/s | | Light levels (direct sunlight) | 0 - 10000 lx | | Wavelength | 632 nm | | Maximum scan width | 50 cm | | Connectivity technology | Wired | | Standard interfaces | Keyboard wedge, RS-232, USB | | Product colour | Black | | Housing material | Acrylonitrile butadiene styrene (ABS), Rubber | | International Protection (IP) code | IP54 | | LED indicators | Y | | Certification | FCC, CE, RoHS | | Input voltage | 5 V | | Power consumption | 70 mA | | Weight | 150 g | | Width | 70 mm | | Depth | 180 mm | | Height | 70 mm | | Operating temperature (T-T) | 0 - 50 °C | | Storage temperature (T-T) | -20 - 60 °C | | Operating relative humidity (H-H) | 20 - 95% | | Harmonized System (HS) code | 84716070 |
|
