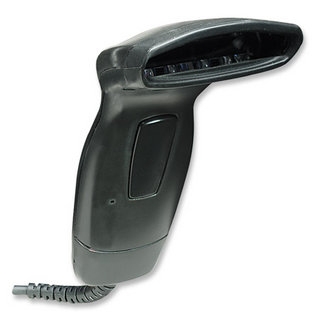

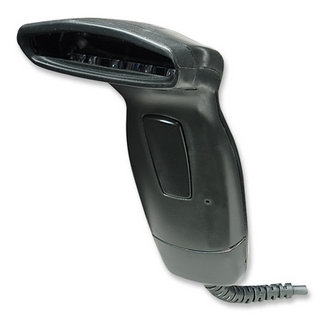

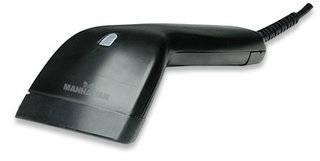

Improve speed, accuracy and productivity._x000D_ Manhattan CCD Contact Barcode Scanners deliver high-quality scanning for a wide range of data collection functions to help improve routine transactions, automate paper-based processes and increase productivity. The CCD (charged-coupled device) scan engine features no moving parts for years of reliable service reading popular barcodes including UPC, EAN and GS1 DataBar. Easy to implement and simple to use, a built-in keyboard wedge decoder sends scanned data to an active application where it appears as if it was manually typed or directly keyed into the computer. Its versatile switchable USB or PS/2 cable interface integrates with most PCs without an external power supply. With a scan rate of 200 scans per second and an accurate read range of up to 100 mm (4 in.), this model offers a high-performance daily scanning solution for point-of-sale, shipping, warehousing, office and industrial applications to minimize manual data entry, speed transactions and reduce errors.
|
| Type | Handheld bar code reader | | Scanner type | 1D | | Sensor type | CCD | | Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, JAN, MSI, Plessey, Telepen | | 2D (matrix & stacked) barcodes supported | Not supported | | Working distance | 10 cm | | Read rate (max) | 200 reads/s | | Light levels (direct sunlight) | 0 - 50000 lx | | Maximum scan width | 5 cm | | Decoding standards | UPC/EAN/JAN, Addon 2/5, Code 39, Code 39 Full ASCII, Code 11, Matrix 25, Code 128, Code 93, Interleave 25, Industrial 25, Codabar/MW7, MSI/PLESSEY, China Postage, Code2 of 6, LCD25, Telepen, GS1 DataBar | | Connectivity technology | Wired | | Standard interfaces | USB | | Cable length | 1.5 m | | Product colour | Black | | Housing material | Acrylonitrile butadiene styrene (ABS), Rubber | | Certification | FCC, CE | | Power source type | USB | | Input voltage | 5 V | | Power consumption | 120 mA | | Weight | 320 g | | Width | 71.2 mm | | Depth | 156.9 mm | | Height | 44.8 mm | | Operating temperature (T-T) | 0 - 50 °C | | Storage temperature (T-T) | -20 - 70 °C | | Operating relative humidity (H-H) | 20 - 95% | | Harmonized System (HS) code | 84716070 |
|
