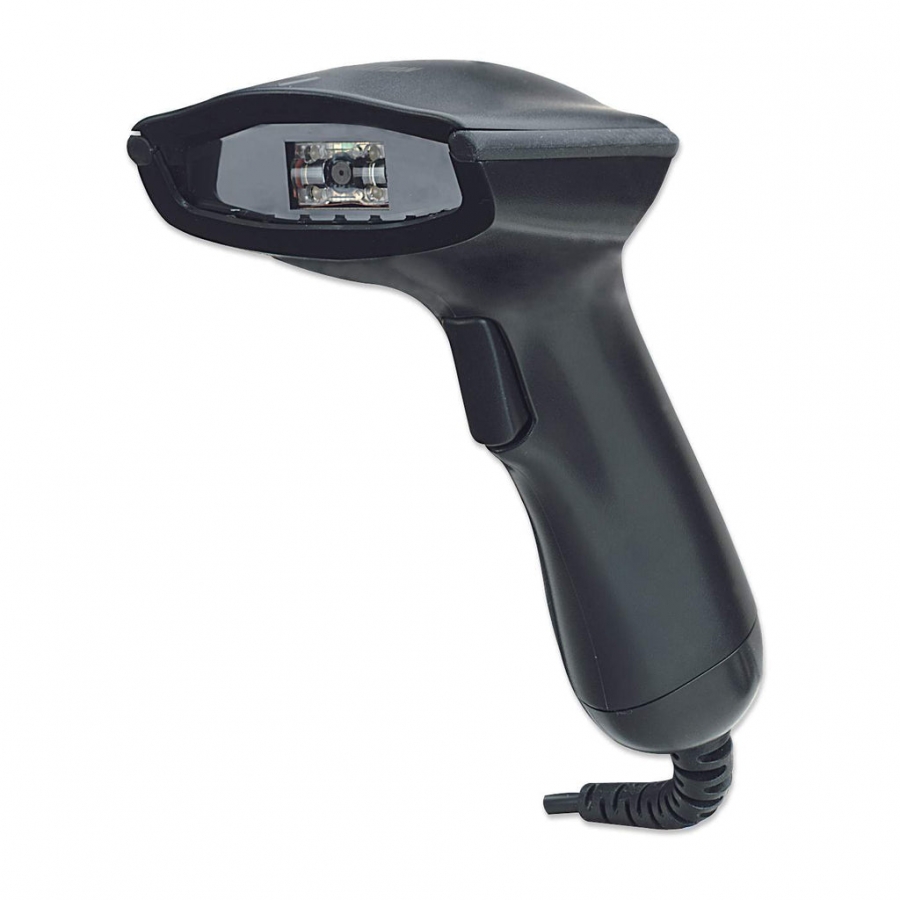

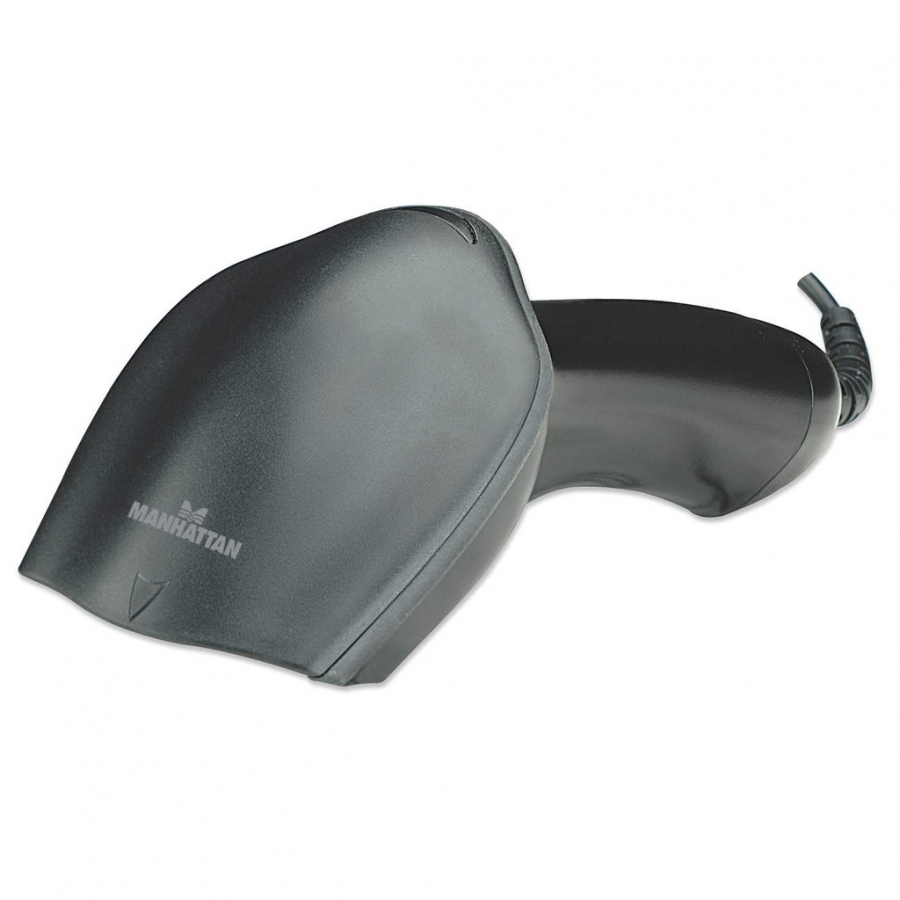

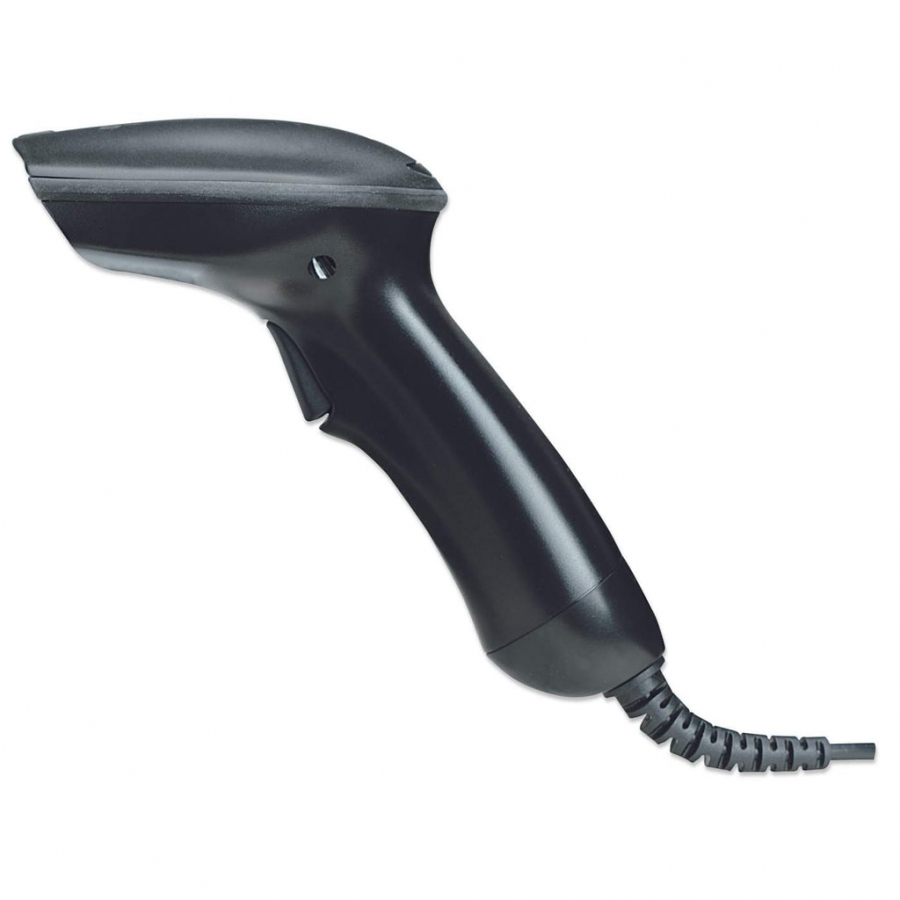

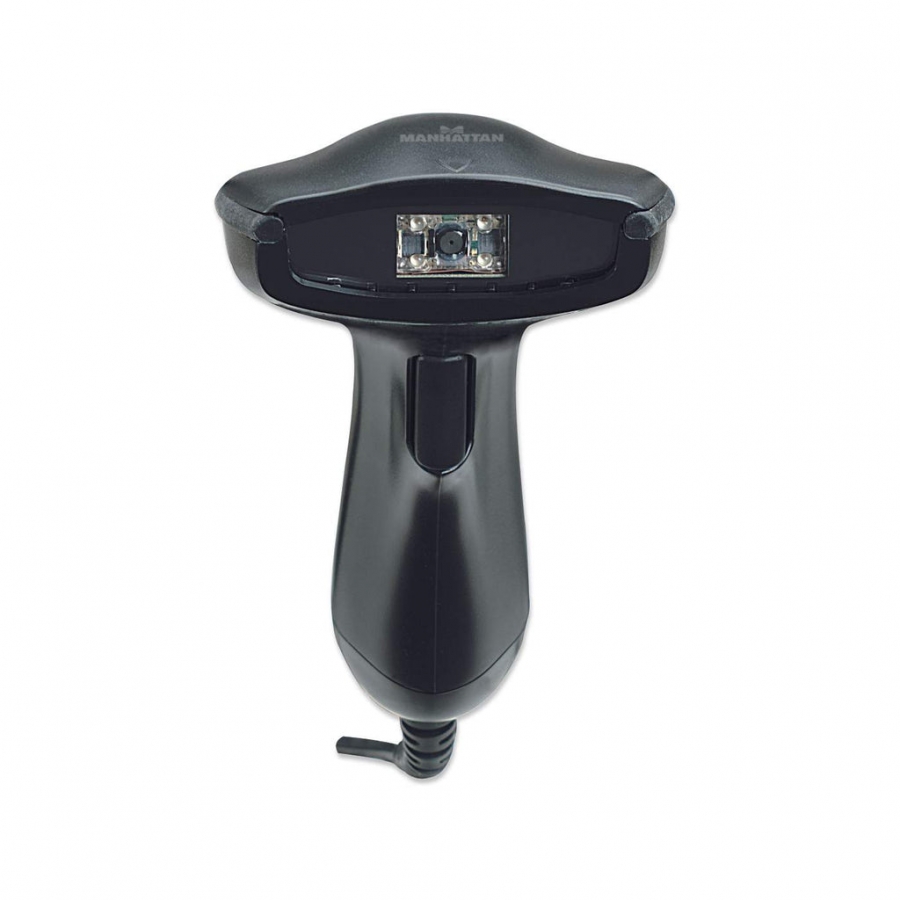

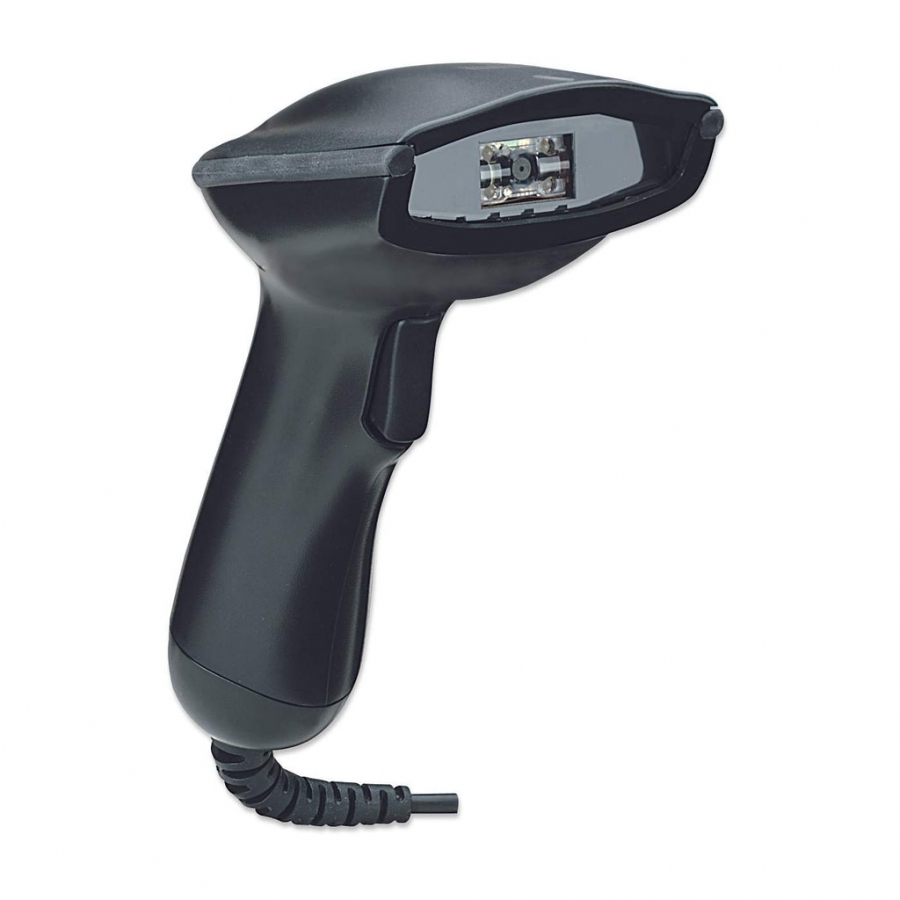

Improve speed, accuracy and productivity._x000D_ the Manhattan 2D Barcode Scanner delivers high-quality scanning for a wide range of data collection functions to help improve routine transactions, automate paper-based processes and increase productivity. The 2D scan engine offers speed, accuracy and greater tolerances for reliable service reading popular 1D and 2D barcodes including UPC/EAN, UCC/EAN128, Data Matrix, PDF 417, Maxicode and more. _x000D_ _x000D_ Easy to implement and simple to use, a built-in keyboard wedge decoder sends scanned data to an active application, where it appears as if it were manually typed or directly keyed into the computer. Its versatile USB interface and bus power integrate with most PCs without the need of an external power supply or complicated installation. With a scan rate of 200 scans per second and an accurate read range of up to 430 mm (17 in.), the Manhattan 2D Barcode Scanner offers a practical daily scanning solution for point-of-sale, postal, hospitality, travel, shipping, warehousing, office and other commercial and industrial applications to minimize manual data entry, speed transactions and reduce errors.
|
| Type | Handheld bar code reader | | Scanner type | 2D | | Sensor type | Laser | | Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, Industrial 2 of 5, Interleaved 2 of 5, MSI, Plessey, Telepen | | 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code | | Optical sensor resolution (W x H) | 752 x 480 pixels | | Read rate (max) | 200 reads/s | | Light levels (direct sunlight) | 0 - 100000 lx | | Wavelength | 650 nm | | Maximum scan width | 43 cm | | Connectivity technology | Wired | | Standard interfaces | USB | | Cable length | 1.5 m | | Product colour | Black | | Housing material | Acrylonitrile butadiene styrene (ABS) | | Certification | FCC, CE, UL | | Power source type | DC | | Input voltage | 5 V | | Power consumption | 435 mA | | Weight | 135 g | | Width | 90 mm | | Depth | 193 mm | | Height | 72 mm | | Operating temperature (T-T) | 0 - 50 °C | | Storage temperature (T-T) | -20 - 70 °C | | Operating relative humidity (H-H) | 20 - 95% | | Harmonized System (HS) code | 84716070 |
|
