Delock Trigger Module for built-in scanner 90603

Delock Trigger Module for built-in scanner 90603

DELOCK

90604

New

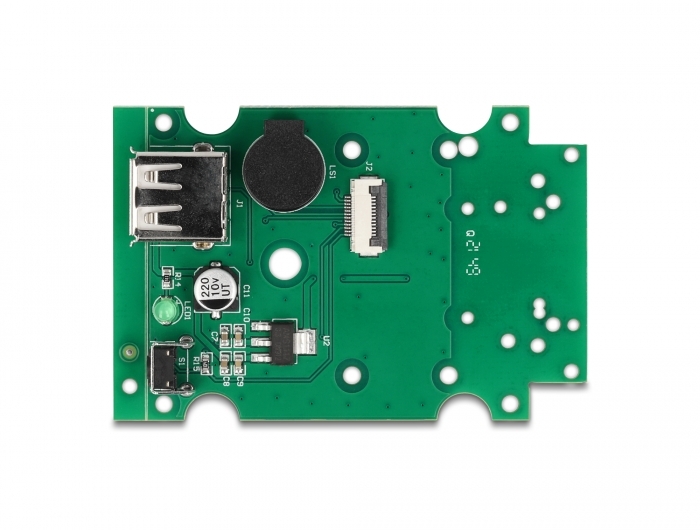

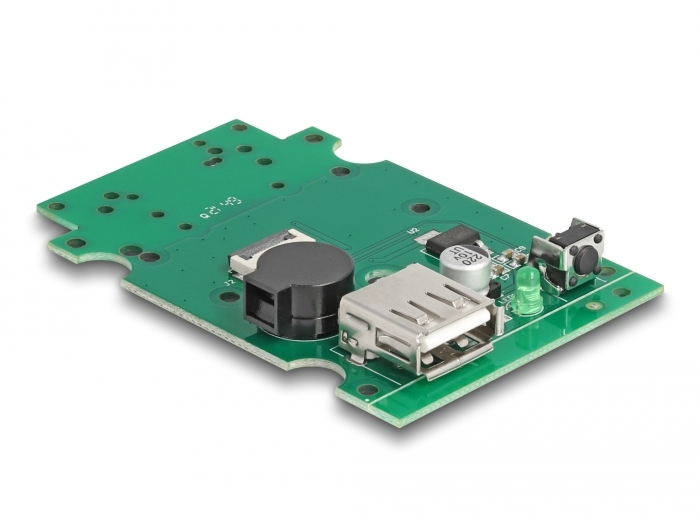

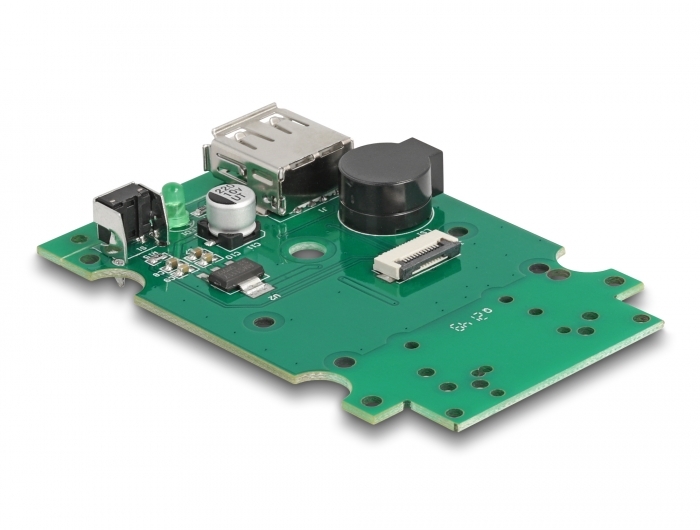

This PCB by Delock is the suitable accessory for the Delock scanner module 90603.

How it works
A suitable module (e.g. 90603) with an FPC 12 pin connector is required for the test board. The test board itself will be connected to the system via a USB cable. The push button serves as a trigger for the scanner module and initiates a scan.

Note
The test board is not intended for installation.
System requirements:
• Suitable FPC cable
• Suitable USB Type-A cable
• Suitable scanner module, e.g. 90603
Specification:
• Connectors:
  1 x FPC 12 pin female
  1 x USB 2.0 Type-A female
• Push-button
• LED indicator for power
• Dimensions (LxWxH): ca. 65 x 45 x 11 mm
Package content:
• Test board
Data sheet:
http://www.delock.de/produkt/90604/pdf.html?sprache=en
