> >>Delock Barcode Scanner Module 1D and 2D - German Version
Delock Barcode Scanner Module 1D and 2D - German Version

Delock Barcode Scanner Module 1D and 2D - German Version

DELOCK

90603

New

This barcode scanner module by Delock can be used for installation in any housing.

Small but powerful

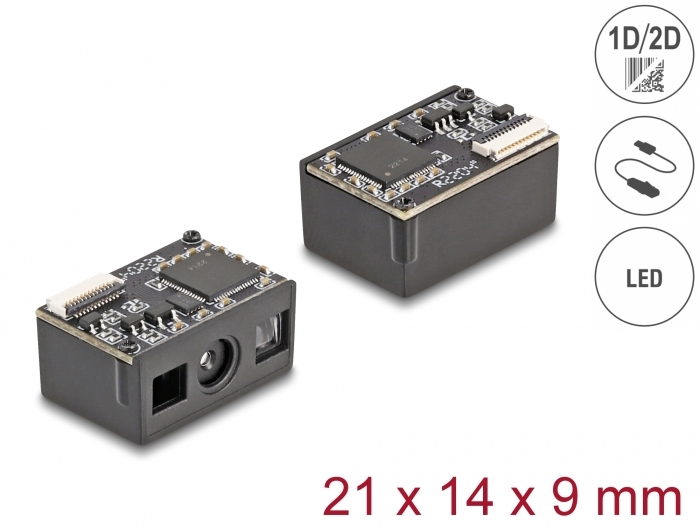

The module convinces with a size of 21 x 14 x 9 mm. All common 1D and 2D barcode types can be precisely captured even at long distances. Additionally, the scanner recognizes barcodes displayed on displays and monitors.

Automatic adaptation to ambient brightness
The scanner automatically adapts to the ambient brightness and captures up to 30 scans per second under optimal lighting conditions.
In low ambient brightness, the barcode is illuminated by an additional white LED and can therefore also be used in poor lighting conditions.

Note
This module is intended exclusively for the output of the German keyboard.
System requirements:
• Android 11 or above
• iPad Pro (2018)
• Linux Kernel 5.15 or above
• Mac OS 12.4 or above
• Windows 8.1/8.1-64/10/10-64/11
Specification:

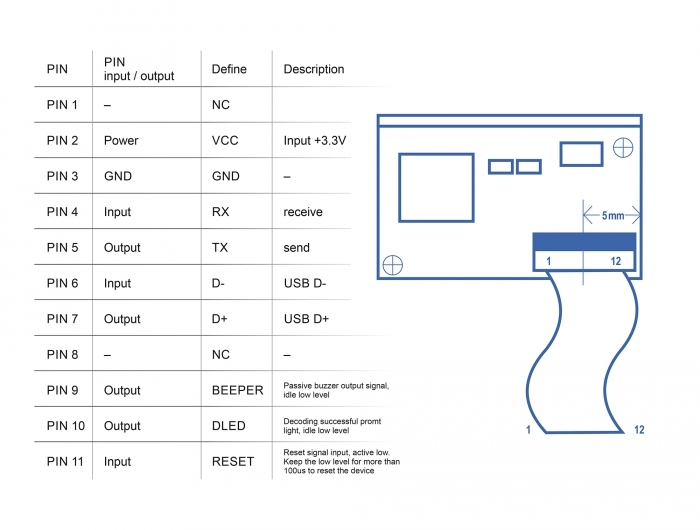

• Connector: FPC 12 Pin female
• Decoding chip: ARM Cortex 32 Bit
• Resolution: max. 640 x 480
• Reading distance: ca. 30 mm to 350 mm
• Reading accuracy: 4 mil
• Light colour: visible LED red
• Compensation light: LED white
• Sensor: CMOS image sensor
• Scan rate: up to 30 scans per second
• Scan angle: 44°
• Surrounding brightness: max. 100000 Lux
• Input voltage: 5 V
• Current consumption:
  operation: max. 110mA
  standby: max. 60mA
• Operating temperature: -20 °C ~ 60 °C
• Storage temperature: -40 °C ~ 80 °C
• Relative humidity: 0 - 95 % (non condensing)
• Colour: black
• Weight: ca. 2 g
• Dimensions (LxWxH): ca. 21 x 14 x 9 mm
• Scancodes:
  Code 128
  Code 39
  Interleaved 2 of 5
  EAN-8 / EAN-13
  ISBN - 13
  Data Matrix
  PDF417
  QR Code
Package content:
• Barcode scanner module

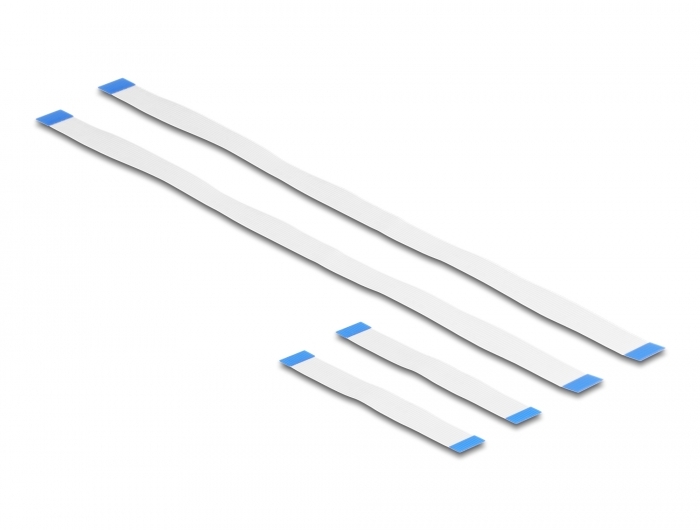

• 2 x FPC 12 Pin Flat ribbon cable ca. 6 cm
• 2 x FPC 12 PinFlat ribbon cable ca. 20 cm
• User manual
Data sheet:
http://www.delock.de/produkt/90603/pdf.html?sprache=en
