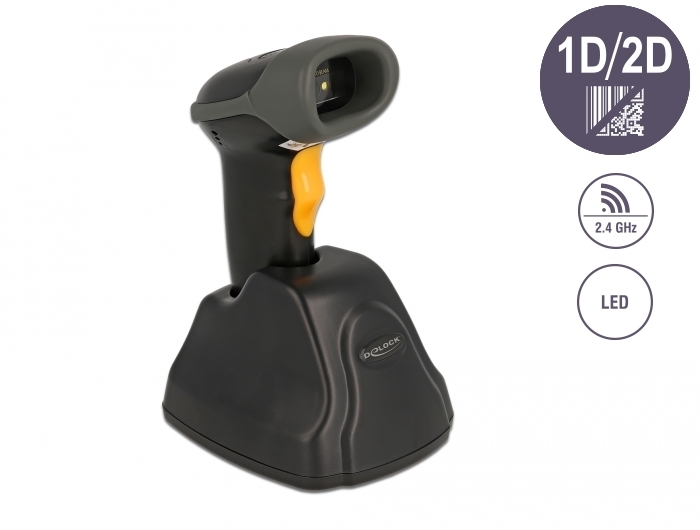

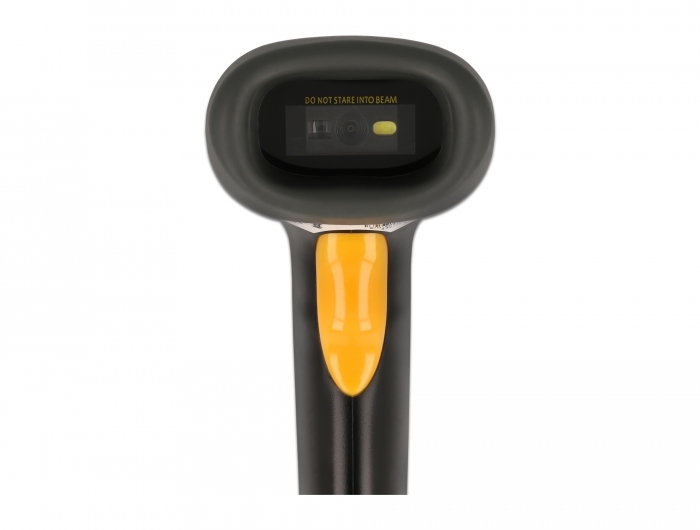

Delock 2.4 GHz Barcode Scanner 1D and 2D with charging station

DELOCK

90518

New

This barcode scanner by Delock can be wirelessly connected to a PC or laptop. All common 1D and 2D barcode types can be precisely captured even at long distances. Additionally, the scanner recognizes barcodes displayed on displays and monitors.

Automatic adaptation to ambient brightness
The scanner automatically adapts to the ambient brightness and captures up to 200 scans per second under optimal lighting conditions.
In low ambient brightness, the barcode is illuminated by an additional white LED and can therefore also be used in poor lighting conditions.

Charging station acts as interface

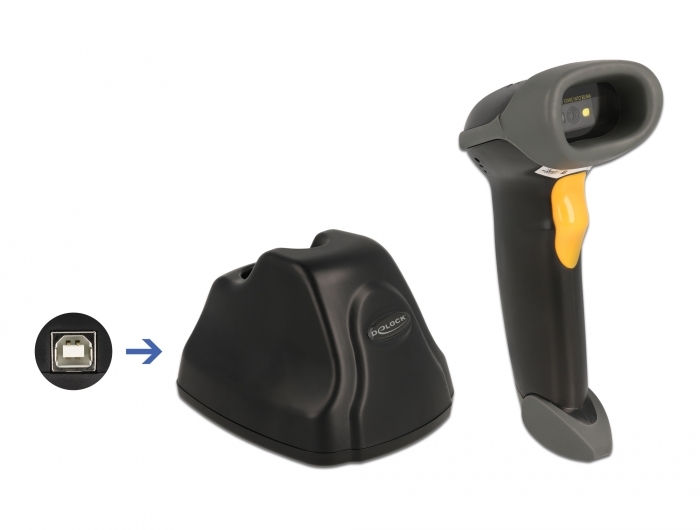

The data transfer of the scanned barcodes is done via the 2.4 GHz frequency band. In addition to charging the hand scanner, the scanner's charging station also functions as a 2.4 GHz interface and is connected to the system via USB cable.
Using an optional adapter cable, it is possible to connect the charging station to a smartphone or tablet.
System requirements:
• Android 9.0 or above
• Chrome OS
• iPad Pro (2018)
• Linux Kernel 5.4 or above
• Mac OS 10.15.6 or above
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port for charging station
Specification:
• Connector: 1 x USB 2.0 Type-B female
• Rechargeable battery: Li-Polymer battery 2000 mAh
• Decoding chip: ARM Cortex 32 Bit
• Resolution: max. 640 x 480
• Trigger: scan button
• Reading distance: ca. 40 mm to 250 mm
• Reading accuracy: 5 - 10 mil
• Range:
  indoor area: up to 60 m
  outdoor area: up to 100 m
• Internal memory: 16 MB
• Light colour: visible LED red
• Compensation light: LED white
• Sensor: CMOS image sensor
• Scan rate: up to 200 scans per second
• Scan angle: 60°
• Surrounding brightness: max. 100000 Lux
• Input voltage: 3.3 V
• Current consumption:
  operation: max. 120 mA
  standby: max. 500 mA
• Operating temperature: -20 °C ~ 60 °C
• Storage temperature: -40 °C ~ 70 °C
• Relative humidity: 5 - 95 % (non condensing)
• Colour: black
• Weight:
  barcode scanner: ca. 146 g
  charging cradle: ca. 118 g
• Dimensions (LxWxH):
  barcode scanner: ca. 16.5 x 8.2 x 6.5 cm
  charging cradle: ca. 12.0 x 9.5 x 8.0 cm
• Cable length without connectors: ca. 1 m
• 2.4 GHz
• Scancodes:
  Codabar
  Code 128
  Code 39
  EAN-8 / EAN-13
  ISBN - 13
  Data Matrix
  PDF417
  QR Code
Package content:

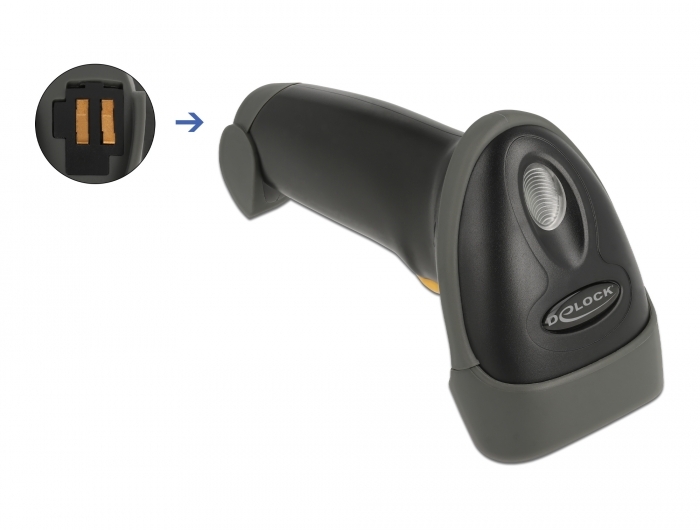

• Barcode scanner
• USB 2.4 GHz charging station

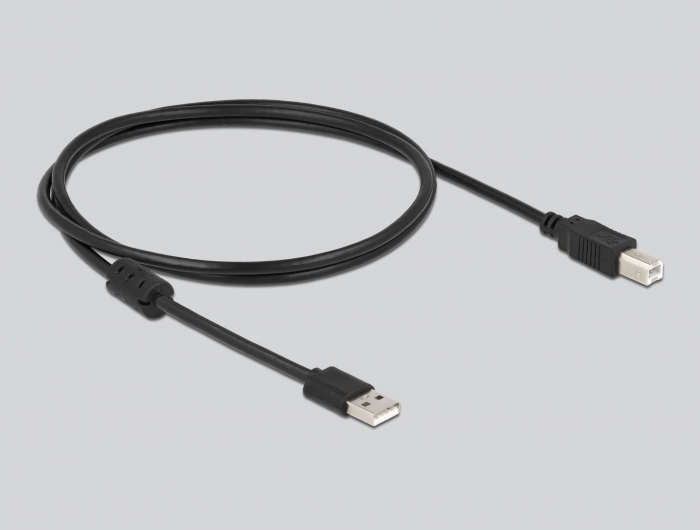

• USB charging cable
• User manual
Data sheet:
http://www.delock.de/produkt/90518/pdf.html?sprache=en
