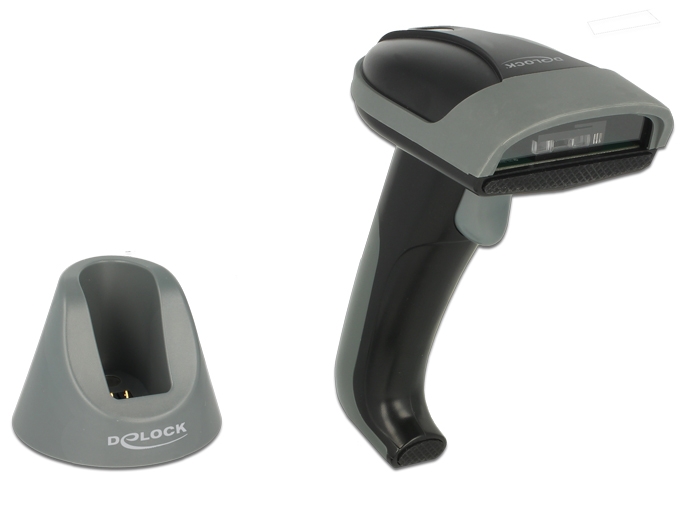

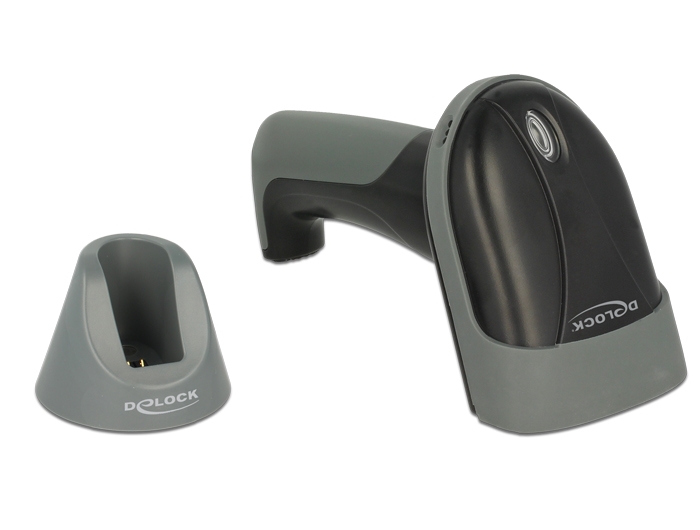

Delock Bluetooth Barcode scanner 1D with charging cradle - Line scanner

DELOCK

90280

New

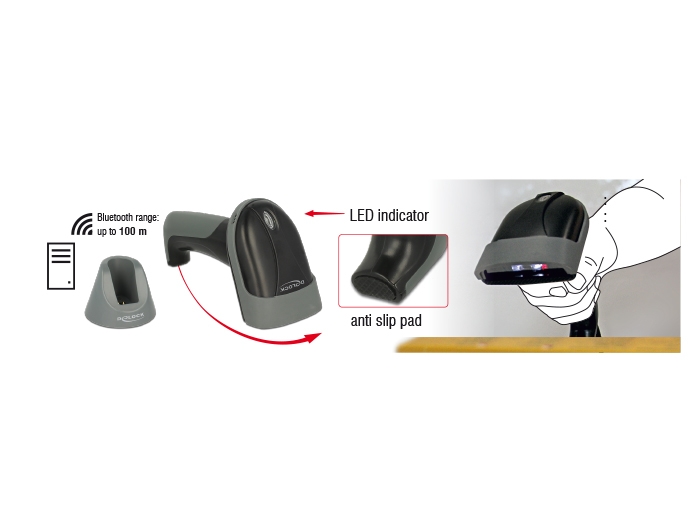

This wireless Bluetooth barcode scanner by Delock can be connected to a PC, smartphone or tablet with Bluetooth interface. With this linear barcode scanner laser class 1 and its linear CMOS image sensor, all common 1D barcode types can be accurately detected even at long distances. Furthermore, this handheld barcode scanner is able to read barcodes shown on displays and monitors. With a full battery charge, this Bluetooth scanner detects up to 25000 Barcodes and has a Bluetooth range of up to 100 m. Its rechargeable battery can be charged with the included cradle or directly with the provided USB cable. The scanner automatically adjusts itself to ambient brightness and captures up to 280 scans in a second under optimal light conditions. With low ambient light the barcode is illuminated by an additional white LED and can be used in low light conditions. Thanks to the used laser technology, the laser light is harmless to the human eye.
System requirements:
• PC, smartphone or tablet with Bluetooth interface
Specification:
• Connector: 1 x USB Type Micro-B female (5 V power supply)
• Resolution: 0.0762 mm
• Trigger: scan button
• Reading distance: ca. 25 mm to 507 mm
• Light source: laser class 1, 650 nm
• Light colour: visible laser red
• Compensation light: LED white
• Sensor: linear CMOS image sensor
• Scan rate: up to 280 scans per second
• Scan angle: 41°
• Surrounding brightness: max. 50000 Lux
• Input voltage: 3.7 V
• Current consumption:
  operation: max. 220 mA
  standby: max. 65 mA
• Bluetooth class: 1
• Bluetooth standard V 2.1 + EDR
• Bluetooth range: up to 100 m
• Rechargeable battery: Lithium battery 3.7 V / 1620 mAh
• Number of scans with a full battery charge: max. 25000 scans
• Operating temperature: 0 °C ~ 40 °C
• Storage temperature: -10 °C ~ 60 °C
• Relative humidity: 0 - 95 % (non condensing)
• Colour: black / grey
• Weight:
  barcode scanner: ca. 164 g
  charging cradle: ca. 238 g
• Dimensions (LxWxH):
  barcode scanner: ca. 156 x 71 x 91 mm
  charging cradle: ca. 80 x 80 x 61 mm
• OS independent, no driver installation necessary
• Scancodes:
  UPC-A / UPC-E
  EAN-8 / EAN-13
  Matrix 2 of 5
  China Postal Code (Toshiba Code)
  Industrial 2 of 5
  Interleaved 2 of 5
  Codabar
  Code 11
  Code 32
  Standard Code 39
  Full ASCII Code 39
  Code 93
  Code 128
  EAN / UCC 128
  MSI Plessey Code
  UK Plessey Code
  Telepen Code
  GS1 Databar
  IATA Code
Package content:
• Barcode scanner

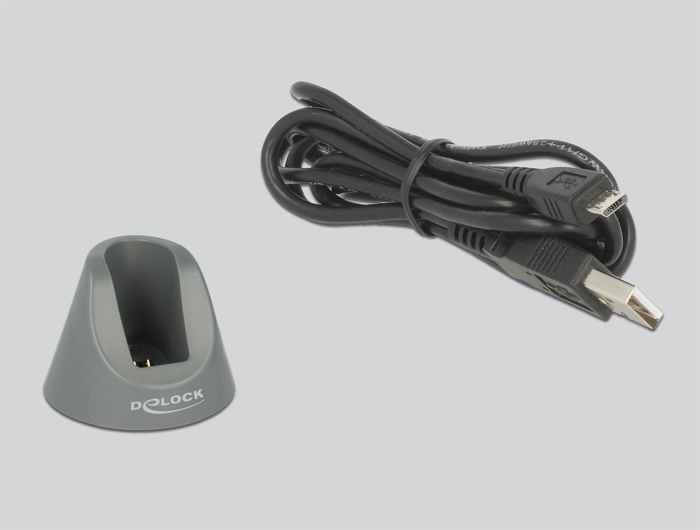

• Charging cradle
• Charging cable USB 2.0 Type Micro-B male to USB Type-A male, length ca. 150 cm
• User manual
Data sheet:
http://www.delock.de/produkt/90280/pdf.html?sprache=en
