Delock Micro USB Barcode Scanner 1D for Android - Line scanner

DELOCK

90281

New

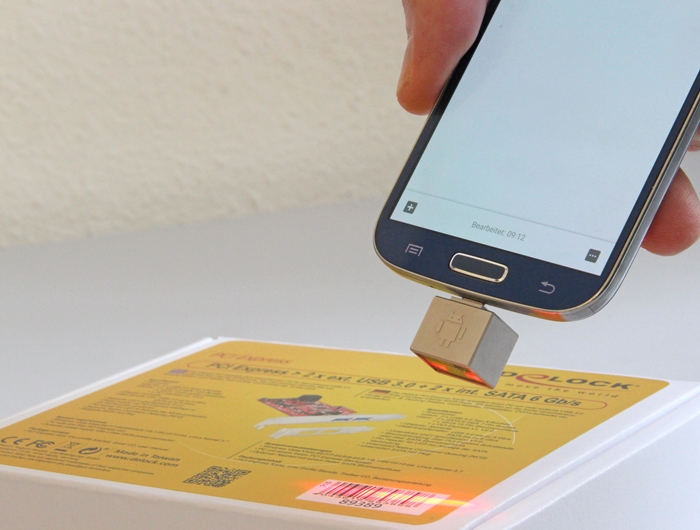

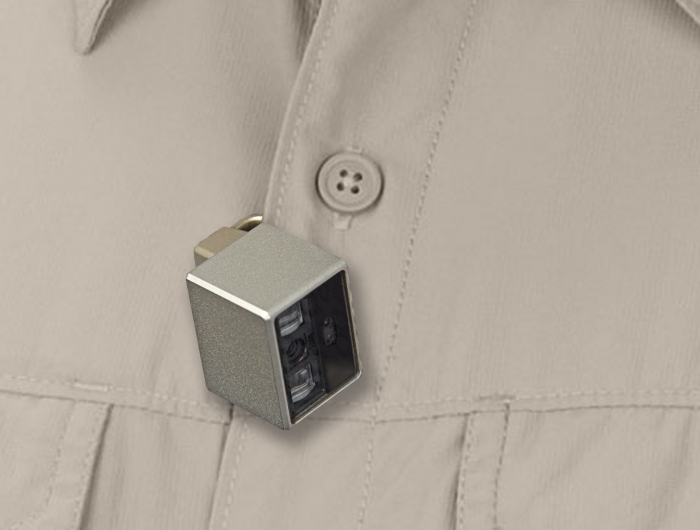

This compact Micro USB Barcode Scanner by Delock can be connected to a free USB Type Micro-B female port on an Android smartphone or tablet. The scanner can be used directly without the installation of additional software and starts automatically. With this linear barcode scanner and its linear CMOS image sensor, all common 1D barcode types can be accurately detected automatically, without using any scan button. Furthermore, this barcode scanner is able to read barcodes shown on displays and monitors. The scanner automatically adjusts itself to ambient brightness and captures up to 650 scans in a second under optimal light conditions. A protective cap not only defends the transportable scanner against dust, but can also be attached conveniently and comfortable to the clothing.

System requirements:
• Android ex 4.1.1
• Android smartphone or tablet with OTG function, HID keyboard and a free USB Type
  Micro-B female port
Specification:

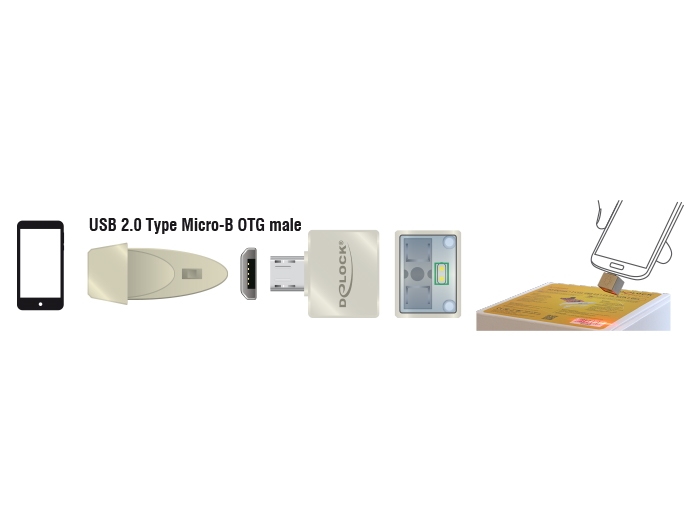

• Connector: 1 x USB 2.0 Type Micro-B OTG male
• Resolution: 0.1 mm
• Trigger: automatic
• Reading distance: ca. 35 mm to 280 mm
• Light source: LED, 625 nm
• Light colour: visible LED red
• Sensor: linear CMOS image sensor
• Scan rate: up to 650 scans per second
• Scan angle: 41°
• Surrounding brightness: max. 100000 Lux
• Input voltage: 5 V
• Current consumption:
  operation: max. 100 mA
  standby: max. 55 mA
• Operating temperature: 0 °C ~ 50 °C
• Storage temperature: -20 °C ~ 60 °C
• Relative humidity: 0 - 95 % (non condensing)
• Colour: gold
• Weight: ca. 6.5 g
• Dimensions (LxWxH): ca. 28.5 x 17.8 x 18.6 mm
• Scancodes:
  UPC-A / UPC-E
  EAN-8 / EAN-13
  Matrix 2 of 5
  China Postal Code (Toshiba Code)
  Industrial 2 of 5
  Interleaved 2 of 5
  Codabar
  Code 11
  Code 32
  Standard Code 39
  Full ASCII Code 39
  Code 93
  Code 128
  EAN / UCC 128
  MSI Plessey Code
  UK Plessey Code
  Telepen Code
  GS1 Databar
  IATA Code
Package content:

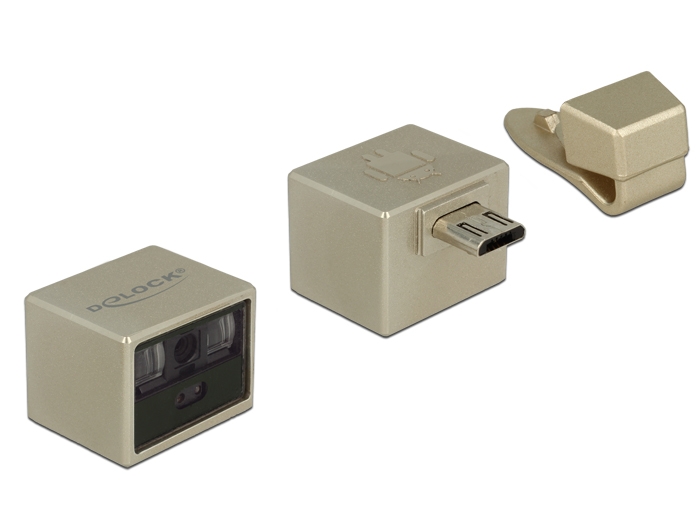

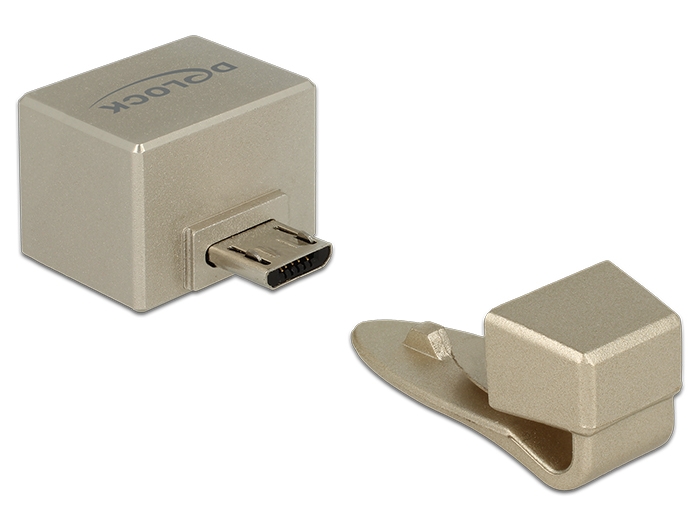

• Barcode scanner with cap and clip
• User manual
Data sheet:
http://www.delock.de/produkt/90281/pdf.html?sprache=en
