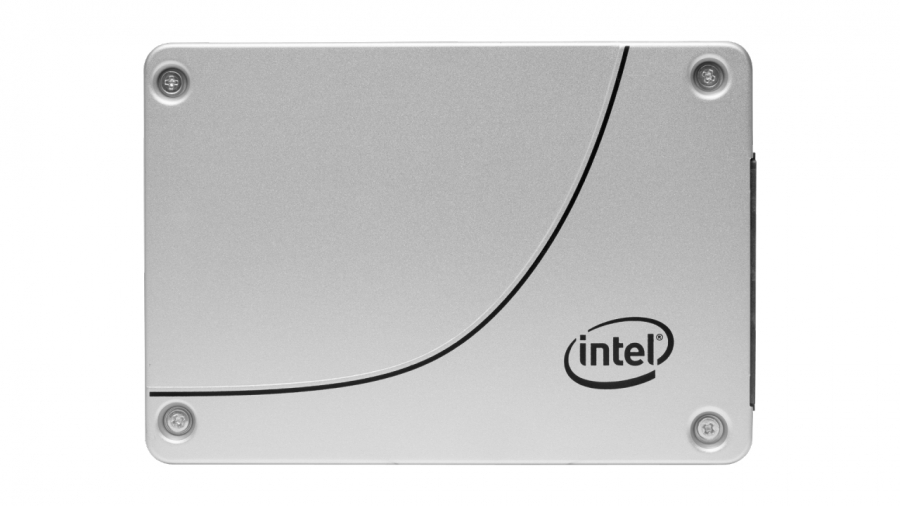

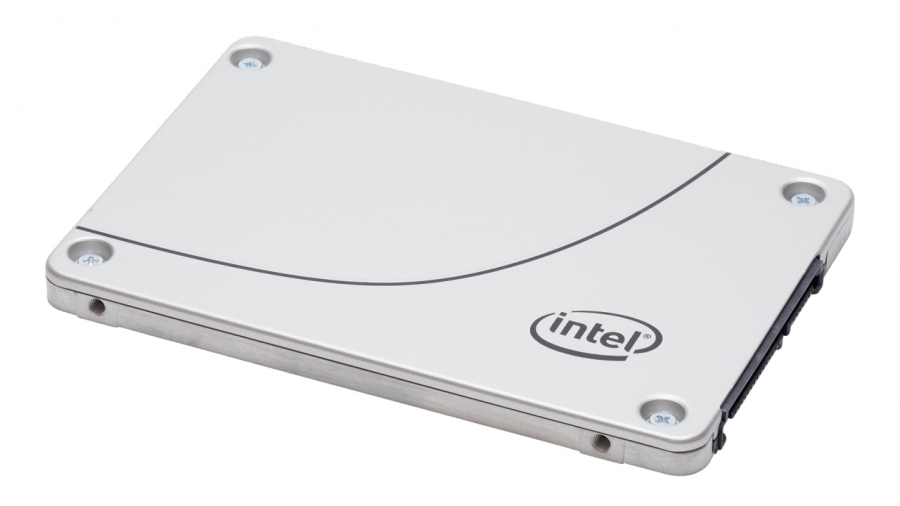

SSD 3.84TB INTEL 2,5" (6.3cm) D3 Serie S4510 SATA3 intern bulk

Manufacturer: Intel

Reference SSDSC2KB038T801

Condition: New

More info

Enhanced Power Loss Data Protection

Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.

Hardware Encryption

Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.

Temperature Monitoring and Logging

Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.

End-to-End Data Protection

End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.

SSD form factor	2.5"
SSD capacity	3.84 TB
Interface	Serial ATA III
Memory type	TLC 3D NAND
NVMe	N
Component for	Server/workstation
Hardware encryption	Y
NAND flash type	TLC (Triple Level Cell)
Security algorithms	256-bit AES
Data transfer rate	6 Gbit/s
Read speed	560 MB/s
Write speed	510 MB/s
Random read (100% span)	97000 IOPS
Random write (100% span)	32000 IOPS
Read latency	36 µs
Write latency	37 µs
End-to-End Data Protection	Y
Enhanced Power Loss Data Protection technology	Y
SSD temperature monitoring	Y
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Mean time between failures (MTBF)	2000000 h
Market segment	Server
SSD ARK ID	134911
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G162706
Power consumption (idle)	1.1 W
Intel High Endurance Technology (HET)	N
Intel® Rapid Start Technology	N
Intel® Remote Secure Erase	N
Intel® Smart Response Technology	N
Intel Smart Response Technology version	Nav
Operating temperature (T-T)	0 - 70 °C
Maximum operating temperature	70 °C
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Operating shock	1000 G
Non-operating shock	1000 G
Harmonized System (HS) code	84717070
Product colour	Silver
Processor family	Intel SSD D3
Temperature monitoring and logging	Y
Operating / non-operating shock	1000 G/0.5 msec
Power consumption (active)	3.6 W
Drive capacity	3.84 TB
Launch date	Q3'18
SSD endurance rating	9.9 PBW
SSD hardware encryption	AES 256 bit
SSD power consumption (active)	3.6W
SSD power consumption (idle)	1.1W
SSD shock	1000 G/0.5 msec
Sequential reading	560 MB/s
Sequential writing speed	510 MB/s
Status	Launched
Last change	63903513
Intel Rapid Start Technology version	Nav
Remote Secure Erase (RSE) technology version	Nav
Product family	Data center SSD
Product series	Intel® SSD D3-S4510 Series
Product codename	Youngsville Refresh
