Delock RS-232/422/485 Loopback adapter with DB9 female

Delock RS-232/422/485 Loopback adapter with DB9 female

DELOCK

66825

New

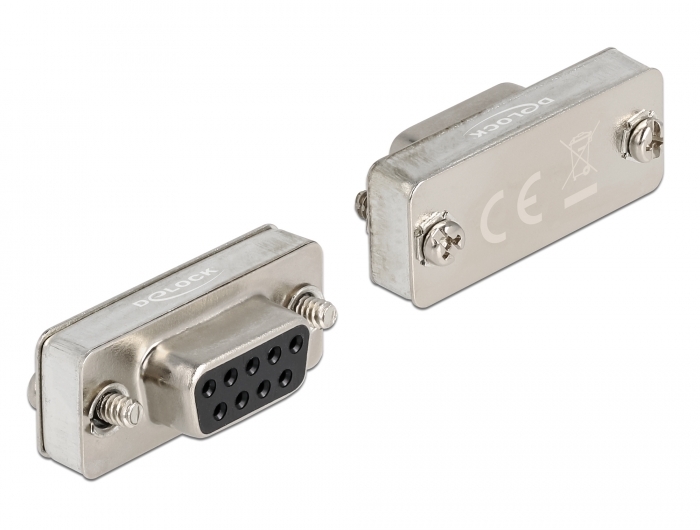

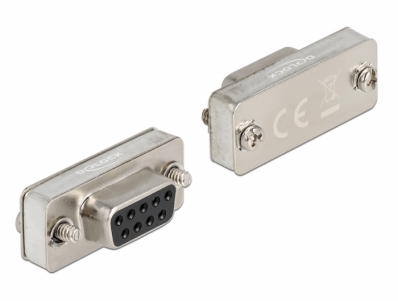

This serial RS-232/422/485 loopback socket from Delock is suitable for error and data analysis and for testing purposes at RS-232/422/485 lines.
System requirements:
• One free RS-232/422/485 DB9 interface
Specification:
• Connector:
  1 x Serial RS-232/422/485 DB9 female with screws

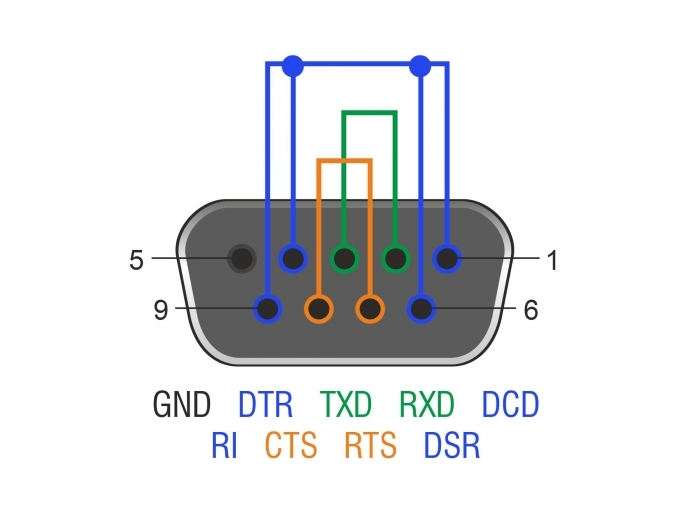

• Pinout:
  RXD (2) - TXD (3)
  RTS (7) - CTS (8)
  DCD (1) - DTR (4) - DSR (6) - Ri (9)
• Screw type: #4-40 UNC
• Colour: silver
• Dimensions (LxWxH): ca. 31.0 x 12.6 x 11.8 mm
Package content:
• RS-232/422/485 DB9 Loopback adapter
Data sheet:
http://www.delock.de/produkt/66825/pdf.html?sprache=en
