Delock RS-232/422/485 Loopback adapter with DB25 female

Delock RS-232/422/485 Loopback adapter with DB25 female

DELOCK

66831

New

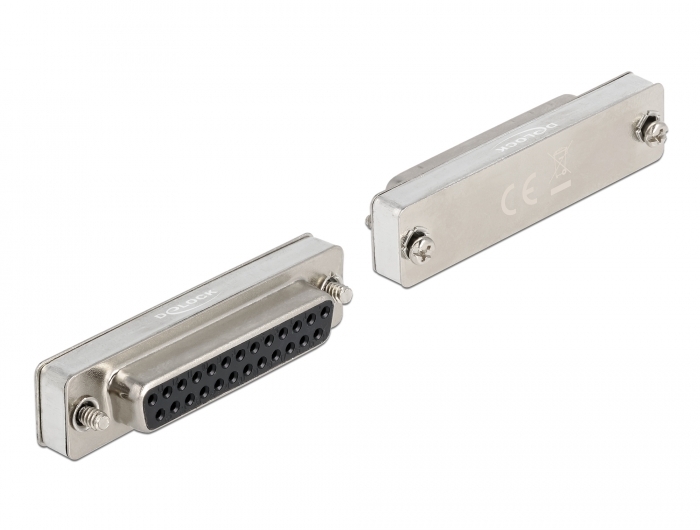

This serial RS-232/422/485 loopback socket by Delock is suitable for error and data analysis und for testing purposes at RS-232/422/485 lines.
System requirements:
• One free RS-232/422/485 DB25 interface
Specification:
• Connector:
  1 x Serial RS-232/422/485 DB25 female with screws

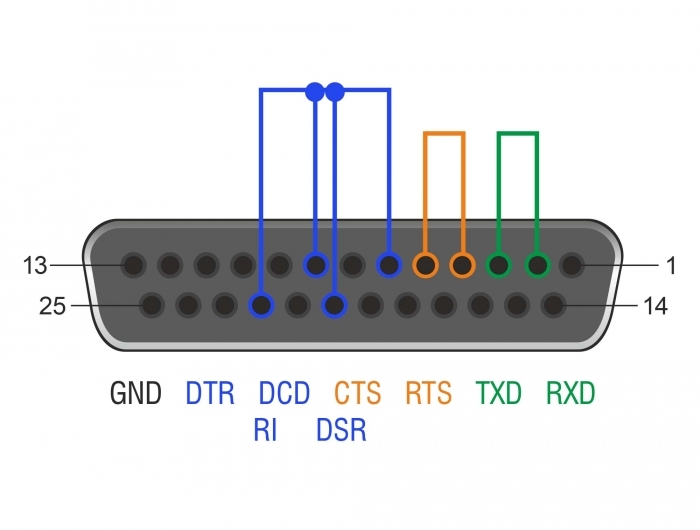

• Pinout:
  RXD (2) - TXD (3)
  RTS (4) - CTS (5)
  DSR (6) - DCD (8) - DTR (20) - RI (22)
• Screw type: #4-40 UNC
• Colour: silver
• Dimensions (LxWxH): ca. 53.3 x 12.6 x 11.8 mm
Package content:
• RS-232/422/485 DB25 Loopback adapter
Data sheet:
http://www.delock.de/produkt/66831/pdf.html?sprache=en
