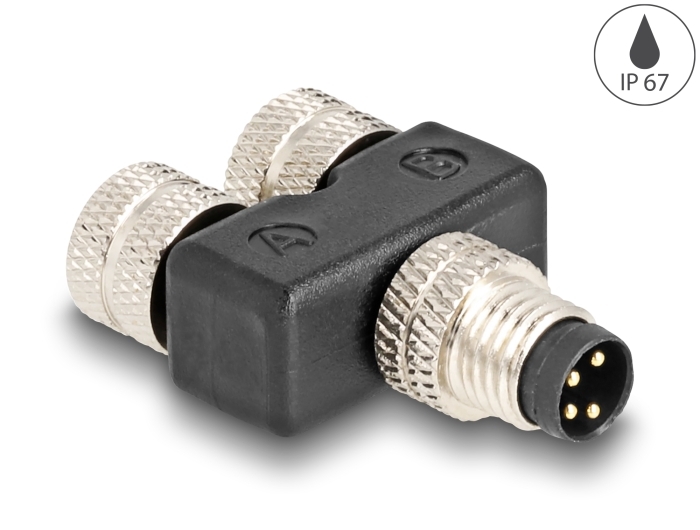

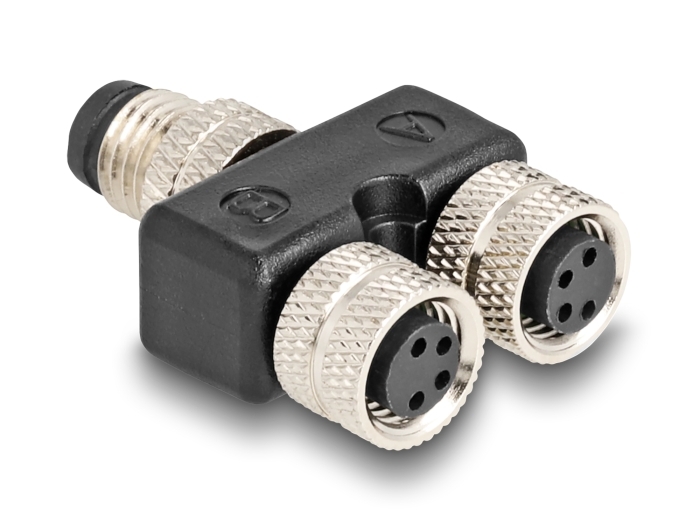

Delock M8 Y-Splitter A-coded 4 pin male to 2 x female parallel connection

Delock M8 Y-Splitter A-coded 4 pin male to 2 x female parallel connection

DELOCK

60577

New

Add to Compare
This industrial Y-splitter by Delock can be used to connect various components with M8 connectors, e.g. for machine control or automation.
System requirements:
• A free M8 female port
• A free M8 plug
Specification:
• Connectors:

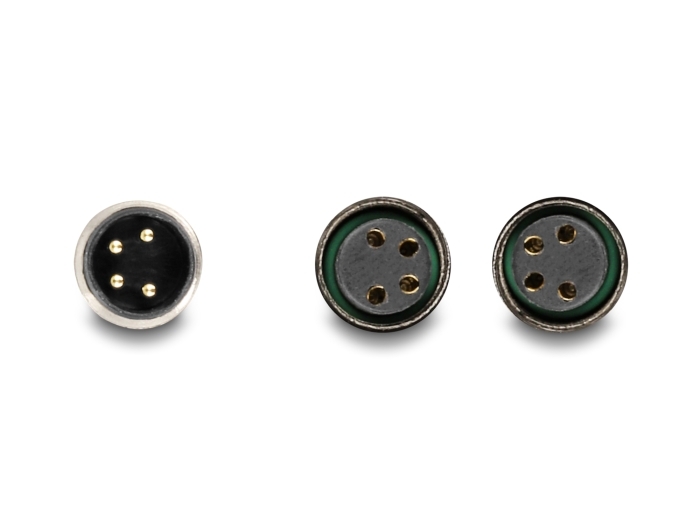

  1 x M8 A-coded 4 pin male
  2 x M8 A-coded 4 pin female
• Housing material: PVC
• Contacts gold-plated
• Operating voltage: max. 60 V
• Current: max. 3 A
• Operating temperature: -25 °C ~ 85 °C
• Protection class: IP67
• Thread size: M8 x 1.0 mm
• Colour: black
• Dimensions (LxWxH): ca. 24 x 22 x 10 mm
Package content:
• Y-splitter
Data sheet:
http://www.delock.de/produkt/60577/pdf.html?sprache=en
